Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | NDBU-95C |
| Part Number | 64008366D |
| Manufacturer | ABB |
| Product Type | DDCS Branching Unit |
| Communication System | ABB DDCS |
| Network Topology | Star connection |
| Optical Branches | 9 outputs |
| Communication Rate | 10 Mbps |
| Transmission Medium | Fiber optic |
| Primary Application | ABB drive communication |
| Typical Drive Platforms | ACS800 / DCS800 family |
| Mounting/Application | Drive cabinet communication hardware |
ABB identifies the NDBU-95C as a DDCS Branching Unit with a nine-output star connection, with the catalog description specifying nine 10 Mbps outputs.
The 64008366D designation is important when replacing older hardware. Some references show the shorter ABB product identifier 64008366, while the physical unit may carry the full 64008366D designation. Match the complete nameplate and revision before approving a replacement.
Product Introduction
The ABB NDBU-95C 64008366D is a fiber-optic DDCS branching unit used to distribute ABB drive communication from a source connection to multiple downstream nodes. Its nine-branch star architecture is intended for drive-system communication rather than conventional PLC I/O, Ethernet switching, or fieldbus conversion.
For maintenance engineers, the main value is preserving the original optical communication topology in legacy ABB drive cabinets. The unit is particularly relevant where multiple converter or drive nodes depend on a centralized DDCS connection. Treating it as a generic fiber Ethernet switch would be a serious compatibility error.

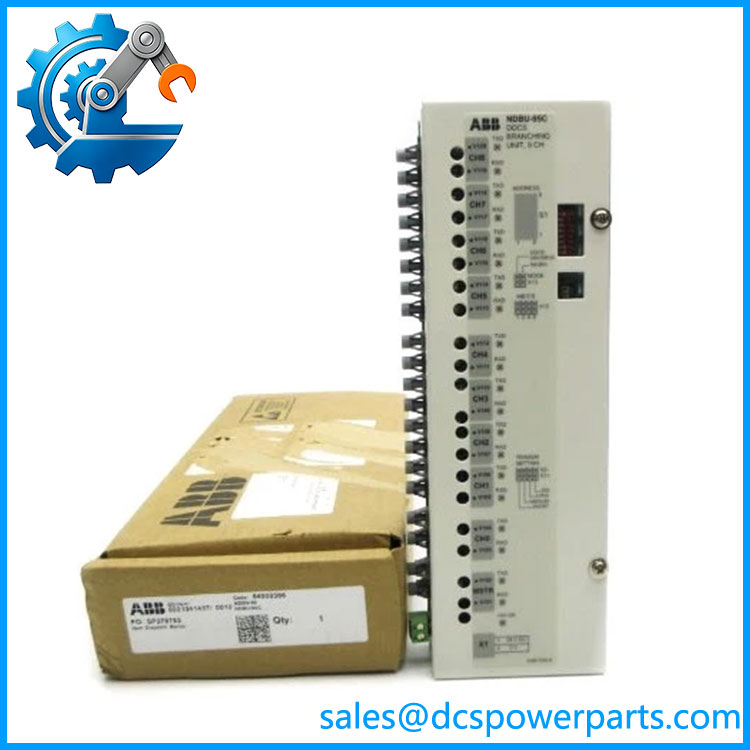

NDBU-95C 64008366D
Application Scenarios & Field Pitfalls
Engineering Pain Point
Legacy ABB drive systems can contain several interconnected control and converter nodes using DDCS optical links. When the branching unit fails, the problem may appear as multiple communication faults even though the individual drive control boards remain functional. Replacing the branch hardware with a standard Ethernet or generic fiber switch will not solve the problem because DDCS is a different communication architecture.
Typical Applications
- ABB ACS800 multi-drive systems — distributing DDCS communication among multiple drive-related nodes.
- ABB DCS800 installations — maintaining optical communication paths between drive-control equipment.
- Multi-drive industrial cabinets — star distribution where one DDCS source must communicate with several downstream devices.
- Legacy production lines — maintaining existing fiber-based ABB drive networks without redesigning the control architecture.
Several secondary references specifically associate the NDBU-95C with ACS800 and DCS800 drive platforms.
Technical Pitfalls to Avoid
- Do not confuse DDCS with Ethernet. One secondary listing incorrectly describes the NDBU-95C as a PROFIBUS DP device. That description conflicts with ABB’s catalog identification of the unit as a DDCS branching unit.
- Verify the fiber arrangement. The NDBU-95C is an optical branching device, so fiber type, connectors, link routing, and connected ABB nodes should be checked before replacement.
- Match the complete part designation. Confirm / 64008366D, not simply “NDBU-95,” because related NDBU variants exist and should not be assumed interchangeable.
- Check the cabinet topology before power-up. Photographing or documenting each optical connection before removing the failed unit is a simple way to prevent swapped DDCS branches during maintenance.
Related Products
- NDBU-85C — Related ABB DDCS branching-unit variant; verify branch count and exact system compatibility before substitution.
- NDBU-95 — Same NDBU family designation associated with the nine-output DDCS star-connection architecture; confirm exact revision.
- — Related part reference appearing with 64008366D in legacy equipment listings; do not assume identical configuration without nameplate verification.
- ACS800 — ABB drive family in which NDBU branching hardware is commonly encountered.
- DCS800 — ABB DC-drive family associated with applications.
- NTAC-02 — ABB pulse-encoder interface module; handles motor feedback rather than DDCS branching.
- NIOC-01 — ABB drive I/O/control interface hardware; different function from the optical DDCS branch unit.
- NDIO-01 — ABB drive digital I/O interface; not a substitute for DDCS optical distribution.
Procurement Check
For a replacement, specify ABB 64008366D exactly and record the host drive model, optical connector arrangement, number of active branches, and cabinet topology. Do not approve a substitute based only on “9-port fiber module” or physical similarity. The communication protocol and optical architecture are the critical compatibility points.
