Description
Key Technical Specifications
- Product Model: NBIO-31
- ABB Part Number: 3BSE011337R1
- Manufacturer: ABB
- Product Type: Digital I/O Unit
- Digital Inputs: 4
- Digital Outputs: 3
- Primary Application: ABB industrial drive/control equipment
- System Role: Field signal interface
- Installation: Compatible ABB drive/control assembly
- Condition: Verify actual unit condition and revision before purchase
Available product references specifically identify NBIO-31 / 3BSE011337R1 as an ABB I/O Unit, with one detailed listing specifying four digital inputs and three digital outputs.
Be careful with published specifications. Some secondary listings attribute unsupported Ethernet/IP, Modbus, 16-input/16-output configurations, or general-purpose PLC functions to this part number. Those claims conflict with the more specific NBIO-31 identification as a 4DI/3DO I/O unit, so they should not be used for engineering substitution decisions.
Application Scenarios & Pain Points
A drive cabinet can remain powered while a single permissive input disappears. That is why I/O-board failures are often diagnosed incorrectly as drive-control or software problems.
- Drive interlocking: The digital inputs can be used for discrete machine conditions, permissives, or external status signals within the supported ABB architecture.
- Drive command interface: The digital outputs provide discrete signals toward associated control circuitry, depending on the host system’s assigned I/O functions.
- Legacy ABB drive maintenance: The NBIO-31 is relevant where an existing ABB installation uses the original N-series hardware and an exact replacement is required.
- Emergency spare inventory: Keeping a tested spare can reduce troubleshooting time when a discrete signal path suddenly disappears.
Field note: Before condemning the NBIO-31, trace the actual signal from the field terminal to the board. A loose connector or damaged cable can produce exactly the same symptom as a dead input channel.

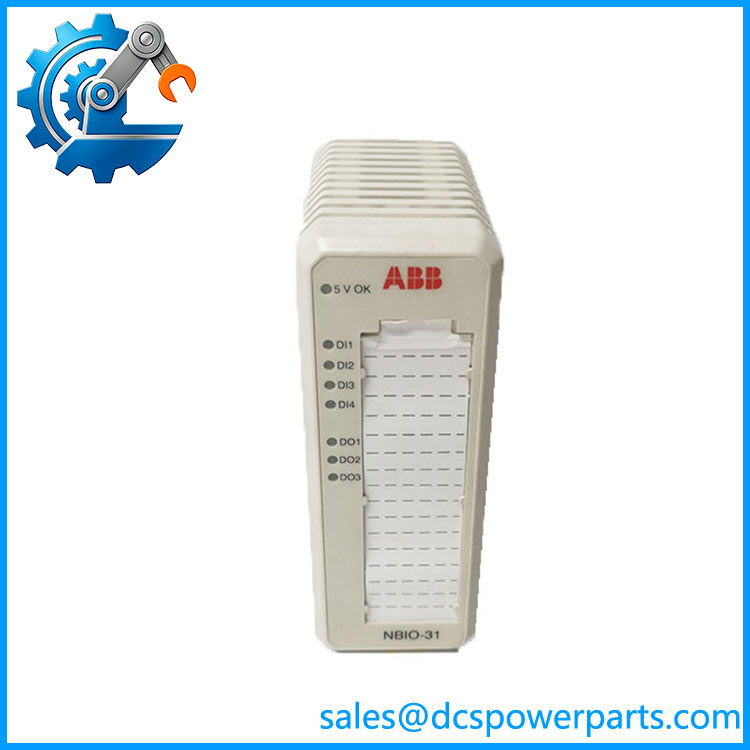

NBIO-31 3BSE011337R1
Related Products
- ABB NBIO-31 3BSE011337R1 — The exact replacement reference for the subject unit. Use the complete part number when sourcing.
- ABB NAMC-11 3BSE015488R1 — A control board rather than a simple I/O unit. It belongs to the same broader ABB drive-electronics ecosystem but performs substantially more system-level control functions.
- ABB NDCU-11 — Drive Control Unit used in ABB drive architectures. It is a controller-level component and should not be treated as an substitute.
- ABB NDIO-01 — Digital input/output extension associated with ABB drive systems. Its function is closer to the concept, but the electrical interface and application must be checked before substitution.
- ABB NDIO-02 — Another digital I/O extension in the ABB drive hardware family. Compare channel configuration and host-system compatibility rather than relying on the shared “NDIO/NBIO” naming.
- ABB NBIM-01 — Bus interface module. It handles a different layer of the system, making it complementary in some architectures but not a replacement for .
- ABB NBRA-653 — Braking chopper unit. This is a power-stage accessory rather than an I/O component and may appear in the same drive system where braking energy management is required.
- ABB NDBU-95 — DDCS branching unit. It provides communication-path distribution rather than discrete field I/O and therefore addresses a completely different fault category.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do not assume is a generic PLC I/O card.
The available references identify it as an ABB I/O unit associated with drive hardware. Host-system compatibility needs to be established before installation.
⚠️ Verify the 4DI/3DO configuration.
A supplier description claiming 16 inputs and 16 outputs should not be accepted without supporting ABB documentation. The more specific product reference identifies the as 4 digital inputs and 3 digital outputs.
⚠️ Check the exact board revision and connector arrangement.
ABB drive electronics frequently contain visually similar boards with different functions. Photograph the installed board, connector labels, and complete identification sticker before ordering.
Practical check: Record every connected I/O point before removal. Mark input/output terminals, verify the host drive type, inspect connector pins for oxidation or bent contacts, and compare the replacement’s complete identification label against the removed unit.
Frequently Asked Questions (FAQ)
What is ABB 3BSE011337R1?
The ABB 3BSE011337R1 is an I/O Unit used in ABB industrial drive/control hardware. A detailed product reference identifies it as having four digital inputs and three digital outputs.
How many I/O channels does have?
The available specific listing identifies 4 digital inputs and 3 digital outputs, for seven discrete channels in total.
Is a communication module?
It should not be specified as a general communication module. Some secondary listings use that terminology, but the more specific references identify as an I/O Unit.
Can I replace with another ABB digital I/O module?
Not automatically. The number of channels is only one compatibility criterion. Check the host drive, connector pinout, electrical signal levels, I/O assignment, board revision, and system documentation before approving a substitution.
What should I verify when purchasing a used ?
Ask for a photograph showing the complete / 3BSE011337R1 identification, plus the connector and board condition. For a critical spare, request functional testing of all four inputs and three outputs rather than accepting a basic power-up test.
What are the most common replacement risks?
The main risks are incorrect host-drive compatibility, wrong I/O assignment, connector mismatch, and accepting an incorrectly described part. In particular, do not rely on generic specifications copied from unrelated ABB I/O modules.
