Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | LTC391AE01 / LT C391 AE01 |
| Part Number | HIEE401782R0001 |
| Product Family | ACS6000 |
| Product Type | Low Voltage Gate / Gate Driver Board |
| Primary Function | Power-semiconductor gate-control interface |
| Application | ABB ACS6000 medium-voltage drives |
| Power Stage Interface | IGBT gate-control circuitry |
| Isolation | High-voltage isolation between control and gate-drive sections |
| Fault Monitoring | Gate/power-stage fault monitoring |
| Mounting | Drive control/power-electronics cabinet |
| Typical Role | Interface between control electronics and semiconductor gate units |
A number of online listings provide conflicting specifications for this part, including claims that it is a communication module, excitation-system terminal controller, or S800 I/O module. Those descriptions do not agree with the stronger ACS6000-specific identification. The part is repeatedly cataloged as LT C391 AE01 / LOW VOLTAGE GATE within ACS6000 spare-part lists.
One field-service reference describes the hardware as an IGBT gate-control/interface board and gives detailed electrical figures, including 24 VDC supply and high-voltage isolation. Because those figures are not corroborated by an ABB primary technical document located in this search, they should be treated as field-reference data rather than guaranteed nameplate specifications.

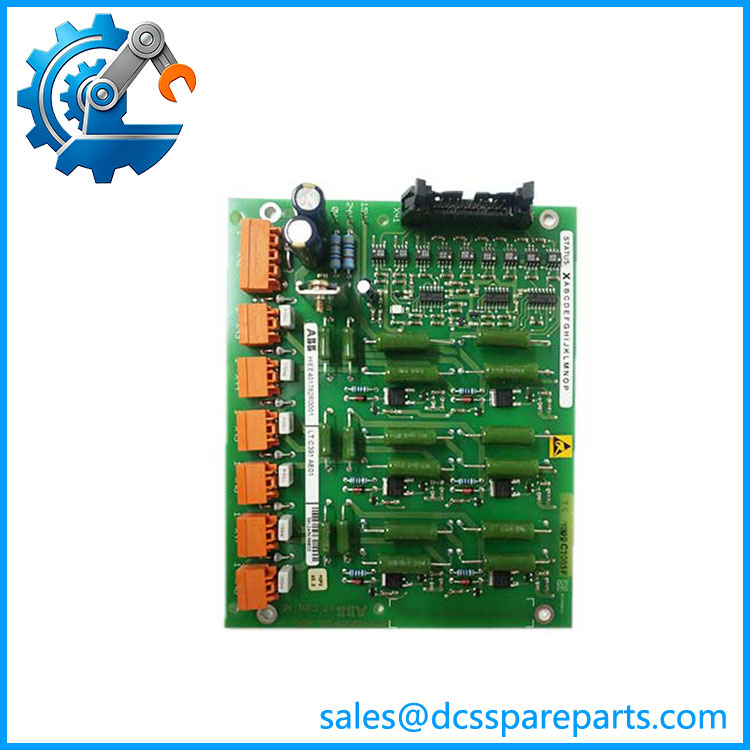

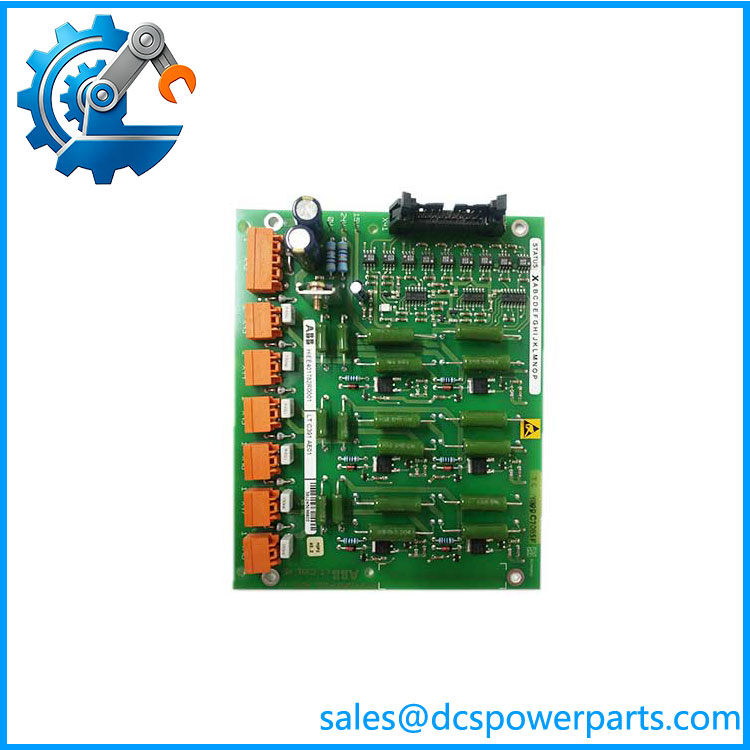

LTC391AE01
Application Scenarios & Pain Points
A failed gate interface can create ugly symptoms: inverter overcurrent, missing gate pulses, semiconductor faults, or a drive that refuses to start. The temptation is to blame the IGBT stack immediately. That can be an expensive mistake.
Typical Applications
- ACS6000 Medium-Voltage Drives: LT C391 AE01 is listed as an ACS6000 Low Voltage Gate component and forms part of the drive’s semiconductor-control architecture.
- Large Motor Drives: The board is relevant to high-power variable-frequency drive systems where isolated gate control is required between low-voltage control electronics and the medium-voltage power stage.
- Industrial Pump and Fan Drives: installations can be found in large process-drive applications where a gate-control fault can immediately produce a drive trip.
- Planned Overhauls: Keeping the exact LT C391 AE01 available can be useful when a semiconductor section is being inspected or repaired during a scheduled outage.
Field Case:
A drive showing repeated inverter faults may tempt a technician to replace an IGBT module first. A better sequence is to verify the DC bus, gate-enable command, gate-drive supply, fault feedback, and gate-unit signals. If the semiconductor hardware checks out but the gate-control path is abnormal, the LTC391AE01 becomes a much stronger suspect.
Related Products
- ABB UAC389AE02 HIEE300888R0002 — Pulse amplifier/interface board used within the power-electronics control architecture. It is closely related to gate-control circuitry but performs a different interface function; do not substitute it for LTC391AE01.
- ABB UAC383AE01 HIEE300890R0001 — Measurement-unit board used in systems. It handles measurement functions rather than acting as the low-voltage gate interface.
- ABB 3BHB003041R0101 / 3BHB000272R0101 UF C719 AE101 — I/O control/interface board for . It belongs farther upstream in the control architecture and should not be confused with the gate board.
- ABB 3BHE024855R0101 UFC921A101 — INT-2 interface board used in systems. It performs system interface functions rather than direct gate control.
- ABB 3BHE006373R0101 XVC769AE101 — Coated OEI board associated with the control architecture. It is a complementary control component rather than a replacement for LT C391 AE01.
- ABB 3BHB007211R0101 XVC768AE101 — Current-measurement scaling hardware. Its measurement role is fundamentally different from the gate-drive function of LTC391AE01.
- ABB 3BHB007209R0102 XVC767AE102 — Voltage-measurement scaling board. It provides voltage measurement/scaling rather than semiconductor gate control.
- ABB 3BHL000385P0101 5SHX0845F0001 — IGCT power semiconductor used in applicable ABB medium-voltage converter architectures. This is a power-stage device, not an electronic gate-control board.
