Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | LDMUI-01 |
| ABB Part Number | 61320946C |
| Manufacturer | ABB |
| Product Family | LD / LDMU |
| Product Type | Interface module |
| Primary Application | ABB legacy power-converter / drive control |
| Module Function | Control and signal interface |
| Installation | Host-system specific |
| Field I/O Details | Not reliably confirmed |
| Communication Protocol | Not reliably confirmed |
| Supply Voltage | Not reliably confirmed |
| Operating Temperature | Not reliably confirmed |
| Status | Legacy / obsolete |
Available parts references consistently associate LDMUI-01 61320946C with ABB legacy industrial control hardware and describe it as an interface/I/O-related module. It also appears alongside SCYC51213, SCYC51220, LDMTR-01, LDSTA-01, PPC907BE, and UFC-series converter components.
Specification caution
There is a significant amount of unreliable specification copying around this part. One reseller describes LDMUI-01 as a universal I/O processor with 24 VDC digital inputs, 4–20 mA/0–10 V analog channels, RTD/thermocouple inputs, relay outputs, 1500 VAC isolation, and 12–16-bit resolution. Those claims are not supported by a sufficiently authoritative ABB document, so they should not be published as guaranteed specifications for 61320946C.
Other sources simply identify it as an interface module, which is the safer technical classification.

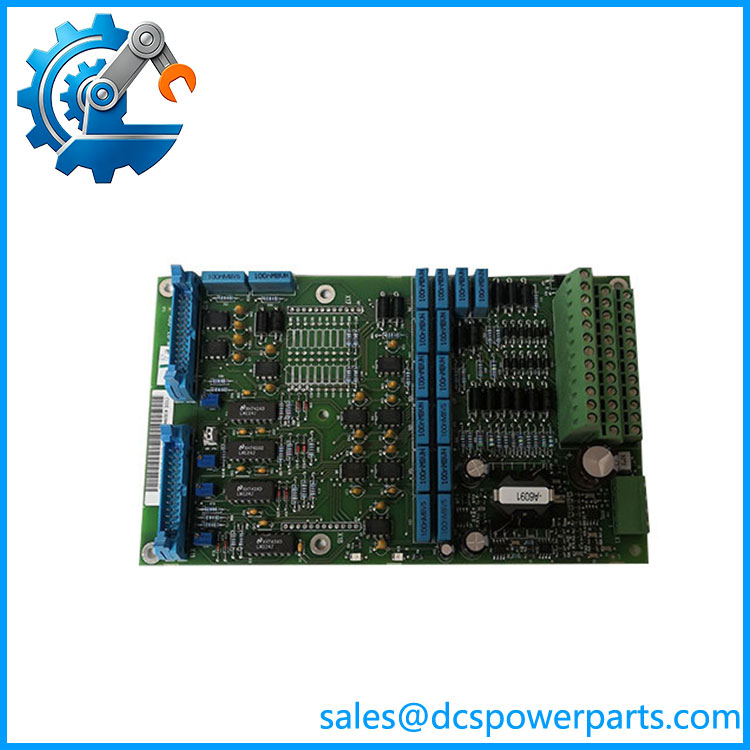

LDMUI-01 61320946C
Product Introduction
The ABB LDMUI-01 61320946C is a legacy interface module associated with ABB’s LD-series power-conversion and industrial control hardware. Its role is best treated as a system-specific interface between control electronics and the surrounding converter circuitry rather than as a generic PLC analog or digital I/O module. Parts references place it within the same legacy ABB converter ecosystem as several firing, pulse-amplifier, controller, and processor boards.
For maintenance teams, exact identification matters more than a generic functional description. Public information for 61320946C is limited and some reseller pages assign contradictory I/O and power specifications to the board. For a replacement, the LDMUI-01 designation, 61320946C suffix, host converter, PCB revision, connector arrangement, and cabinet position should all be checked before installation.
Application Scenarios & Field Pitfalls
Engineering Pain Point
The main maintenance risk is treating LDMUI-01 as a standard multifunction I/O card. In an older ABB converter, an interface board may have a very specific electrical relationship with the processor, firing, measurement, and protection circuits. A superficially similar I/O module can therefore be electrically unsuitable.
Typical Applications
- ABB legacy power converters requiring replacement interface electronics.
- Industrial drive systems where the original LD-series control architecture remains in service.
- Power-electronics maintenance involving obsolete ABB control and interface boards.
- Converter cabinet restoration where the original board-level configuration must be preserved.
Technical Pitfalls to Avoid
- Do not assume it is a universal analog/digital I/O module. Online descriptions vary considerably, while the stronger references identify as an interface module.
- Do not publish unverified channel specifications. Claims for 24 VDC DI, 4–20 mA AI, RTD/TC inputs, relay outputs, or 1500 VAC isolation should be treated as unconfirmed for this exact revision.
- Retain the “C” suffix. Order 61320946C, not simply “61320946,” because legacy ABB PCB revisions can have different hardware configurations.
- Check the surrounding converter architecture. appears in references alongside firing-unit and pulse-amplifier hardware such as SCYC51213 and SCYC51220. This means the host converter and neighboring boards are useful identifiers when validating a replacement.
Related Products
- SCYC51213 — 63911607C — Legacy ABB firing/trigger unit used in converter control; different function from .
- SCYC51220 — 63901075C — Pulse amplifier associated with the same broader ABB power-converter hardware family.
- SCYC51204 — 63912476C — Transient absorber module used in related legacy converter circuitry; not a substitute for .
- LDMTR-01 — 63940135F — Related legacy ABB I/O hardware; function differs from the LDMUI interface module.
- LDSTA-01 — 63940143B — High-performance controller used in related ABB converter architectures.
- PPC907BE — 3BHE024577R0101 — ABB processor/control module appearing in the same broader converter component group.
- UFC911B106 — 3BHE037864R0106 — ABB power-converter control hardware from a related legacy electronics family.
- UFC921A101 — 3BHE024855R0101 — Related ABB converter control board requiring application-specific compatibility verification.
Procurement Check
For ABB 61320946C, the safest procurement description is:
ABB , 61320946C, legacy LD-series interface module.
Before approving a replacement, verify the complete part number, PCB revision, host ABB converter, cabinet location, mating connectors, and adjacent SCYC/LDM/UFC control boards.
I would not approve this part based solely on a listing claiming “multifunction I/O module” or quoting generic 24 VDC / 4–20 mA specifications. The available evidence supports the interface-module identification, but not those detailed electrical specifications.
