Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | UNS3670A-Z V2 |
| Order Number | HIEE205011R0002 |
| Product Type | Converter Electronics Module |
| System Family | ABB UNITROL P |
| Function | Thyristor converter control electronics |
| Application | Excitation control systems |
| Compatible System | UNITROL P excitation equipment |
| Signal Processing | Analog/digital control signal processing |
| Control Interface | ABB proprietary excitation system interface |
| Mounting | Excitation cabinet rack/module assembly |
| Cooling Method | Cabinet forced air cooling |
| Operating Environment | Industrial power control environment |
| Installation Type | Modular electronic assembly |
| Replacement Category | Excitation system spare part |
Product Introduction
ABB UNS3670A-Z V2 HIEE205011R0002 Overview
The ABB UNS3670A-Z V2 HIEE205011R0002 is a converter electronics module used in ABB UNITROL P excitation systems for synchronous generators and large rotating electrical machines. It is part of the electronic control section responsible for managing converter operation, processing feedback signals, and supporting stable excitation control performance.
The ABB UNS3670A-Z V2 HIEE205011R0002 works together with other UNITROL P components, including processing units, gate control units, power modules, and measuring interfaces. Within the excitation cabinet architecture, the converter electronics module provides the control interface required for reliable operation of the thyristor-based power converter stage.
The ABB UNS3670A-Z V2 is typically found in generator excitation installations where accurate field current regulation is required to maintain generator voltage stability under changing operating conditions. These systems are commonly installed in power generation plants, industrial energy facilities, and large rotating equipment applications.
The ABB UNS3670A-Z V2 HIEE205011R0002 is not a standalone controller. It operates as part of a complete excitation system, meaning replacement requires verification of the UNITROL configuration, firmware compatibility, hardware revision, parameter settings, and related control boards.
For field replacement, engineers should confirm the exact excitation cabinet design, converter configuration, and installed spare part identification. A physically matching board may still require configuration checks before returning the generator system to service.

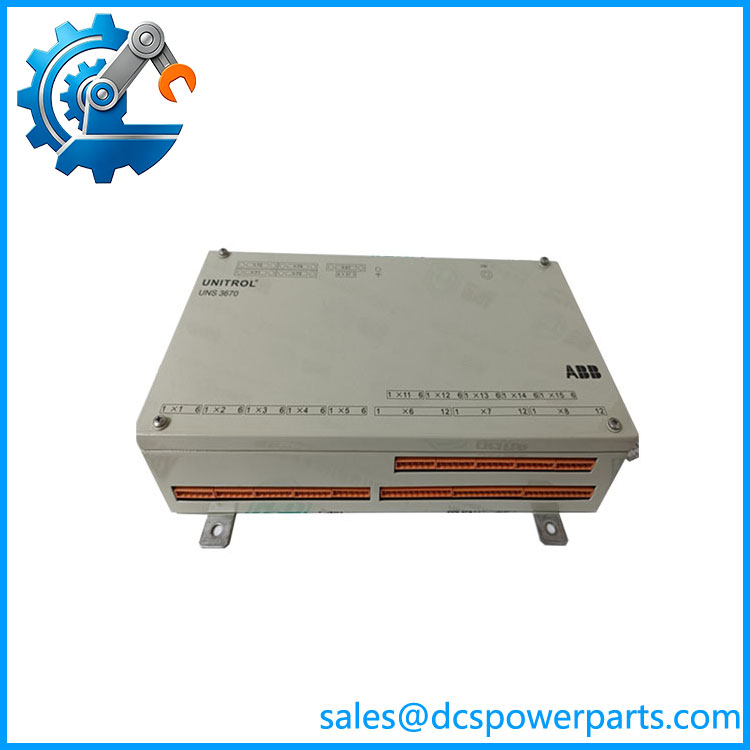

UNS3670A-Z V2 HIEE205011R0002
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A generator excitation system shows unstable voltage regulation, converter alarms, or unexpected field current behavior. The converter electronics module may be suspected, but excitation faults can also originate from gate control circuits, measuring interfaces, power sections, or generator-side conditions.
Recommended troubleshooting sequence:
- Review UNITROL diagnostic messages
- Check converter and gate control status
- Verify excitation feedback signals
- Inspect power supply rails
- Confirm parameter consistency
- Check communication between control boards
The ABB V2 HIEE205011R0002 manages converter control functions, but the complete excitation chain determines system performance.
Typical Applications
Power Generation Systems
Used for:
- Generator excitation regulation
- Voltage stabilization
- Reactive power control
- Grid-connected generator operation
Industrial Power Plants
Applied in:
- Steam turbine generators
- Hydro generators
- Gas turbine generator systems
Large Motor Excitation
Used for:
- Synchronous motor field control
- Industrial drive systems
- High-power rotating equipment
Technical Pitfalls to Avoid
1. Verify Exact UNITROL Compatibility
Before replacement, confirm:
- UNITROL system type
- Cabinet configuration
- Converter rating
- Board revision
Different excitation generations may use similar-looking electronics with different functions.
2. Check Associated Control Boards
The V2 operates with other excitation components. Verify:
- Processing unit compatibility
- Gate control unit type
- Measuring interface version
- I/O configuration
3. Preserve Existing Parameters
Before removing the module, document:
- Excitation settings
- Calibration values
- Protection parameters
- System configuration
Restoring hardware without matching settings may result in incorrect generator behavior.
4. Inspect Environmental Conditions
Check:
- Cabinet temperature
- Cooling fans
- Dust contamination
- Power supply quality
Electronic converter boards are sensitive to long-term thermal stress and electrical disturbances.
