Description
ABB GFD563A102 3BHE046836R0102 | LCI Converter Interface | AC 800PEC
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | GF D563 A102 |
| Part Number | 3BHE046836R0102 |
| Product Function | LCI Converter Interface |
| Interface Designation | LIN |
| System Family | AC 800PEC |
| Application | Load Commutated Inverter (LCI) converter control |
| Previous Product ID | 3BHE022294R0102 |
| Product Type | ABB AC 800PEC-related interface module |
| Exact I/O / Electrical Ratings | Configuration-dependent; verify against system documentation |
Technical note: ABB-indexed catalog information gives the product designation and function but does not establish generic voltage, current, IP rating, processor, or communication specifications for this exact part number. Several secondary listings publish conflicting values, so those figures should not be used for procurement or replacement without checking the module label and project documentation.
Product Introduction
The ABB 3BHE046836R0102 is identified by ABB as GF D563 A102: LCI Conv. Interface (LIN). It belongs to the ABB high-performance control ecosystem used for power-electronics applications and is associated with Load Commutated Inverter systems. The module should therefore be treated as a dedicated converter interface rather than a generic PLC communication card.
For plants maintaining ABB power-converter or excitation equipment, the specific hardware revision matters. ABB records show 3BHE022294R0102 as the replaced product ID, making the particularly relevant when maintaining an installed legacy configuration. Replacement should still be based on the complete control-system configuration, firmware requirements, connector arrangement, and associated AC 800PEC hardware rather than part-number similarity alone.

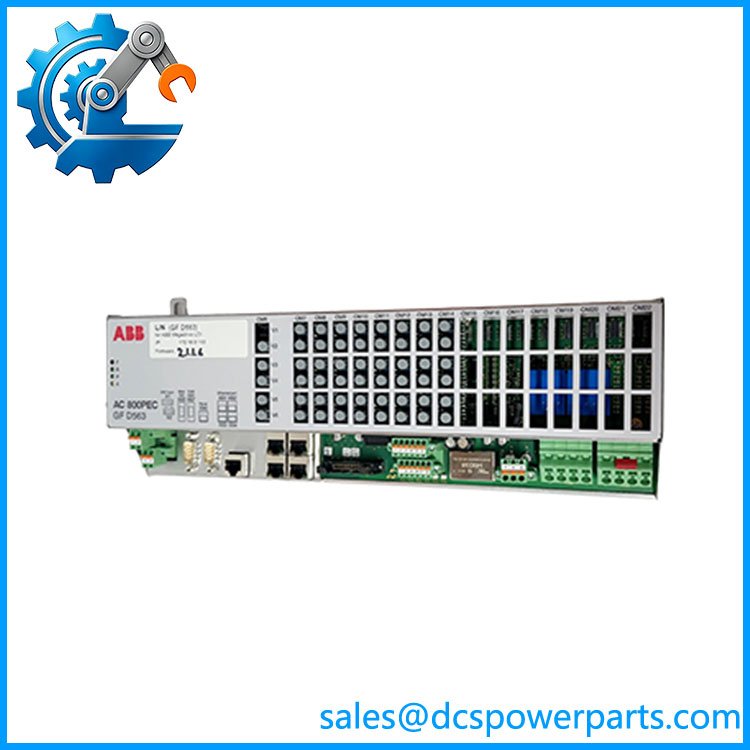

3BHE046836R0102 GFD563A102
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A common problem with legacy LCI and power-electronics equipment is that a failed interface board can stop an otherwise serviceable converter system. The difficulty is rarely just finding a board with the same model number; the real issue is confirming the exact hardware revision and ensuring that the replacement belongs to the same LCI control architecture. The ABB 3BHE046836R0102 is a specialized interface, so treating it as a general-purpose I/O or communication module can lead to an incorrect replacement.
Typical Applications
- Large synchronous motor LCI drives — interface hardware within high-power load-commutated inverter control systems.
- Industrial power converters — applications requiring dedicated converter-control interfaces.
- Generator and excitation-related power electronics — where ABB high-performance control hardware is integrated with converter equipment.
- Legacy AC 800PEC installations — maintenance, control-system repair, and spare-parts replacement.
Technical Pitfalls to Avoid
- Do not substitute by appearance alone. GFD563A101, , and other D563 variants may look closely related while having different hardware or application configurations. Confirm the complete ABB article number before installation.
- Check the superseded part carefully. ABB-indexed information identifies 3BHE022294R0102 as the replaced product ID. This is useful when searching legacy documentation, but it does not automatically mean that every system using the older article can accept the newer unit without configuration checks.
- Do not rely on generic reseller specifications. Public listings variously describe this part as a PLC communication module, excitation controller, power-supply unit, or generic AC 800PEC controller. Those descriptions conflict with ABB’s catalog designation of LCI Converter Interface (LIN). For a power-converter shutdown or planned outage, verify the nameplate, system drawing, firmware/hardware revision, and associated control boards before approving the replacement.
Related Products
- ABB 3BHE022294R0102 — previous product ID associated with ; useful when tracing legacy equipment and older spare-parts lists.
- ABB PCD530A102 3BHE041343R0102 — an associated ABB power-electronics control component frequently listed in the same LCI/excitation ecosystem; verify the project configuration before treating it as a direct companion.
- ABB PM866K01 3BSE050198R1 — controller hardware used in some ABB excitation/control architectures; not a functional substitute for .
- ABB KUC755AE117 3BHB005243R0117 — associated power-electronics control hardware found in certain ABB excitation configurations.
- ABB 5SHY3545L0003 — ABB power semiconductor component used in high-power converter systems; it is a power-device component, not an interface-board replacement.
- ABB PVD164A2059 3BHE014340R2059 — AC 800PEC high-performance control hardware for power-electronics applications; its role differs from the dedicated LCI interface function of .
- ABB GF A101 — closely related variant; confirm the complete article number and application before considering interchangeability.
- ABB AC 800PEC platform — the broader high-performance control environment in which this LCI interface is used.
Procurement note: For a replacement order, provide the complete 3BHE046836R0102 article number together with the installed designation and, where available, the hardware revision shown on the board label. This reduces the risk of receiving a visually similar but functionally different variant.
