ABB DSTA131 2668180-48/2 | ABB S100 Analog Signal Termination Unit for DCS Systems

Description

Key Technical Specifications

Product Introduction

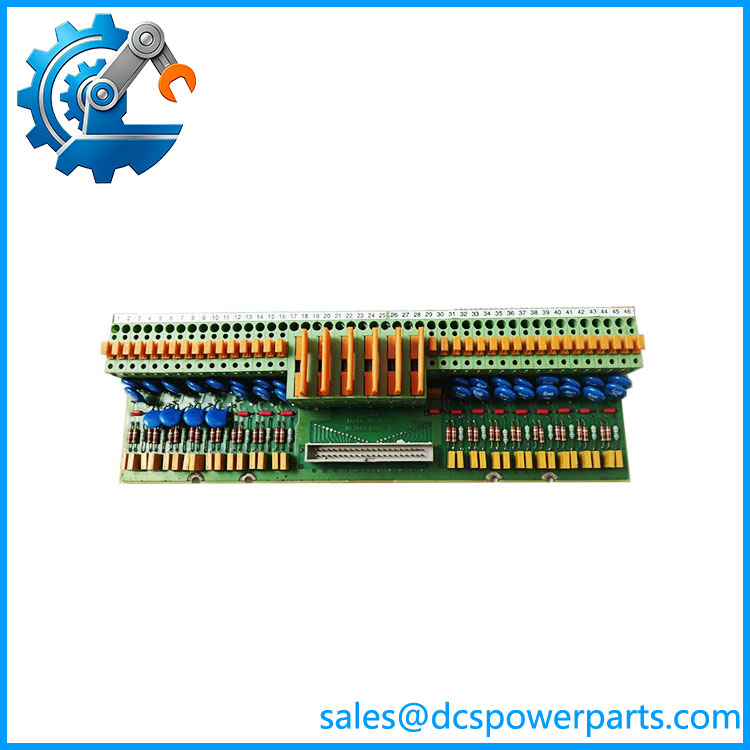

ABB DSTA131 2668180-48/2 Overview

The ABB DSTA131 2668180-48/2 is an S100 I/O connection unit used in ABB Advant OCS control systems. It provides the physical interface between field wiring and ABB I/O electronics, allowing process signals from transmitters, sensors, and field devices to be organized and connected to the controller system.

The main value of the ABB DSTA131 2668180-48/2 is maintaining existing ABB legacy DCS installations where replacing the complete I/O architecture is not practical. Engineers should verify the exact S100 I/O module type, terminal configuration, and cabinet drawings before replacement because termination units are closely tied to the installed signal wiring design.

DSTA131

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A common issue in older process plants is a failed I/O termination assembly during maintenance work. The controller may still be operational, but damaged terminal boards, loose field connections, or degraded signal interfaces can interrupt critical measurements. Replacing an S100 connection unit requires more than matching the part number. The engineer must confirm channel allocation, wiring diagrams, and the connected I/O module family.

Typical Applications

• Power Generation – Boiler instrumentation, auxiliary systems, and turbine balance-of-plant signal termination.
• Chemical Processing – Temperature, pressure, flow, and level transmitter connections in continuous processes.
• Oil & Gas Facilities – Field instrument signal collection for legacy ABB Advant control systems.
• Water Treatment Plants – Pump, valve, and process monitoring signal interfaces.

Technical Pitfalls to Avoid

1. Incorrect I/O Module Matching

   DSTA connection units are designed around specific ABB I/O architectures. Confirm the connected I/O module before installation.

2. Field Wiring Documentation Loss

   Many legacy plants have modified cabinet wiring over decades. Always compare terminal labels against current drawings before disconnecting cables.

3. Signal Type Verification

   Analog input, analog output, and digital signal termination requirements are different. Installing the wrong connection configuration can create false readings or channel failures.

Field note: Before removing an existing DSTA131, photograph terminal markings, cable tags, and module positions. A five-minute documentation step can prevent hours of loop-check work later.

Related Products

• ABB DSTA130
  Related I/O connection unit used for similar field interface duties. Selection depends on the connected I/O module and signal requirements.
• ABB DSTD108P
  ABB termination-related module used for digital signal connection applications. Typically paired with digital I/O configurations.
• ABB DSAI130
  Analog input-related I/O module used with compatible termination assemblies for process measurement acquisition.
• ABB DSAI131
  Analog input module variant within the same legacy ABB ecosystem. Used for different analog measurement configurations.
• ABB DSAO120A
  Analog output module for ABB systems. Provides output signal control to field devices such as valves and actuators.
• ABB Advant Controller 450 (AC450)
  Legacy ABB DCS controller platform commonly associated with I/O modules and termination units.
• ABB MasterPiece 200 / 200-1
  Earlier ABB control platform using related I/O hardware. Applicable for legacy system maintenance.
• ABB I/O System
  The I/O architecture where DSTA131 functions as the field connection interface between plant wiring and control electronics.
