Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model Number | DSRF197 |
| Order Number | 3BSE019297R1 |
| Product Type | I/O Equipment Frame |
| System Platform | ABB Advant OCS / Advant Master |
| I/O Family | S100 I/O System |
| Backplane Type | DSBB 172B Bus Backplane |
| Primary Function | Housing and interconnecting I/O modules |
| Communication Interface | S100 I/O bus architecture |
| Mounting Type | Control cabinet equipment frame |
| Application | Distributed control system I/O expansion |
| Lifecycle Status | Legacy / Obsolete spare component |
Product Introduction
ABB DSRF197 3BSE019297R1 Overview

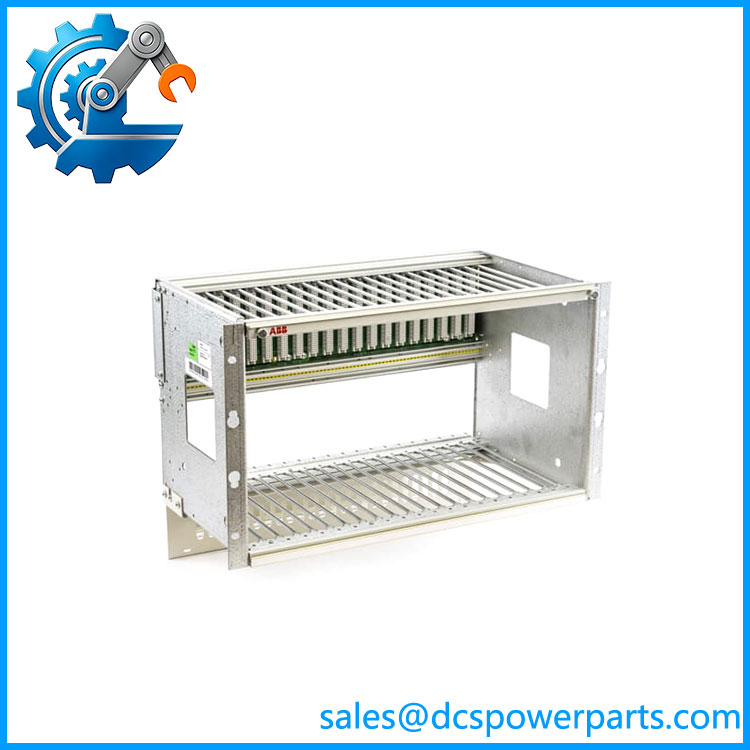

The ABB DSRF197 3BSE019297R1 is an I/O equipment frame used in ABB Advant OCS and Advant S100 control system installations. It provides the mechanical structure and internal bus connection required for mounting S100 I/O modules, including the integrated DSBB 172B bus backplane.
The main value of the ABB DSRF197 3BSE019297R1 is maintaining existing DCS hardware without cabinet redesign. For plants operating legacy ABB Advant systems, this frame remains a critical spare because damage to rack structures or backplane assemblies can interrupt communication between controllers and field I/O modules.
DSRF197 3BSE019297R1
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A typical problem in aging DCS installations is intermittent I/O communication loss that appears to be a module failure but is actually caused by rack infrastructure. Loose connections, damaged backplane contacts, or mechanical stress inside old cabinets can create unstable signals that are difficult to reproduce during troubleshooting. Replacing an entire I/O frame such as the DSRF197 can restore the physical foundation of the S100 I/O network.
Typical Applications
- Power Generation – ABB Advant systems used for boiler auxiliary control, turbine monitoring, and plant balance-of-system applications.
- Oil & Gas Processing – Legacy DCS cabinets handling process measurements, valve feedback, and equipment status signals.
- Chemical Manufacturing – S100 I/O installations supporting temperature, pressure, flow, and motor control loops.
- Pulp & Paper Production – Distributed control cabinets requiring reliable remote I/O module mounting and communication.
Technical Pitfalls to Avoid
- Confirm the Exact I/O Architecture
The DSRF197 is an equipment frame, not an independent controller or signal module. Verify the installed Advant system type, module family, and bus configuration before replacement.
- Inspect Backplane Condition Carefully
A rack replacement should include inspection of module connectors and bus contacts. Corrosion, contamination, or mechanical wear can create communication faults after installation.
- Check Cabinet Mechanical Compatibility
Confirm mounting dimensions, cable routing, grounding, and available cabinet space before installation. Legacy ABB cabinets often have specific mechanical layouts that must be preserved.
Related Products
- ABB DSBB 172B
Bus backplane associated with the equipment frame. Provides internal communication paths between installed I/O modules. - ABB DSRF198 3BSE019298R1
Related Advant equipment frame variant. Used where the system configuration requires a different rack arrangement. - ABB DSDI110AV1 3BSE018295R1
Digital input module used in ABB Advant I/O systems. Installed within compatible I/O rack assemblies for discrete field signals. - ABB DSDO115A 3BSE018298R1
Digital output module for controlling field devices such as solenoid valves, relays, and actuators. - ABB DSAI146 3BSE007949R1
Analog input module used for process measurement signals including temperature, pressure, and flow transmitters. - ABB DSAO120A 3BSE018293R1
Analog output module providing control signals to field actuators and final control elements. - ABB RF522 3BSE000743R1
Advant controller equipment frame used in related ABB control system cabinet structures. Different application from , which focuses on I/O installation. - ABB PM865K01 3BSE031151R1
AC 800M controller kit used in newer ABB automation architectures. Not a direct replacement but relevant for migration planning from older Advant platforms.
