Description

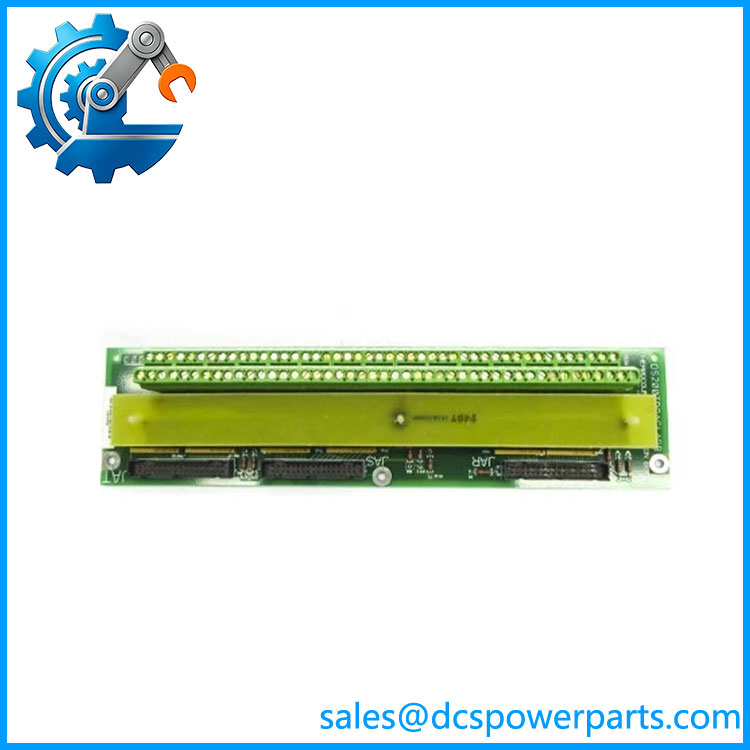

GE DS200TBQAG1ABB | Mark V TBQA Thermocouple Termination Board
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | DS200TBQAG1ABB |
| Manufacturer | GE |
| Series | Mark V DS200 |
| Functional Acronym | TBQA |
| Product Description | RST Thermocouple Termination Board |
| Product Type | Thermocouple termination / terminal board |
| Associated Board | TCQA |
| Thermocouple Signal Capacity | Up to 45 channels |
| Field Termination | TB1 and TB2 terminal blocks |
| TCQA Connections | JAR, JAS, JAT |
| Signal Grouping | Thermocouple signals 1–45 |
| Assembly Type | Normal assembly |
| PCB Coating | Normal coating |
| Hardware Revision | Three revision fields represented by the complete suffix |
| Operating Voltage | Verify against the installed Mark V system documentation |
| Operating Temperature | Verify against the applicable GE Mark V cabinet specification |
| Mounting | Mark V cabinet/rack installation |
| Communication Protocol | Not applicable; this is a hardwired termination board |
| Firmware | No standalone application firmware |
| Protection Rating | Verify from the installed cabinet/system documentation |
The available technical records identify the TBQA as a thermocouple termination module used with Mark V RST circuitry. The three JAR/JAS/JAT connectors carry thermocouple signal groups toward the TCQA boards, while the board’s field wiring is landed through the termination section.
DS200TBQAG1ABB
Product Introduction
The GE DS200TBQAG1ABB is a Mark V TBQA thermocouple termination board used to organize and route thermocouple field wiring within GE turbine control equipment. Its job is primarily signal termination and distribution rather than signal processing. The board interfaces the field thermocouple wiring with the appropriate TCQA circuitry used by the Mark V control architecture.
For maintenance teams, the distinction matters. The DS200TBQAG1ABB should not be treated as a generic analog input card or a modern PLC temperature-input module. Its electrical behavior, terminal assignments, and mating-board relationships are tied to the Mark V cabinet design. The complete DS200TBQAG1ABB designation should therefore be matched before replacement rather than ordering solely by the shorter TBQA or DS200TBQAG1A identifier.
Engineering Pain Point
A TBQA failure can look like a thermocouple, TCQA, wiring, or controller problem because the termination board sits directly in the field-signal path. A technician replacing the board without recording the original terminal assignments can create multiple temperature-channel faults at once. The three TCQA interfaces also matter: published Mark V information identifies JAR, JAS, and JAT as the thermocouple signal connections corresponding to different channel groups.
Typical Applications
- Gas turbine control: Thermocouple signal termination within Mark V turbine control cabinets.
- Steam turbine systems: Temperature signal routing associated with turbine monitoring and control.
- RST/TMR Mark V architecture: Distribution of thermocouple channels to the appropriate TCQA circuitry.
- Legacy turbine maintenance: Board-level replacement where the original Mark V termination hardware remains in service.
Technical Pitfalls to Avoid
- Do not confuse TBQA with TBQB or TBQC. The model numbers are similar, but these boards perform different termination functions within the Mark V architecture.
- Do not treat DS200TBQAG1ABB as Mark VIe hardware. Several current secondary listings incorrectly describe this part as a Mark VIe I/O terminal board. The technical references instead identify it with the Mark V TBQA thermocouple termination architecture.
- Record every field-wire position before removal. Terminal identification matters more than the physical appearance of the replacement PCB.
- Verify JAR/JAS/JAT routing. These connectors are associated with TCQA thermocouple signal groups, so connector placement must match the existing cabinet wiring.
- Match the complete part number. DS200TBQAG1A and are closely related designations, but the additional suffix characters identify revision/configuration information that should not be ignored.
- Do not invent temperature or voltage limits from unrelated DS200 boards. The available records do not establish reliable standalone operating ratings for this exact assembly. Use the Mark V cabinet documentation and installed nameplate when those limits are required for commissioning.
Related Products
- DS200TBQAG1A — Base TBQA RST thermocouple termination board designation; useful when comparing revision levels with the complete assembly.
- DS200TBQBG1ACB — Related Mark V RST analog I/O termination board; functionally different from the TBQA thermocouple termination board.
- DS200TBQCG1ABB — Related Mark V RST termination board; verify the exact signal function before substitution.
- TCQA — Associated thermocouple input circuitry receiving the TBQA-routed signals; exact TCQA board revision must match the installed Mark V configuration.
- DS200TBCBG1AAA — Mark V analog termination board for a different signal architecture; not a direct TBQA substitute.
- DS200TBCAG1A — Mark V analog I/O termination board; selection depends on the actual field-signal architecture.
- DS200DTBAG1AAA — Mark V digital contact-input termination board; applicable to discrete signals rather than thermocouple inputs.
- DS200TCEBG1BAA — Mark V protective termination circuitry with a different role in turbine signal processing; not interchangeable with TBQA.
Procurement Note
For a replacement, record the complete PCB number exactly as printed on the board, including all suffix characters and revision markings. Also document the cabinet/core position, TCQA mating boards, JAR/JAS/JAT connections, terminal wiring, and the turbine control application.
For a field replacement, I would verify the complete assembly against the installed TBQA board and GE Mark V documentation before energization. Do not approve the part solely because the shorter DS200TBQAG1A number appears to match. The available documentation confirms the TBQA thermocouple termination role, but it does not establish every electrical and environmental rating for the complete G1ABB configuration.
