ABB DSRF180A 57310255-AV | MasterPiece Equipment Frame

Description

Key Technical Specifications

ABB-related equipment records identify DSRF180A 57310255-AV as an Equipment Frame, while another established industrial automation listing identifies it as a MasterPiece Card File.

The dimensions require a procurement check because secondary sources disagree. One equipment record reports 250 mm × 47 mm × 350 mm, while other listings provide different package or product dimensions. For cabinet replacement, use the actual ABB mechanical drawing or measure the installed frame rather than relying on seller package dimensions.

Application Scenarios & Pain Points

When a legacy MasterPiece rack develops a backplane fault, replacing individual boards will not solve the underlying problem. Worse, an intermittent card-file connection can look like several unrelated module failures.

• MasterPiece control systems: DSRF180A provides the physical card-file structure for compatible MasterPiece control hardware.
• Legacy Advant Master installations: It is relevant when an existing ABB DCS cabinet requires a replacement frame while retaining the installed CPU, I/O, and communication boards.
• Rack refurbishment: During cabinet overhaul, replacing a mechanically damaged or electrically suspect card file can restore proper board seating and backplane connections.
• Emergency spare strategy: A complete spare frame can be useful where the installed rack is old enough that connector wear, bent contacts, or mechanical damage have become recurring maintenance concerns.

Field note: Inspect the backplane closely before transferring expensive boards. Look for bent contacts, darkened connector areas, loose mounting hardware, and signs of localized heating. A replacement frame is not useful if the original modules themselves have been damaged by a bad connection.

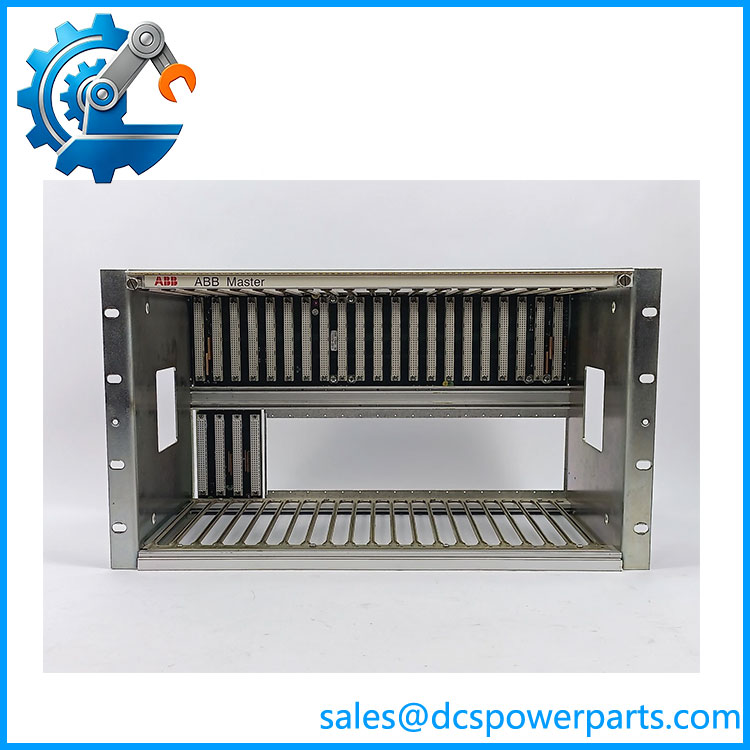

DSRF180A 57310255-AV

Related Products

• ABB DSPC174 3BSE005461R1 — Processor board associated with the same broader Advant Master hardware environment. Unlike DSRF180A, it performs active control processing.
• ABB DSPC171 57310001-CC — Another MasterPiece/Advant processor reference. It occupies a functional card position rather than providing the rack itself.
• ABB DSPC172H 57310001-MP — Processor/control hardware in the same legacy ABB ecosystem. It is a board-level component and therefore requires a compatible card file.
• ABB DSBC172 57310001-KD — Bus repeater/master hardware used with the Advant Master/S100 I/O architecture. It provides bus-related functionality rather than mechanical rack support.
• ABB DSMB127 57360001-HG — Memory board used in the same legacy ABB control environment. It is an active electronics module, unlike the passive equipment frame.
• ABB DSMC112 57360001-HC — Control circuit board associated with Advant Master hardware. It performs electronics/control functions while DSRF180A supplies the physical card-file structure.
• ABB DSCS131 57310001-LM — Communication board for the Advant Master environment. It handles communication functions and depends on the appropriate rack/interface architecture.
• ABB DSCA114 57510001-AA — Communication interface hardware for legacy ABB systems. It is a functional board rather than a rack or card file.

The Engineer’s Guide: Field Pitfalls to Avoid

⚠️ Do not order DSRF180A expecting a complete control rack.

The card-file listing specifically states that the frame does not include modules, power supply, or battery units.

How to avoid it: When requesting a quotation, specify whether you need the or a populated assembly. Confirm every included component before purchasing.

⚠️ Check the backplane and connector condition.

The frame is mechanically passive, but its backplane interfaces are critical to system operation. Bent contacts or oxidized connections can cause intermittent board communication.

How to avoid it: Inspect every card position under good lighting. Check connector alignment and retention hardware before installing the original electronics.

⚠️ Verify the exact mechanical dimensions.

Published secondary listings disagree on dimensions and weight.

How to avoid it: Use the original cabinet drawing or physically measure the installed frame. Do not use shipping-package dimensions as the installation envelope.

Frequently Asked Questions (FAQ)

What is ABB 57310255-AV?

ABB 57310255-AV is an equipment frame/card file for the ABB MasterPiece control architecture. It provides the mechanical mounting and backplane environment for compatible control, I/O, and communication boards.

Is a CPU?

No. is the rack/card-file structure, not the processor itself. A processor board such as a DSPC-series module must be installed separately when required by the system configuration.

Does include the power supply?

No. The available card-file documentation explicitly states that the frame is supplied without the modules, power supply, or battery units.

Which ABB system uses ?

The part is associated with the ABB Advant Master / MasterPiece control environment. Equipment references specifically identify it as a MasterPiece card file and as an ABB DSRF 180A equipment frame.

Can I transfer my existing boards into a replacement ?

Potentially, provided the replacement frame has the correct mechanical and backplane configuration. Before transfer, compare the card positions, connector condition, mounting arrangement, and exact frame designation. Do not assume that every visually similar DSRF frame has identical internal wiring.

What should I inspect on a used ?

Focus on the areas that actually affect reliability:

1. Backplane connector contacts.
2. Bent or damaged card guides.
3. Cracks or deformation in the frame.
4. Signs of overheating or discoloration.
5. Mounting hardware and grounding points.
6. Part-number and revision markings.

The frame may look almost unused while a connector contact has suffered years of insertion cycles.
