Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model Number | DSDP170 |
| Order Number | 57160001-ADF |
| Product Type | Pulse Counting Board |
| System Platform | ABB Advant OCS / Advant Master |
| I/O Platform | S100 I/O |
| Primary Function | Position, length, speed, and frequency measurement |
| Maximum Pulse Frequency | 2.5 MHz |
| Measurement Type | Pulse counting / encoder signal processing |
| Application | High-speed measurement and positioning systems |
| Dimensions | 328.5 × 18 × 238.5 mm |
| Weight | 0.38 kg |
| Mounting | S100 I/O rack slot |
| Environmental Rating | Industrial cabinet installation |
| RoHS Status | Exempt according to applicable industrial equipment provisions |
Product Introduction
ABB DSDP170 57160001-ADF Overview
The ABB DSDP170 57160001-ADF is a pulse counting board designed for ABB Advant OCS and S100 I/O systems. It processes high-frequency pulse signals used for position measurement, length calculation, speed monitoring, and frequency measurement in industrial automation applications. The module supports pulse frequencies up to 2.5 MHz.
The ABB DSDP170 57160001-ADF is mainly used in legacy ABB control installations where fast encoder or pulse-based feedback is required. It provides a dedicated measurement interface between field devices and the DCS, avoiding the limitations of standard digital input modules for high-speed signals.

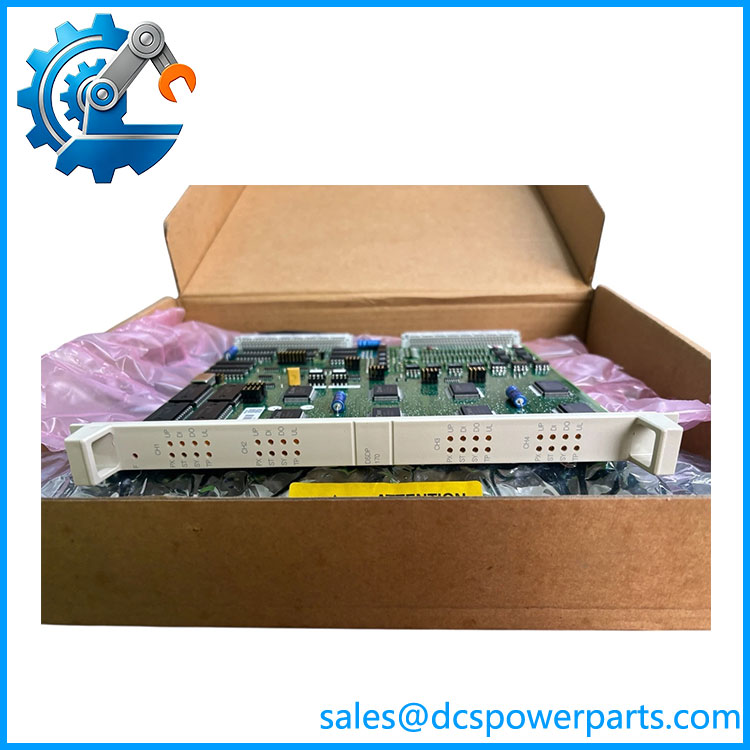

DSDP170 57160001-ADF
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
High-speed feedback failures can be difficult to diagnose. A conveyor may lose synchronization, a positioning system may drift, or a speed measurement may become unstable. Engineers often check the controller logic first, but the actual fault may be caused by pulse signal quality, encoder wiring, shielding problems, or an aging pulse input board.
The DSDP170 handles signals that normal digital inputs cannot reliably process. Timing matters here. A missed pulse can become a positioning error.
Typical Applications
- Steel and Metal Processing – Length measurement, roll speed monitoring, and encoder feedback on rolling equipment.
- Paper Manufacturing – Web speed measurement, winding control, and position synchronization systems.
- Power Generation – Rotating equipment speed monitoring and pulse-based measurement applications.
- Material Handling Systems – Conveyor speed detection, positioning, and production counting functions.
Technical Pitfalls to Avoid
- Confirm Encoder Signal Compatibility
Do not assume every encoder output can connect directly. Verify pulse voltage level, signal type, wiring method, and maximum frequency requirements before installation.
- Inspect Shielding and Grounding
High-frequency pulse signals are sensitive to electrical noise. Poor cable shielding, incorrect grounding, or routing near power cables can create false counts or unstable speed readings.
- Verify S100 I/O Configuration
The DSDP170 is designed for ABB S100 I/O systems. Confirm the controller type, I/O database configuration, and installed software version before commissioning.
