ABB DSAO120A 3BSE018293R1 | Advant OCS Analog Output Module 8CH, In Stock

Description

Key Technical Specifications

Product Introduction

ABB DSAO120A 3BSE018293R1 Overview

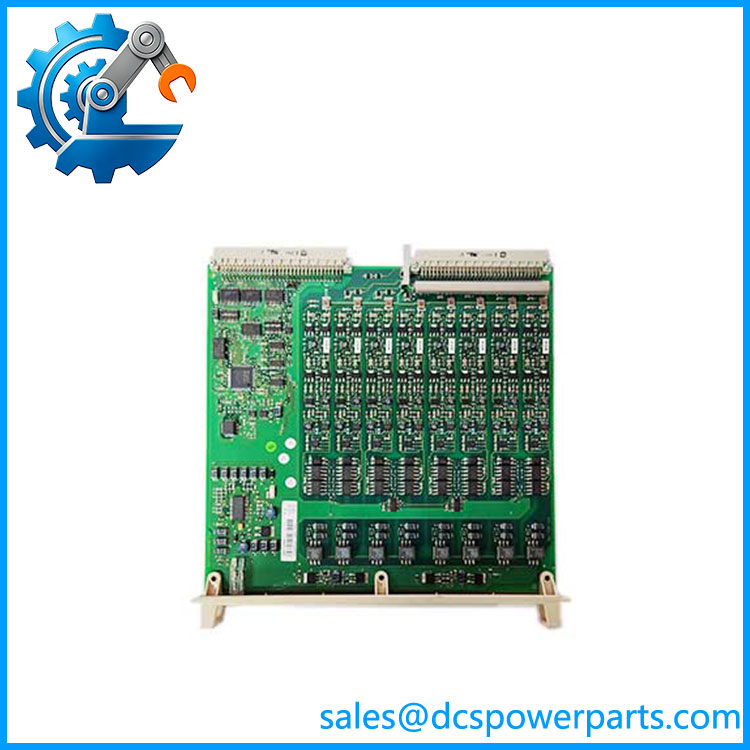

The ABB DSAO120A 3BSE018293R1 is an 8-channel analog output board designed for ABB Advant OCS and S100 I/O control architectures. It provides analog command signals from the control system to field devices such as control valves, actuators, and variable-speed equipment.

The ABB DSAO120A 3BSE018293R1 remains important in legacy DCS maintenance projects where existing Advant installations are still operating. It allows plants to maintain installed S100 I/O cabinets without immediate hardware migration, reducing disruption during lifecycle support activities.

DSAO120A 3BSE018293R1

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A process loop can look healthy from the operator station while the actual output hardware is failing. A control valve may stop responding, a speed reference may remain fixed, or a damper actuator may move unpredictably. Engineers often spend time checking the controller logic first, but the real issue can be a degraded analog output channel, poor field wiring, or an aging I/O board.

The DSAO120A sits between the DCS control strategy and the physical process. When this link fails, production stability can suffer quickly.

Typical Applications

• Oil & Gas Processing – Analog control signals for flow control valves, pressure regulators, and compressor auxiliary systems.
• Power Generation – Turbine auxiliary controls, boiler process loops, and fuel control output signals.
• Chemical Manufacturing – Continuous process applications requiring accurate valve and actuator positioning.
• Pulp & Paper Industry – Process control loops for temperature, pressure, flow, and chemical dosing systems.

Technical Pitfalls to Avoid

1. Verify Output Configuration Before Replacement

   Confirm whether the existing application uses current output or voltage output. A replacement board with the same part number should still be checked against the installed engineering configuration.

2. Check Field Loop Wiring

   A failed actuator response does not always indicate a defective output module. Inspect loop power, cable shielding, terminal connections, and field device input impedance.

3. Confirm I/O Compatibility

   The DSAO120A belongs to the ABB I/O family. Verify the installed controller platform, I/O rack configuration, and software database before commissioning.

Related Products

• ABB DSAI146 3BSE007949R1
  I/O analog input module. Used for collecting process measurements from transmitters such as pressure, temperature, and flow devices. Works on the input side of control loops where handles output signals.
• ABB DSDO115A 3BSE018298R1
  I/O digital output module. Provides discrete control signals for relays, solenoids, and motor starters rather than continuous analog commands.
• ABB DSDI110A 3BSE018295R1
  I/O digital input module. Used for monitoring switches, alarms, and equipment status signals.
• ABB DSRF197 3BSE019297R1
  I/O equipment frame with backplane support. Provides the rack structure where compatible I/O modules are installed.
• ABB RF522 3BSE000743R1
  Advant Controller rack assembly. Used for controller hardware installation and differs from , which is an I/O signal module.
• ABB PM865K01 3BSE031151R1
  AC800M controller kit used in newer ABB control architectures. Relevant for migration planning from older Advant platforms.
• ABB CI810B 3BSE020520R1
  Communication interface module used in ABB automation systems. Provides network communication functions rather than analog signal processing.
• ABB DSAO120AK01
  Related analog output kit variant based on the module family. Used where a complete replacement kit configuration is required.
