Description
ABB DSAI 130K13 3BSE019911R1 Analog Input Set
Product Overview
The ABB DSAI 130K13 is an S100 I/O analog input set used with ABB’s legacy Advant control architectures. Its associated ABB order number is 3BSE019911R1, and product records identify the assembly as a 16-channel analog input with 16 differential inputs. The module belongs to ABB’s DSAI 130 family and was used across Advant Master, MasterPiece, Advant Controller 450, and related S100 I/O installations.
A key point for procurement is that DSAI 130K13 is an input set rather than merely a bare analog-input board. Historical ABB-related catalog information identifies the set as including DSAI 130A, DSTA 135, and DSTK 221L3, with each channel provided with a fuse in the documented configuration. That distinction matters when replacing an installed assembly: buying only a DSAI 130 board may not reproduce the field termination and cabling arrangement of the original K13 package.
The ABB DSAI 130K13 is intended for process signals that need to be converted into controller-readable analog values. The underlying DSAI 130 family supports configurable voltage and current measurement ranges; ABB’s S100 documentation lists ranges including 0–10 V, 0–20 mA, 0–5 V, and other bipolar/unipolar configurations depending on database configuration.
This is therefore a genuine legacy DCS I/O component, not a modern standalone Ethernet I/O block. Its value is primarily in maintaining existing S100 installations where replacing the complete controller and I/O architecture would create unnecessary migration work.
Product Introduction
A failed analog-input channel in an older Advant installation does not necessarily justify replacing the entire control system. The ABB DSAI 130K13 provides 16 differential analog-input channels within the S100 I/O architecture, making it relevant for maintaining existing field-instrumentation interfaces.
For a legacy replacement, however, check the complete 3BSE019911R1 set rather than matching only the DSAI board number. The K13 package historically included the input board, connection unit, and cable assembly, which can materially affect installation compatibility.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | DSAI 130K13 |
| ABB Order Number | 3BSE019911R1 |
| Manufacturer | ABB |
| Product Family | S100 I/O |
| Product Type | Analog Input Set |
| Analog Input Channels | 16 |
| Input Configuration | 16 differential inputs |
| Signal Category | Analog voltage/current |
| Associated Board | DSAI 130A |
| Associated Connection Unit | DSTA 135 |
| Associated Cable | DSTK 221L3 |
| System Family | ABB Advant / MasterPiece / I/O |
| Typical Mounting | I/O rack/system installation |
| Weight | Approximately 0.9 kg |
| RoHS Status | Not RoHS compliant / legacy exemption applies to applicable Advant Master documentation |
| Lifecycle | Legacy |
The 16-channel, 16-differential-input identification and approximately 0.9 kg weight are documented in product records. ABB-related documentation also places 3BSE019911R1 within the I/O and Advant control-system categories.
Input Range Considerations
The broader DSAI 130 family supports several analog ranges. Historical ABB documentation lists configurations such as 0–10 V, 0–5 V, 0–20 mA, ±10 V, and ±20 mA, with the precise engineering range determined by the configured I/O database and hardware arrangement.
Do not treat every range in the DSAI 130 family documentation as simultaneously available on every channel of every K13 installation. The installed configuration should be checked against the original system database.

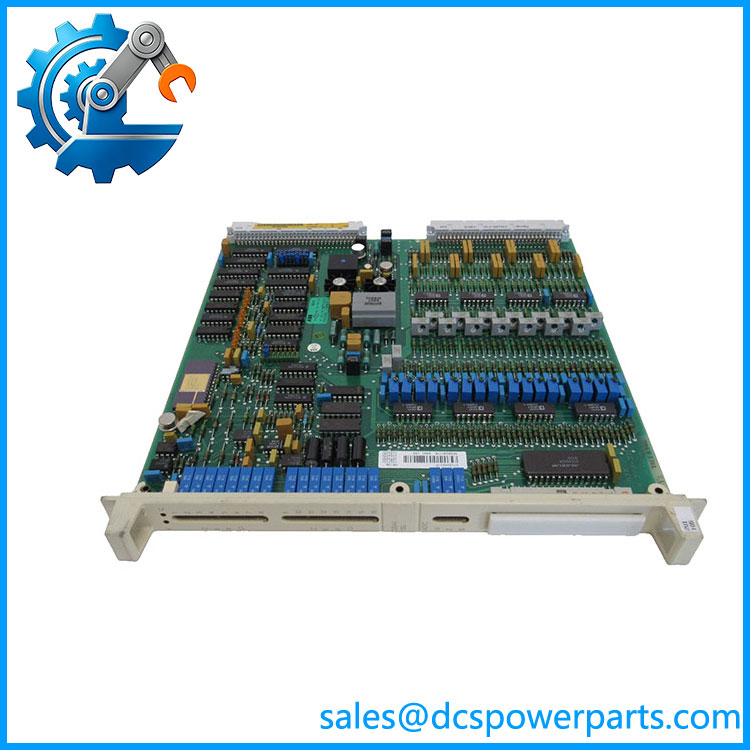

DSAI130K13
Major Features / Practical Advantages
1. Sixteen Differential Analog Channels
The defining characteristic of the DSAI 130K13 is its 16-channel differential architecture. Each analog measurement uses a differential input arrangement rather than simply sharing a common signal return.
That matters in older process-control installations where field wiring can extend over significant distances and ground-potential differences can complicate low-level analog measurement. Differential acquisition provides the appropriate interface architecture for these installations.
2. I/O Integration
The DSAI 130K13 belongs to ABB’s family. ABB-related documentation places 3BSE019911R1 in Advant Master, MasterPiece 200/200-1, Advant Controller 450, and related I/O categories.
This makes it fundamentally different from an S800 or AC 800M I/O module. A visually similar analog-input card from another ABB family should not be substituted simply because both provide 16 analog channels.
3. Complete K13 Set Architecture
The K13 designation is worth paying attention to. Historical procurement records identify 3BSE019911R1 as an AI kit consisting of the DSAI 130A board together with DSTA 135 and DSTK 221L3.
For a maintenance engineer, that means the connection hardware can be just as important as the processor board. When sourcing a replacement, ask whether the quoted item is the complete K13 set or only the DSAI 130A board.
4. Configurable Analog Measurement
The underlying DSAI 130 architecture supports both voltage and current input ranges. ABB’s documentation lists multiple engineering ranges, including 0–10 V and 0–20 mA configurations.
That makes the module suitable for signals from pressure, flow, level, temperature transmitters, and other process instruments, provided the field signal matches the configured input range.
5. Legacy Advant System Support
The DSAI 130K13 remains relevant mainly because many industrial plants continue operating older ABB control architectures. Product records explicitly associate the module with Advant Master and related I/O systems.
Replacing one failed module can therefore be substantially less disruptive than undertaking a complete I/O migration. The tradeoff is that legacy hardware requires more careful verification of controller revision, I/O database configuration, termination hardware, and spare-part condition.
6. Channel-Level Protection in the Historical K13 Set
Historical procurement information for 3BSE019911R1 identifies the K13 set as including individual fusing per channel.
When troubleshooting an apparently dead input, this means the analog board should not be the first—and only—suspect. Check the associated termination assembly, field fuse, cable, transmitter loop, and configuration before condemning the DSAI hardware.
7. Legacy Hardware Requires Configuration Discipline
The DSAI 130 family does not behave like a modern universal auto-ranging I/O module. The controller’s I/O database determines how the input is interpreted, while the hardware and termination arrangement establish the available electrical signal path.
A replacement should therefore preserve the original channel assignment and engineering range. Swapping hardware without checking the configuration can produce a believable but incorrect process value, which is considerably more dangerous than an obvious bad-channel alarm.
Related Products
- DSAI 130A — The analog-input board associated with the DSAI 130K13 set.
- DSTA 135 — Connection unit included in the historical K13 analog-input set.
- DSTK 221L3 — Connection cable associated with the 3BSE019911R1 K13 set.
- DSAI 130K18 — 16-channel DSAI analog-input set with a different configuration; ABB records identify it separately from K13.
- DSAI 130K14 — Related 16-channel DSAI 130 analog-input set with a different configuration.
- DSAI 130K15 — Another DSAI 130 analog-input set configuration.
- DSAI 130AK01 — DSAI 130A-related analog-input set used in I/O architectures.
- DSAI 130AK02 — Related DSAI analog-input kit with a different system configuration.
- DSDI 110AK13 — 32-channel, 24 VDC digital-input kit; complementary digital rather than analog acquisition hardware.
- DSAO 120AK01 — analog-output kit; performs output rather than input signal processing.
FAQ
Is ABB DSAI 130K13 a PLC module or a DCS I/O module?
It is an I/O analog-input set used with ABB Advant/MasterPiece-era control systems. Product records classify 3BSE019911R1 as an I/O module and identify 16 differential analog inputs.
What is the difference between DSAI 130K13 and DSAI 130A?
DSAI 130A refers to the analog-input board/family, while DSAI 130K13 / 3BSE019911R1 identifies a particular analog-input set. Historical ABB procurement information associates K13 with DSAI 130A, DSTA 135, and DSTK 221L3.
Can I hot-swap the DSAI 130K13?
Do not assume unrestricted hot swapping. This is legacy I/O hardware connected to an operating control system. Follow the applicable ABB/plant maintenance procedure, including controller state, field isolation, and backplane handling requirements.
Does DSAI 130K13 support firmware v3.1?
The DSAI 130K13 is an I/O hardware set rather than a standalone modern Ethernet module with a user-selectable firmware package. Compatibility is primarily determined by the hardware, controller type, I/O database, and system revision. Do not infer a “firmware v3.1” capability from the K13 designation.
Does it accept 4–20 mA signals?
The DSAI 130 family supports current-input configurations, including 0–20 mA, alongside voltage ranges. However, the exact engineering range and wiring arrangement should be verified against the installed system configuration before connecting a 4–20 mA transmitter.
Can DSAI 130K13 replace DSAI 130K18?
Not automatically. Both are 16-channel DSAI 130-family sets, but ABB identifies K13 and K18 as separate configurations. The channel range, termination arrangement, and controller configuration should be compared before substitution.
Is a New Surplus DSAI 130K13 equivalent to factory-new ABB stock?
Not necessarily. With a legacy module, procurement should verify the exact 3BSE019911R1 number, board revision, included DSTA 135/DSTK 221L3 hardware, connector condition, and test status. A bare board may not provide the same installation capability as the original K13 set.
Procurement Note
The ABB DSAI 130K13, 3BSE019911R1 should be treated as a complete analog-input set, not merely as a generic 16-channel analog card. The strongest available records identify the exact catalog description as “DSAI 130K13 Analog Input 16ch, 16 differ”, and historical procurement data identifies the K13 set components as DSAI 130A, DSTA 135, and DSTK 221L3.
Before purchasing, verify the installed Advant/MasterPiece controller type, I/O database, input signal ranges, termination hardware, and complete 3BSE019911R1 configuration. Do not substitute an S800 or newer ABB analog-input module merely because the channel count appears similar.
One more caution: some current reseller pages incorrectly describe the DSAI 130K13 as a 16-bit module or claim channel-to-channel isolation and universal 4–20 mA/RTD/thermocouple capability. Those claims are not adequately supported by the older ABB documentation I found. The safer published identification is 16 differential analog inputs, with the actual signal range determined by the DSAI 130 configuration.
