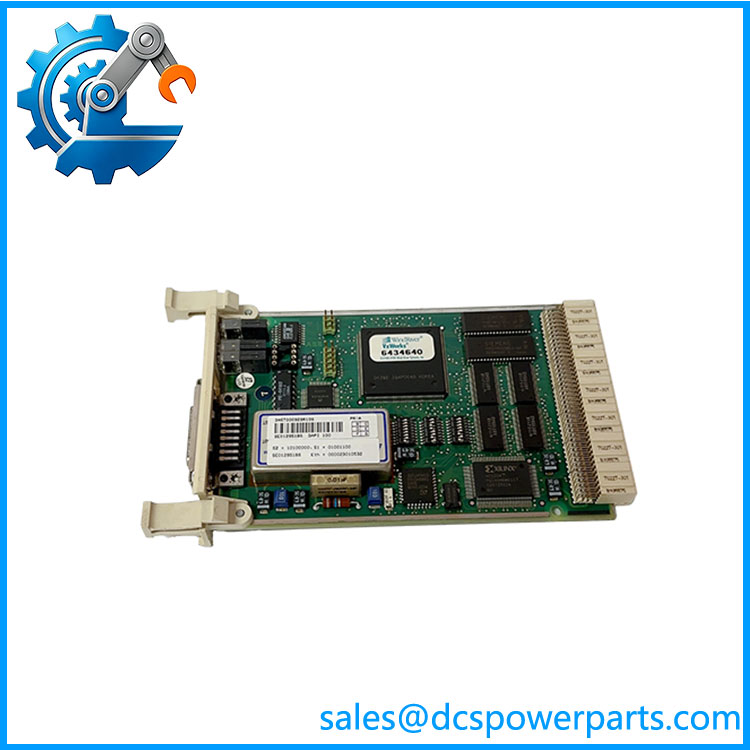

The ABB DAPI100 3AST000929R109 is an Ethernet communication interface module designed for ABB Advant OCS automation systems. This module provides network communication capability between ABB control platforms and external devices by handling industrial Ethernet data exchange, system communication services, and interface management functions. The ABB DAPI100 3AST000929R109 belongs to ABB Advant communication hardware used in distributed control environments where legacy system connectivity remains important.
Within ABB Advant architectures, the ABB DAPI100 3AST000929R109 operates as a communication gateway between control system components and Ethernet-based networks. It supports TCP/IP communication functions and is used where data transfer between controllers, supervisory systems, engineering stations, or other automation devices is required. The module is typically integrated into industrial control cabinets as part of established ABB automation installations.
The ABB DAPI100 3AST000929R109 is commonly considered during lifecycle maintenance, communication restoration, and replacement projects involving ABB Advant OCS systems. For older installations, maintaining the correct communication interface is often essential because network configuration, controller firmware, and application databases may depend on the original hardware design. To be completely transparent, engineers should confirm the exact Advant controller version, network topology, software configuration, and existing communication parameters before replacement.
The practical value of this interface module is preserving communication capability without requiring a complete control system redesign. During installation, technicians should inspect Ethernet connections, power supply stability, module diagnostics, and network addressing parameters. A verified spare ABB DAPI100 3AST000929R109 can help restore communication paths in existing ABB control environments where hardware continuity is required.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | ABB 3AST000929R109 |
| Manufacturer | ABB |
| Product Type | Ethernet Communication Interface Module |
| Series | Advant OCS Communication Module |
| Application Platform | ABB Advant OCS / Advant Controller systems |
| Communication Interface | Ethernet |
| Communication Protocol | TCP/IP |
| Supply Voltage | 24VDC |
| Installation Type | Control cabinet mounting |
| Network Function | Industrial data communication interface |
| Main Application | DCS communication and system integration |
| Operating Temperature | Approx. -10°C to +60°C |
| Protection Level | IP20 class installation environment |
| Weight | Approx. 1 kg |
DAPI100
Related Products
- ABB DSCA190V 57310001-PK — Advant communication processor module. Handles control system communication processing functions and is commonly found in the same Advant OCS ecosystem.
- ABB DSCS131 57310001-LM — Advant communication interface module. Used for different communication requirements within ABB legacy control architectures.
- ABB CI858K01 3BSE018135R1 — ABB communication interface module for AC800M systems. Provides communication capability in newer ABB controller platforms.
- ABB CI840A 3BSE041882R1 — S800 I/O communication interface. Used for connecting ABB S800 I/O stations to higher-level controllers.
- ABB PM511V16 3BSE011181R1 — Advant Controller processor module. Provides control processing while supports communication functions.
- ABB PM864AK01 3BSE018161R1 — AC800M controller module. Used in newer ABB System 800xA architectures as a controller platform replacement path.
- ABB CS513K01 3BSE000435R1 — Advant communication interface module. Supports communication tasks in ABB Advant system configurations.
Frequently Asked Questions (FAQ)
1. What is the ABB 3AST000929R109 used for?
The ABB 3AST000929R109 is an Ethernet communication interface module used in ABB Advant control systems. Its primary role is providing network communication capability between ABB automation equipment and Ethernet-based systems.
2. Can I hot-swap the ABB 3AST000929R109?
Hot replacement depends on the installed Advant system configuration.
Recommended procedure:
- Verify the communication module location.
- Save network and controller configuration information.
- Follow approved maintenance procedures.
- Replace the module.
- Confirm communication status and diagnostics.
Legacy DCS systems often require controlled replacement because communication settings are closely linked with the application database.
3. Does the ABB support firmware v3.1?
The is a communication interface module rather than a PLC CPU. Firmware compatibility depends on the installed ABB Advant software release, controller revision, and communication configuration.
Before replacement, engineers should verify:
- Advant system version
- Existing module revision
- Network configuration
- Controller communication settings
4. Will replacing the ABB erase my control logic?
No. The does not normally store the main application control program.
After replacement, technicians should verify:
- Ethernet communication status
- Network parameters
- Controller recognition
- Supervisory system connection
5. How can I verify a New Surplus ABB 3AST000929R109?
Recommended inspection steps:
- Confirm ABB identification label.
- Verify model number and ordering code.
- Inspect Ethernet ports and connectors.
- Check enclosure condition.
- Perform communication testing before field installation.
6. What systems are compatible with ABB ?
The is associated with ABB Advant OCS control architectures. Compatibility depends on the specific controller platform, software release, and communication configuration installed at the site.
7. Is ABB suitable for DCS modernization projects?
The is mainly used for maintaining existing ABB Advant installations. For modernization projects, engineers should evaluate the complete migration path, including controller hardware, communication requirements, software compatibility, and long-term maintenance strategy.
