ABB KSD211A101 3BHE024313R0101
Product Introduction
The ABB KSD211A101 3BHE024313R0101 is a KS D211 series Input Coupling Unit (ICU) used within ABB UNITROL excitation-system equipment. ABB documentation for UNITROL 6080 lists KS D211 A with ordering code 3BHE024313R0101, establishing the part’s relationship to the UNITROL excitation architecture. Secondary technical records identify the full designation as KS D211 A101 and describe it specifically as an Input Coupling Unit.
The role of the ABB KS D211 A101 is to provide an interface between incoming signals and the internal excitation-system electronics. This is important in generator excitation equipment because measurement and control signals cannot be treated in the same way as ordinary PLC field I/O. Signal coupling, conditioning, isolation, and correct interfacing have to match the excitation cabinet’s hardware architecture. The available documentation supports identifying this unit as an ICU, but does not provide enough authoritative information to publish a detailed channel-by-channel I/O specification. Several secondary listings make unsupported claims about exact channel counts, signal types, accuracy, and communications, so those values should not be treated as confirmed specifications for the A101 variant.
For procurement, ABB KSD211A101 3BHE024313R0101 should be specified using both the short hardware designation and the complete ABB order number. This is particularly important because the KS D211 family is tied to a larger excitation-system architecture, and a physically similar coupling board may not have the same electrical configuration. The ABB UNITROL 6080 documentation also provides environmental limits of 0°C to 70°C operating temperature, -25°C to 85°C storage, and 30–100% humidity without condensation for the applicable system environment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | KS D211 A101 / KSD211A101 |
| ABB Part Number | 3BHE024313R0101 |
| Manufacturer | ABB |
| Product Type | Input Coupling Unit (ICU) |
| Product Family | UNITROL Excitation Systems |
| Associated Architecture | UNITROL 6000 / UNITROL 6080 |
| Primary Function | Input signal coupling/interface |
| Application | Generator excitation and converter-control systems |
| Installation | Internal excitation-system rack/cabinet |
| Supply Voltage | 24 VDC reported by secondary technical documentation; verify site configuration |
| Operating Temperature | 0°C to 70°C, based on UNITROL 6080 system documentation |
| Storage Temperature | -25°C to 85°C |
| Humidity | 30–100%, non-condensing, per applicable UNITROL 6080 documentation |
| Communication Protocol | Not established as a standalone external protocol |
| Protection Rating | Not independently verified for the standalone PCB/module |
| Channel Count | Not reliably established from authoritative documentation |
| Accuracy | System/configuration dependent; not specified as a standalone measurement instrument |
Specification caution: Some reseller pages publish detailed claims such as eight analog/digital channels, 4–20 mA and 0–10 V inputs, Modbus-RTU, 500 V isolation, and ±0.05% accuracy. These claims are not corroborated by the ABB documentation located for the exact 3BHE024313R0101 order number and should not be copied into an engineering specification without the original cabinet documentation.

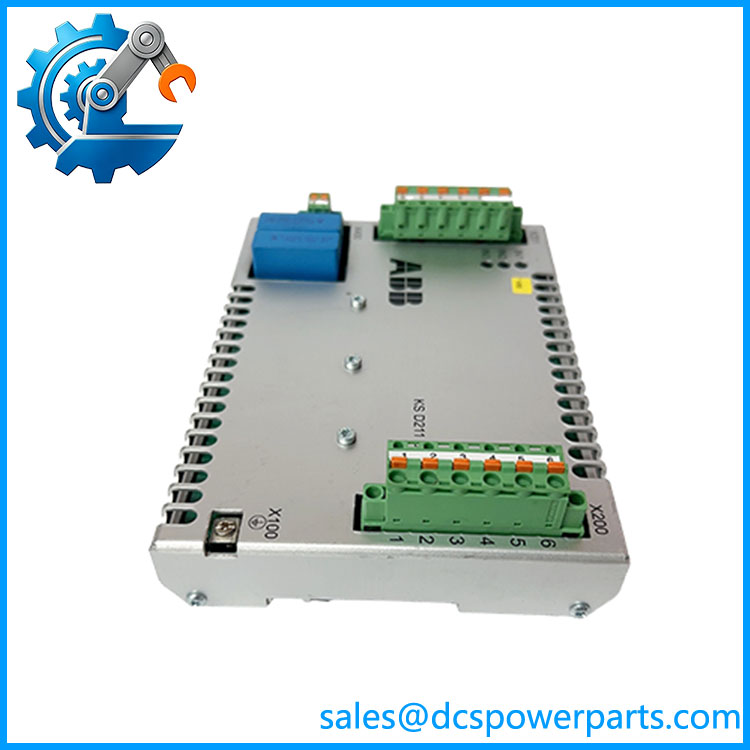

KSD211A101 3BHE024313R0101
Main Features and Engineering Considerations
Dedicated Input Coupling Function
The ABB KSD211A101 is best understood as an excitation-system interface component rather than a general-purpose PLC input module. Its job is determined by the surrounding UNITROL architecture, so its electrical behavior has to be considered together with the excitation controller, measurement circuits, and cabinet wiring.
UNITROL System Integration
ABB’s UNITROL 6080 documentation directly associates with order number 3BHE024313R0101. This makes the complete part number particularly useful when identifying legacy excitation hardware.
Signal Integrity
Input coupling hardware is positioned in a part of the system where signal integrity matters. Generator voltage, current, control, and feedback signals can be affected by switching noise and grounding conditions inside an excitation cabinet. A replacement therefore needs to reproduce the intended interface characteristics rather than simply provide a board with compatible physical dimensions.
Do Not Assume Generic I/O Compatibility
A common procurement mistake is to interpret “input coupling unit” as equivalent to a standard analog-input card. It is not. The ICU designation describes its system role, not a universal signal specification.
Environmental Conditions
The UNITROL 6080 documentation gives 0°C to 70°C operating temperature and -25°C to 85°C storage for the applicable system environment. These figures should be treated as system-level environmental information rather than an independently verified standalone PCB rating.
Replacement Verification
Before removing an installed KSD211A101, record:
- Complete ABB part number
- Board designation and revision
- Cabinet/rack position
- Connector arrangement
- Associated UNITROL controller
- Existing measurement and control wiring
- Any relevant cabinet drawings
After replacement, verify the associated excitation-system diagnostics and input measurements before returning the generator to normal operating service.
Legacy Equipment Consideration
The KS hardware is associated with older UNITROL excitation architectures. For an operating power-generation asset, maintaining an exact spare can be more practical than assuming a newer interface board is a direct substitute. Any proposed supersession should be checked against the complete UNITROL system configuration.
Application Scenarios
- ABB UNITROL excitation systems
- UNITROL 6000/6080 installations
- Synchronous generator excitation
- Hydro-electric generator systems
- Thermal power generation
- Generator voltage regulation
- Excitation-system measurement interfaces
- Legacy UNITROL maintenance
- Planned outage spare replacement
- Excitation cabinet troubleshooting
Engineer’s Guide: Field Pitfalls
Do not identify the part by “KSD211” alone. The complete designation is / 3BHE024313R0101.
Do not confuse the ICU with a conventional PLC analog-input module. Its function is defined by the UNITROL excitation architecture.
Verify the cabinet before ordering. ABB’s documentation establishes the part within the UNITROL environment, but exact field interfaces should be checked against the installed cabinet drawings.
Do not copy unsupported channel specifications from reseller pages. The published secondary specifications conflict and are not sufficient evidence for an engineering replacement specification.
Check the complete connector arrangement. An input-coupling board can be physically compatible while still being electrically wrong for the installed cabinet.
Verify excitation measurements after replacement. Do not stop at a power-up check. Confirm that the controller receives the expected measurement signals and that no excitation-system diagnostics are active.
Frequently Asked Questions
What is ABB ?
ABB is a KS A101 Input Coupling Unit (ICU) used within ABB UNITROL excitation-system equipment. Its ABB order number is 3BHE024313R0101.
What is the function of 3BHE024313R0101?
It is an Input Coupling Unit, providing the input-interface function between external circuits and the internal UNITROL excitation-system electronics.
Is a PLC I/O module?
No. It should not be treated as a conventional AC 800M, S7, or other general-purpose PLC I/O card. It is a dedicated UNITROL excitation-system interface.
Which system is associated with?
ABB documentation places KS A / 3BHE024313R0101 in the UNITROL 6080 documentation, while secondary sources identify the A101 variant within UNITROL excitation systems.
What is the operating temperature?
The UNITROL 6080 documentation specifies 0°C to 70°C operating and -25°C to 85°C storage for the documented system environment.
Does use 24 VDC?
Secondary product documentation lists 24 VDC for 3BHE024313R0101. Because the available ABB documentation does not provide a standalone electrical specification sheet for the A101 board, verify the actual supply arrangement against the installed cabinet documentation before energization.
Procurement Note
For purchasing, use the complete description:
ABB KS / — 3BHE024313R0101 — Input Coupling Unit (ICU) — UNITROL Excitation System
For an installed generator excitation system, I would require the supplier to confirm the exact ABB order number, board revision, physical connector arrangement, and compatibility with the existing UNITROL cabinet before accepting a replacement.
The main risk with this part is not simply obtaining a board that carries “” on a listing. It is ensuring that the board is the correct 3BHE024313R0101 configuration for the installed excitation architecture. ABB’s UNITROL documentation provides the strongest identification; detailed channel-level specifications should be taken from the actual system drawings rather than inferred from generic reseller data.
