ABB cRBX01 Remote Bus Extender
Product Introduction
Long-distance I/O connections become a practical engineering problem when an automation cabinet and remote field equipment cannot be kept within the normal electrical HN800 bus distance. ABB cRBX01 addresses that requirement as a redundant optical remote bus extender for the Symphony Plus platform. ABB specifies it for transparent extension of the HN800 I/O bus to remote devices over fiber, with distances up to 3 km using the specified multimode fiber. It can also extend the CW800 bus for peer-to-peer communication between SD Series HPC800 controllers.
The module operates at a 4 Mbps redundant bus rate and uses two ST-style fiber connections. ABB specifies 24 VDC power with a +16%/-10% tolerance and an ambient temperature range of -40°C to +70°C. The important procurement distinction is that cRBX01 is a bus-extension device, not a protocol converter or general-purpose Ethernet fiber switch. Its application must match the Symphony Plus HN800/CW800 architecture.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | cRBX01 / CRBX01 |
| Manufacturer | ABB |
| Product Type | Optical Remote Bus Extender / Fiber Optic Repeater |
| System Family | ABB Ability Symphony Plus |
| Primary Bus | HN800 |
| Additional Bus | CW800 |
| Communication Function | Redundant 4 Mbps HN800 I/O or CW800 peer-to-peer extension |
| Fiber Interface | 2 × ST-style connectors |
| Fiber Type | 62.5/125 µm multimode fiber |
| Transmission Mode | Multimode |
| Optical Wavelength | 840 nm |
| Fiber Bandwidth | 160 MHz/km |
| Fiber Attenuation | -3.5 dB/km |
| Maximum Remote Distance | Up to 3 km |
| Power Requirement | 24 VDC +16% / -10% |
| Ambient Temperature | -40°C to +70°C |
| Bus Application | Remote I/O and peer-to-peer communication |
| Configuration | Transparent operation; no application configuration required for the repeater function |
| Related Mounting Unit | RMU610 / VMU610 depending installation arrangement |
ABB’s hardware documentation specifies the 3 km distance when using 62.5/125 µm multimode fiber and identifies the cRBX01 as a redundant optical repeater for HN800. The newer hardware-selector documentation also states that each remote link can support up to 60 devices and that a controller can use up to eight remote links.
Application Scenarios & Field Considerations
Remote I/O Cabinets
A common use is separating an I/O installation from the main Symphony Plus controller cabinet. Instead of attempting to push the electrical bus through a long plant route, cRBX01 converts the physical link to fiber and provides the remote connection architecture specified by ABB.
Power Generation and Water Plants
Symphony Plus is used across power and water automation applications, and ABB specifically includes cRBX01 within its SD Series control and I/O portfolio. It is particularly relevant where remote I/O cabinets are separated by substantial physical distance.

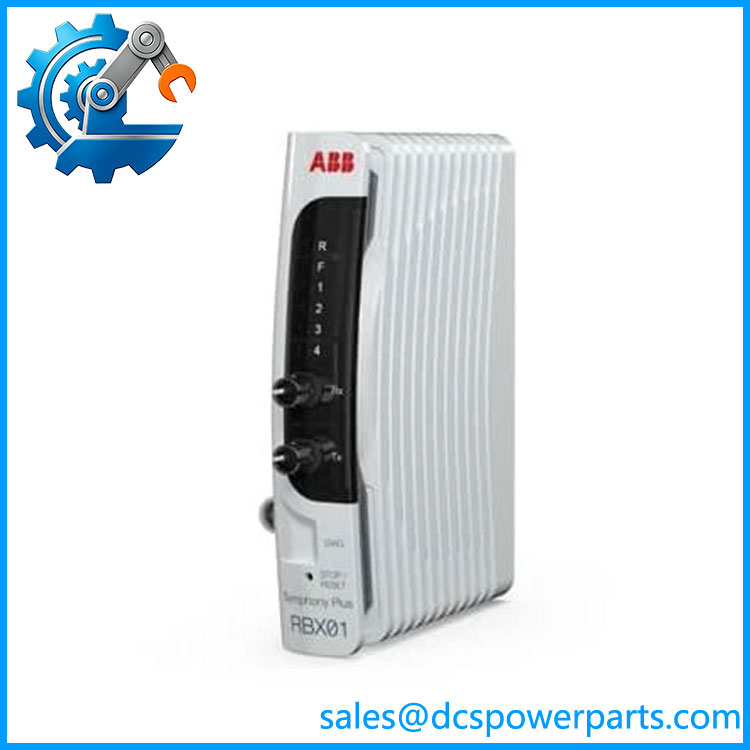

CRBX01
Distributed HPC800 Communication
The cRBX01 is not restricted to I/O. ABB also specifies it for extending CW800 peer-to-peer communication between SD Series HPC800 controllers. That distinction matters when determining whether the remote link belongs to an I/O architecture or a controller-to-controller architecture.
Remote Cabinet Retrofit
For an existing installation, fiber extension can be useful when the original electrical bus arrangement cannot reasonably be maintained. The engineering check should focus on the controller generation, bus topology, fiber type, termination, and associated mounting hardware—not simply whether the connector physically fits.
Related Products
- ABB HRBX01K02 — redundant remote I/O kit containing 2 × cRBX01 and 1 × RMU610 base. ABB identifies it as a complete redundant repeater arrangement.
- ABB HRBX01K04 — four cRBX01 modules with two RMU610 bases for a larger redundant remote-I/O arrangement.
- ABB VRBX01K02 — vertical mounting kit using cRBX01 modules and a VMU610 base.
- ABB VRBX01K04 — four-module vertical remote bus extender arrangement.
- ABB RMU610 — horizontal repeater mounting unit used with applicable cRBX01 configurations.
- ABB VMU610 — vertical mounting unit used in the corresponding vertical cRBX01 kits.
- ABB SPC700K01 — Symphony Plus process controller supporting remote I/O through cRBX01-based optical links. ABB documents up to 3 km optical connections with cRBX01.
- ABB SPC800K01 — newer SD Series process controller family within the Symphony Plus platform.
Engineer’s Guide — Field Pitfalls to Avoid
1. Do not treat CRBX01 as an Ethernet fiber converter.
The cRBX01 is designed around ABB’s /CW800 architecture. Its 4 Mbps fiber link should not be interpreted as a generic Ethernet interface.
2. Match the fiber specification.
ABB specifies 62.5/125 µm multimode fiber, 840 nm wavelength, and a 160 MHz/km bandwidth. A connector that physically mates with the module does not automatically make the installed fiber suitable for the specified 3 km link.
3. Do not confuse the module with the complete repeater kit.
A cRBX01 is the optical repeater module itself. HRBX01K02, HRBX01K04, VRBX01K02, and VRBX01K04 are bundled configurations that include mounting hardware and multiple cRBX01 modules.
4. Check the required bus architecture before replacement.
The same cRBX01 hardware can be used for extension or peer-to-peer applications, but the surrounding system configuration is different. Confirm the cabinet drawings and controller architecture before substituting hardware.
5. Verify optical polarity and termination during commissioning.
The two ST-style fiber interfaces and the physical fiber route need to be checked carefully. A replacement module can be electrically correct while the installed optical path still has a termination, polarity, attenuation, or fiber-type problem.
6. Do not assume the 3 km figure applies to every fiber installation.
The 3 km specification is tied to ABB’s stated fiber characteristics. Actual plant performance also depends on cable attenuation, connectors, splices, routing, and installation quality.
FAQ
What is ABB cRBX01?
ABB cRBX01 is a redundant optical remote bus extender for Symphony Plus. Its primary role is extending communication between Symphony Plus controllers and remote I/O devices over fiber. ABB also specifies it for peer-to-peer communication between SD Series HPC800 controllers.
How far can cRBX01 extend the bus?
ABB specifies distances of up to 3 km using 62.5/125 µm multimode fiber. The actual usable distance should still be checked against the installed cable’s optical attenuation and the complete link design.
What fiber does cRBX01 use?
The documented fiber specification is 62.5/125 µm multimode fiber. ABB lists an 840 nm wavelength, -3.5 dB/km attenuation specification, and 160 MHz/km bandwidth. The module uses two ST-style fiber connectors.
What is the power supply for cRBX01?
ABB specifies 24 VDC +16%/-10%. This should be distinguished from the power requirements of the associated mounting unit or other Symphony Plus modules.
Does cRBX01 require configuration?
ABB describes the cRBX01 repeater as transparent and states that the repeaters require no configuration. Remote I/O or communication modules can therefore retain the same function, performance, and capacity as their local counterparts within the supported architecture.
How many devices can a remote link support?
ABB’s current hardware-selector documentation specifies up to 60 devices per remote link, with up to eight remote links per applicable controller architecture. The exact system capacity should still be checked against the controller model and current system configuration.
Is CRBX01 interchangeable with another ABB fiber module?
Not on the basis of physical appearance alone. cRBX01 is specifically associated with Symphony Plus / bus extension. When replacing an installed unit, verify the controller family, bus type, optical specification, mounting arrangement, and whether the application requires a single module or a redundant kit.
