Description
- Key Features:
- PROFIBUS DP Master V0/V1 support
- Communication speed up to 12 Mbit/s
- 9-pin D-sub PROFIBUS connection
- Supports cyclic and acyclic data exchange
- Provides field device diagnostics
- Installed on TB711F terminal base fieldbus slot
- Designed for ABB Freelance AC 700F controller systems
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | CM772F |
| Order Number | 3BDH000368R0001 |
| Product Type | PROFIBUS DP Master Module |
| Automation Platform | ABB Freelance / AC 700F |
| Compatible CPU | PM783F |
| Communication Protocol | PROFIBUS DP V0/V1 |
| Fieldbus Function | DP Master |
| Transmission Rate | 9.6 kbit/s to 12 Mbit/s |
| Fieldbus Connector | 9-pin D-sub female |
| Maximum I/O Data | Up to 8 kB I/O and diagnostic data |
| Internal Interface | Dual-port memory coupler interface |
| Internal RAM | 256 kB |
| Firmware Memory | 512 kB Flash |
| Processor | EC1 |
| Clock Frequency | 48 MHz |
| Status Indicators | PWR, RDY, RUN, STA, ERR LEDs |
| Power Supply | Supplied through terminal base coupler interface |
| Current Consumption | Approx. 60 mA from 24 VDC supply |
| Mounting | TB711F CPU terminal base fieldbus slot |
| Weight | Approx. 150 g |
| Application | Distributed I/O, drives, field instrumentation communication |
Product Introduction
ABB CM772F 3BDH000368R0001 Overview

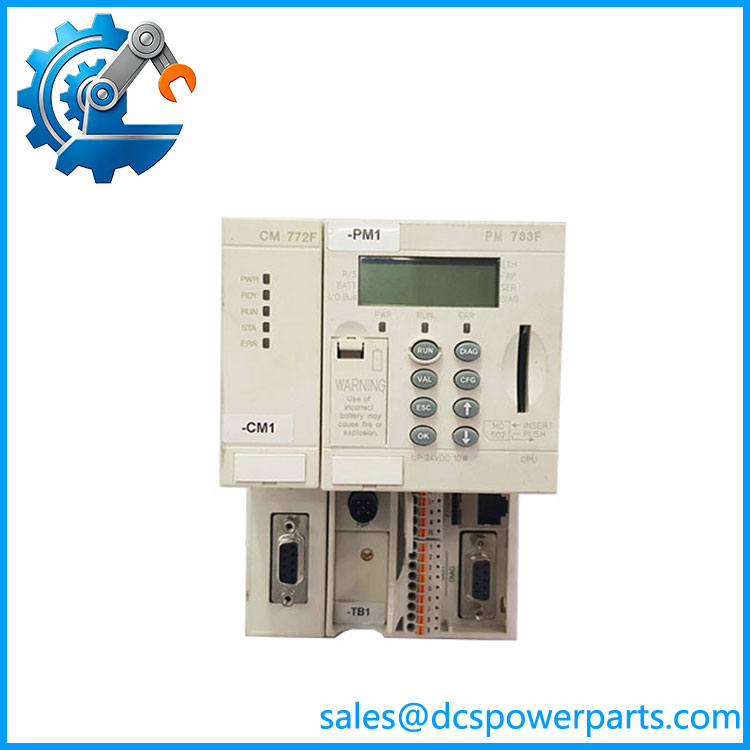

The ABB CM772F 3BDH000368R0001 is a PROFIBUS DP Master communication module designed for ABB Freelance AC 700F controller systems. It extends the communication capability of the PM controller by providing a dedicated interface for PROFIBUS DP networks used in industrial automation environments.
The ABB CM772F 3BDH000368R0001 allows the Freelance controller to exchange process data with PROFIBUS field devices, including remote I/O stations, motor control equipment, and intelligent instruments. As a DP Master module, it manages communication scheduling, cyclic process data exchange, parameter handling, and diagnostic information between the controller and connected PROFIBUS slaves.
The ABB CM772F is installed on the fieldbus slot of the TB711F terminal base and communicates internally with the CPU through the integrated coupler interface. The module uses dual-port memory communication between the CPU and fieldbus processor, allowing the controller application to access PROFIBUS data without direct processing of fieldbus protocol tasks.
Typical installations include process skids, utility systems, manufacturing equipment, and plant automation networks where PROFIBUS remains part of the control architecture. During replacement, engineers should verify the PROFIBUS configuration database, slave addresses, GSD files, bus termination, and Freelance project hardware configuration before commissioning.
CM772F 3BDH000368R0001
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A PROFIBUS network shows intermittent device loss, communication timeouts, or missing process values. The CM772F may be suspected, but PROFIBUS faults often originate from configuration, wiring, or field devices.
The troubleshooting path should include:
- PROFIBUS cable condition
- Shield and grounding quality
- Bus termination resistors
- Slave addressing
- GSD configuration
- Module diagnostic LEDs
- Controller hardware configuration
The ABB 3BDH000368R0001 handles PROFIBUS communication, but the complete fieldbus network determines overall communication reliability.
Typical Applications
Distributed I/O Systems
Used for:
- Remote digital I/O stations
- Analog input/output racks
- Field measurement devices
Motor Control Applications
Applied for:
- PROFIBUS variable frequency drives
- Motor starters
- Intelligent motor protection devices
Process Automation
Used in:
- Chemical plants
- Water treatment systems
- Utility control systems
Machine and Production Lines
Applied for:
- Modular automation equipment
- Packaging systems
- Manufacturing cells
Technical Pitfalls to Avoid
1. Verify PROFIBUS Network Parameters
Before replacement, confirm:
- Slave addresses
- Baud rate settings
- GSD file versions
- Module configuration
A hardware replacement without matching the PROFIBUS configuration can prevent communication startup.
2. Check Bus Wiring
Common PROFIBUS issues include:
- Incorrect termination
- Damaged RS-485 cable
- Poor shielding
- Ground potential differences
3. Confirm Freelance Engineering Configuration
Backup:
- Hardware structure
- PROFIBUS master settings
- Slave parameterization
- Application mapping
The hardware does not contain the complete control project.
4. Check CPU and Terminal Base Compatibility
Verify:
- PM783F controller type
- TB711F terminal base
- Fieldbus slot availability
- Firmware compatibility
The module is designed for specific Freelance controller architectures.
Related Products
- ABB PM783F 3BDH000364R0001
Central processing unit used with the PROFIBUS module. - ABB TB711F 3BDH000365R0001
CPU terminal base providing the mounting and internal communication interface. - ABB CI773F 3BDH000395R0001
PROFIBUS DP Master communication interface for other ABB Freelance controller configurations. - ABB CI930F 3BDH001010R0001
PROFIBUS DP Master module supporting newer Freelance controller generations. - ABB AX722F 3BDH000377R0001
Analog I/O module used in ABB Freelance S700 I/O systems. - ABB Freelance DCS
Process automation platform using PM controllers, communication modules, and distributed I/O.
