Description
ABB CI535V30 3BSE022162R1 | SPA Server Protocol Module | Advant OCS Communication
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| ABB Type Designation | CI535V30 |
| Product ID | 3BSE022162R1 |
| Product Type | Communication Module |
| Protocol | SPA Server Protocol |
| Bus | SPA Bus |
| Maximum Nodes | 50 |
| Product Family | Advant OCS |
| Controller Compatibility | Advant Controller 410 / 450 |
| Controller 410 Version | Version 1.5 |
| Controller 450 Version | Older versions / Version 2.3 |
| Product Net Weight | 0.15 kg |
| Product Height | 20 mm |
| Product Width | 245 mm |
| RoHS | Exempt from specified 2011/65/EU scope |
ABB’s product information identifies as a communication module with the specific description “SPA Server protocol SPA Bus, max 50 nodes.” ABB’s Advant Controller 450 documentation also lists as the program-module hardware for SPA Server protocol support.
Product Introduction
The ABB 3BSE022162R1 is a dedicated communication module for SPA Server protocol operation over the ABB SPA Bus. It belongs to the Advant OCS communication architecture and is documented for Advant Controller 410 and Advant Controller 450 installations. Its role is protocol-specific: it provides SPA Server support rather than functioning as a general-purpose Ethernet, PROFIBUS, or Modbus communication card.
The supports communication with up to 50 SPA Bus nodes. That makes it particularly relevant in older ABB process-control installations where SPA-based protection, monitoring, telemetry, or auxiliary equipment remains part of the operating architecture. For a replacement project, the exact controller generation and installed software configuration should be checked rather than assuming that another CI535 variant is interchangeable.

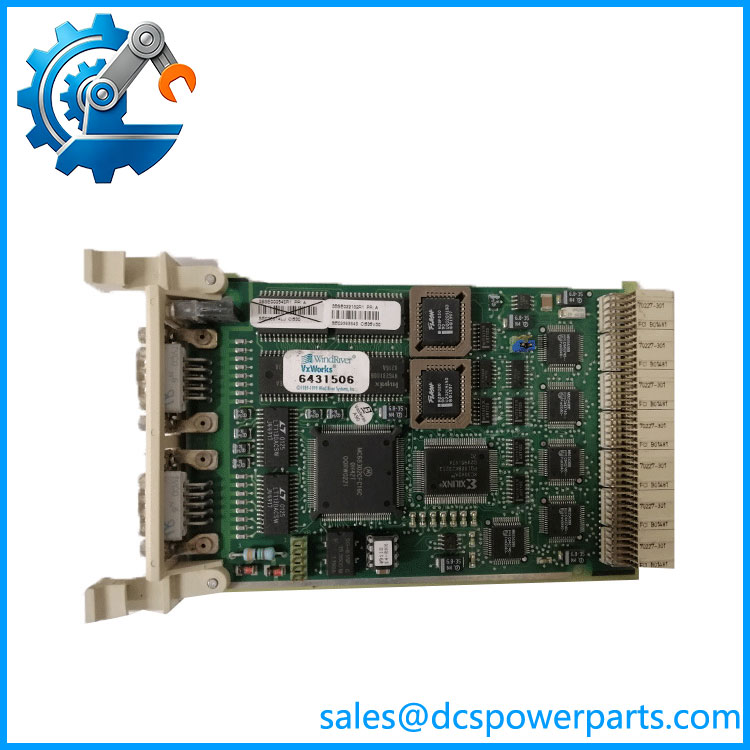

CI535V30 3BSE022162R1
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
Legacy Advant systems often remain in service long after the original communication architecture has become difficult to source. A failed can therefore affect more than simple data exchange: if the application depends on SPA Server communications, replacing it with a superficially similar communication board may leave the controller unable to communicate with the required SPA devices.
Typical Applications
- Advant Controller 450 systems — SPA Bus communication within older AC450 installations.
- Advant Controller 410 systems — documented communication-module support for the corresponding controller generation.
- SPA Bus device integration — communication with ABB and compatible field devices using the SPA protocol.
- Legacy DCS maintenance — maintaining an existing Advant OCS installation without changing the established SPA communication architecture.
- DCS migration projects — keeping SPA-dependent equipment operational while higher-level control-system migration work is being planned.
Technical Pitfalls to Avoid
- Do not classify it as a generic fieldbus card. ABB specifically identifies as a SPA Server protocol / SPA Bus module. Listings that attribute PROFIBUS, PROFINET, EtherNet/IP, or Modbus functionality to this exact part should be treated with caution.
- Do not confuse CI535 variants. The Advant Controller documentation lists CI535V24 for RP570 Master, CI535V29 for RP571 Master, CI535V23 for RP570 Slave, CI535V26 for IEC 870-5-101, and specifically for SPA Server protocol. The suffix is functionally significant.
- Check the controller generation. ABB categorizes under Advant Controller 410 Version 1.5 and Advant Controller 450 versions including Version 2.3. Verify the installed controller software and hardware revision before substitution.
- Verify the SPA Bus architecture. The stated maximum is 50 nodes, but the practical installation still depends on the existing SPA Bus topology, addressing, wiring, termination, and controller configuration. Do not interpret “50 nodes” as a guarantee that any 50 devices can simply be connected without engineering changes.
- Preserve the existing application configuration. On a legacy Advant system, the hardware module is only one part of the communication path. Backup the controller/application configuration and document existing SPA device addresses before replacing the module.
- Inspect revision and condition on surplus units. is associated with an older Advant control platform. For a used spare, check the board revision, connectors, storage conditions, and evidence of corrosion or component aging before putting it into a live DCS cabinet.
Related Products
- ABB CI535V24 3BSE022158R1 — CI535 communication variant for RP570 Master protocol; not a direct functional substitute for the SPA Server module.
- ABB CI535V29 3BSE022159R1 — CI535 variant for RP571 Master protocol.
- ABB CI535V23 3BSE022160R1 — CI535 variant for RTU RP570 Slave protocol.
- ABB CI535V26 3BSE022161R1 — CI535 variant supporting IEC 870-5-101 unbalanced RTU protocol.
- ABB CI531 3BSE003825R1 — another Advant OCS communication module used in the broader AC400 communication architecture.
- ABB CI532V02 3BSE003827R1 — Advant communication module from the same general legacy AC400 platform.
- ABB CI532V03 3BSE003828R1 — later CI532 communication-module variant.
- ABB TC520 3BSE001449R1 — system status collector used with Advant Controller 450/460 architectures; complementary system hardware rather than a SPA protocol replacement.
- ABB Advant Controller 450 — primary controller platform in which is documented as a communication option.
Procurement Note
For , the most important purchasing check is the exact communication function, not simply the family number. Confirm that the installed application requires SPA Server protocol over SPA Bus, then verify the controller version, board revision, and existing SPA node configuration before installation.
ABB continues to list among the Advant Controller connected-product population, while the underlying platform is clearly a legacy Advant architecture. For plant maintenance, an exact tested spare is generally preferable to an unverified -family substitution.
