Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | BCU-12 |
| ABB Product ID | 3AUA0000110430 |
| Manufacturer | ABB |
| Product Family | ACS880 Industrial Drives |
| Product Type | Converter / drive control unit |
| Control Board | BCON-12 |
| I/O Connector Board | BIOC-01 |
| Fiber-Optic Connections | 7 |
| External Supply | 24 VDC |
| Option Slots | 3 |
| Memory | Removable memory unit / SDHC data storage |
| Service Interface | Integrated Ethernet port |
| Drive-to-Drive Link | XD2D, RS-485 |
| Communication Option | RDCO DDCS option slot |
| Mounting | DIN rail / equipment-specific installation |
| Net Weight | Approx. 1.7 kg |
ABB identifies the BCU-12 as one of three BCU control-unit variants. The key distinction is the number of converter-module fiber connections: BCU-02 has 2, BCU-12 has 7, and BCU-22 has 12. ABB states that these variants are otherwise similar and that a BCU-22 can replace a BCU-12 where the additional connections are acceptable.
Product Introduction

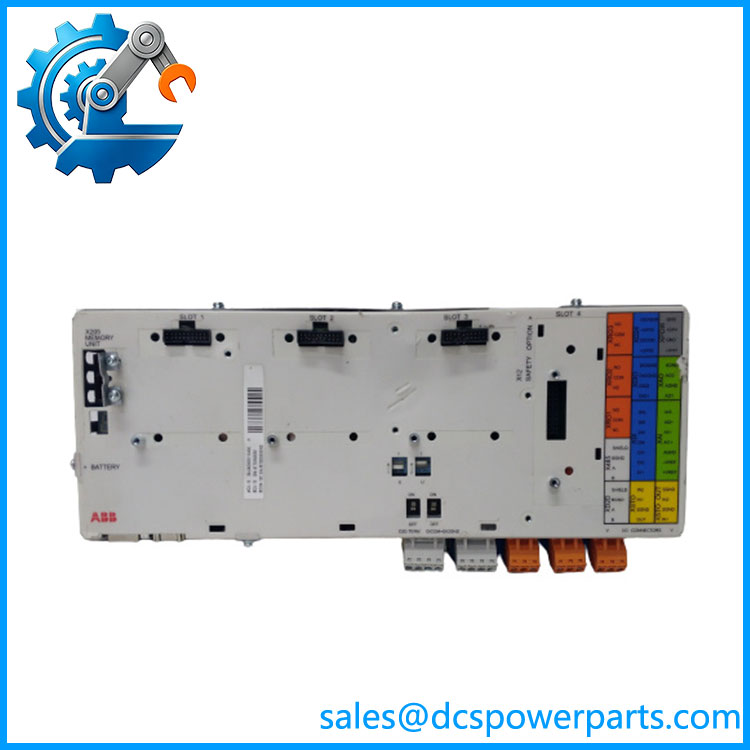

The ABB BCU-12, 3AUA0000110430, is a control unit used in ACS880 converter and drive systems. It contains a BCON-12 control board, BIOC-01 I/O connector board, and power-supply circuitry in a metal housing. Its primary task is to execute the drive control program and communicate with converter power modules through fiber-optic connections. The BCU-12 provides seven such connections, making it suitable for ACS880 configurations requiring multiple controlled power modules.
The unit also provides three option slots for I/O expansion, encoder interfaces, and fieldbus adapters, plus an Ethernet interface for PC-tool communication. A removable memory unit can retain existing parameters when the control unit is replaced, which is an important maintenance feature in an installed drive. ABB also documents an onboard data logger that stores real-time converter information on the SDHC card for fault analysis.
BCU-12
Application Scenarios & Field Pitfalls
Engineering Pain Point
The sits between the ACS880 control software and the actual converter power modules. A failed BCU therefore can look like a power-stage problem when the real issue is the control path, fiber connection, memory configuration, or auxiliary 24 VDC supply.
Typical Applications
- ACS880 multidrive systems controlling multiple inverter modules.
- High-power industrial motor drives where several power modules are managed from one control unit.
- Regenerative and supply/inverter configurations requiring fiber-optic communication with converter modules.
- Drive modernization projects where an existing ACS880 control architecture must remain in service.
Technical Pitfalls to Avoid
- Do not confuse with a power module. It is the control unit that commands converter modules; it does not contain the main motor-power switching stage.
- Count the required fiber connections. provides seven connections. BCU-02 has only two, while BCU-22 provides twelve.
- Transfer the memory unit correctly during replacement. ABB specifically recommends moving the memory unit from the old control unit to the replacement to retain existing parameter settings. The control unit must be de-energized before removing or installing the memory unit.
- Check the option hardware. Encoder, I/O, fieldbus, and RDCO DDCS requirements depend on the actual drive configuration. Do not assume that every has the same installed option boards.
Related Products
- BCU-02 — Same ABB BCU family with two fiber-optic converter connections; intended for smaller converter configurations.
- BCU-22 — Same family with twelve fiber-optic connections; ABB documents it as a possible replacement for when additional connection capacity is acceptable.
- BCON-12 — Main control board used inside the BCU-x2 control-unit assembly.
- BIOC-01 — I/O connector board used with the BCON-12 inside the BCU-x2 housing.
- ZCU-12 — ABB control unit for other converter frame configurations; not a direct substitute.
- ZCU-14 — Related control unit used on different converter frame sizes.
- RDCO-0x — Optional DDCS communication modules that can be installed through the BCU communication option interface.
- power modules — The controlled power stages connected to the BCU through fiber-optic links.
- FSO-12 / FSO-21 — Optional ABB functional-safety modules compatible with applicable BCU-based configurations.
Procurement Check
For , the safest purchasing identifier is ABB 3AUA0000110430 rather than the generic “” label alone. Confirm the seven fiber-optic connections, installed option modules, memory unit, firmware/control configuration, and host drive architecture before replacement. ABB’s own documentation is clear that the BCU variants differ primarily in converter-module connection capacity, so the number of connected power modules is a critical compatibility check.
