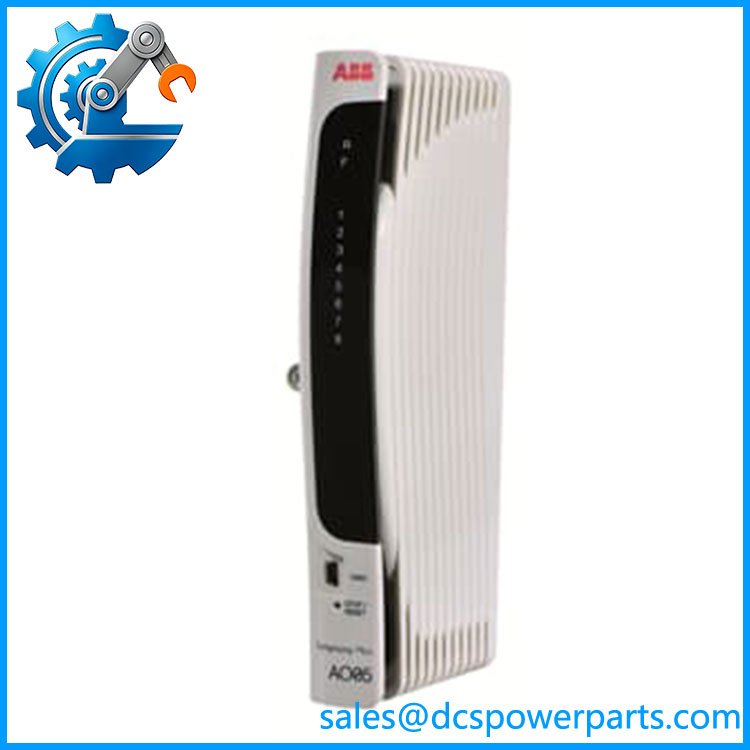

ABB AO05 Analog Output Module
Product Introduction
Process control loops often need more than a simple 4–20 mA command. When the output also has to carry HART information, maintain channel isolation, and provide predictable diagnostics, the I/O architecture matters. ABB AO05 is an 8-channel Symphony Plus SD Series analog output module that supports independently configured 4–20 mA or 1–5 VDC outputs, with a dedicated D/A converter and HART modem for each channel.
The engineering difference between ABB AO05 and simpler SD Series analog output cards is its channel-level architecture. Each output is individually isolated, and the module can handle up to four HART secondary variables per channel, for up to 32 secondary variables across the module. ABB also specifies 12-bit D/A resolution and ±0.1% full-scale accuracy. For a replacement project, the AO05 should be matched with the correct SD Series mounting base and controller configuration rather than treated as a generic 8-channel analog output card.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | AO05 |
| Manufacturer | ABB |
| Product Family | Symphony Plus SD Series I/O |
| Product Type | HART Analog Output Module |
| Number of Channels | 8 |
| Output Type | High-level analog output |
| Output Range | 4–20 mA or 1–5 VDC |
| HART Version | HART v5.4 |
| HART Modems | 8, one per output channel |
| HART Secondary Variables | Up to 4 per channel / 32 per module |
| HART Update Rate | 650 ms typical / 750 ms maximum |
| D/A Resolution | 12 bit |
| D/A Converters | Dedicated converter per channel |
| Current-Mode Load | 0–750 Ω |
| Voltage-Mode Load | 22 kΩ–1 MΩ |
| Accuracy | ±0.1% FSR |
| FSR Reference | 25 mA or 6.25 VDC |
| Current-Mode Short-Circuit Protection | Current limited to 26 mA maximum |
| Open-Circuit Detection | Less than 5 seconds in current mode |
| Channel Isolation | Individual channel-to-channel galvanic isolation |
| Field-to-Logic Isolation | 1500 V for up to 1 minute |
| Logic Power | 24 VDC ±10% |
| Logic Power Consumption | 58 mA typical / 75 mA maximum |
| Field I/O Power | 20 mA/channel at 24 VDC ±10% |
| Maximum Field Cable Length | 600 m / 1968 ft |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 20–95% at 40°C, non-condensing |
| Protection Class | IP20 |
| Form Factor | Standard, 190 mm |
| Mounting | Horizontal row or vertical column |
| Service Port | Mini-USB |
| SOE | No |
| Redundancy | No |
| Status LEDs | Run, Fault, and channels 1–8 |
These specifications are from ABB’s current Hardware Selector. ABB specifically identifies eight independently configurable channels, 12-bit D/A conversion, individual isolation, HART v5.4 support, and the 750 Ω maximum current-mode load.
Application Scenarios & Practical Pain Points
1. Control Valve Position Commands
AO05 can provide 4–20 mA control signals to valve positioners and other process actuators. The HART capability allows the control architecture to exchange secondary process or device information without requiring a separate analog input channel for every HART variable.
ABB AO05
2. Process Setpoint Generation
The 4–20 mA and 1–5 VDC ranges make the module suitable for sending analog commands to drives, controllers, positioners, and other field equipment. Each channel is configured independently, so current and voltage outputs can be assigned according to the application.
3. HART-Enabled Analog Control
A major reason to select rather than a conventional analog output card is the integrated HART architecture. ABB provides one HART modem per channel and supports up to four secondary variables per channel. This gives maintenance personnel access to additional device information while retaining the primary analog control signal.
4. Retrofit of Existing Symphony Plus SD I/O
fits the SD Series architecture and can be installed on HBS01-EPD or VBS01-EPD bases. This makes it relevant for existing Symphony Plus cabinets where an analog output module needs replacement without redesigning the complete I/O subsystem.
Related Products
- ABB AO01 — 16-channel high-level analog output module without HART; different channel count and isolation architecture.
- ABB AO02 — 16-channel HART analog output module; supports HART but differs from in channel count and architecture.
- ABB AI02 — SD Series HART analog input module.
- ABB AI05 — SD Series HART analog input module.
- ABB HBS01-EPD — Horizontal mounting/termination base compatible with .
- ABB VBS01-EPD — Vertical mounting/termination base compatible with .
- ABB HBS01-FPH — Different SD Series base arrangement; do not substitute without checking the field-power architecture.
ABB’s product catalog specifically describes as the higher-performance alternative to AO02, with individual channel isolation and a dedicated HART modem per channel.
Engineer’s Guide — Field Pitfalls to Avoid
1. Do not confuse with a conventional 4–20 mA output card
The module supports 4–20 mA, but its architecture includes HART functionality, channel isolation, dedicated D/A conversion, and device diagnostics. If the existing configuration relies on HART secondary variables, replacing it with a basic analog output module can remove functionality even if the primary current signal still works.
2. Check the mounting base
ABB identifies HBS01-EPD and VBS01-EPD as compatible bases for . The base determines the physical termination and field wiring arrangement, so the module part number alone is not enough for a cabinet replacement.
3. Check current-loop resistance
ABB specifies a maximum current-mode load of 750 Ω. Long cable runs, barriers, isolators, positioners, and other devices all contribute to loop resistance. Do not evaluate the output against the transmitter or positioner alone.
4. HART works in current mode
ABB specifies HART functionality for the current-output mode. A channel configured for 1–5 VDC should not be assumed to provide the same HART functionality simply because the module itself is labeled as a HART AO device.
5. Do not mistake module power for field-loop power
The electronics operate from a 24 VDC supply, while the field I/O architecture has its own specified power requirements. A 24 VDC control-cabinet supply does not automatically mean every field loop is correctly powered.
6. Verify HART configuration before replacement
The controller uses FC 221 for I/O device definition and FC 223 for individual analog-output configuration. Parameters include engineering units, alarm limits, and the default output value used when controller communication is lost. A replacement module therefore needs more than physical installation; the configuration should be checked as part of commissioning.
7. Inspect used modules carefully
For used hardware, inspect the terminal interface, module connector, front LEDs, housing, and signs of field overvoltage. A correct part number does not establish the condition of the D/A converters, HART modems, or output circuitry.
FAQ
What is ABB ?
ABB is an 8-channel HART analog output module for the Symphony Plus SD Series I/O system. Each channel can be configured for 4–20 mA or 1–5 VDC output, with individual channel isolation and a dedicated HART modem.
How many analog outputs does provide?
provides eight independently configurable analog output channels. Each channel has a dedicated D/A converter and can be configured independently for current or voltage output.
Does ABB support HART?
Yes. supports HART v5.4 in current-output mode. ABB specifies one HART modem per channel and up to four secondary variables per channel, giving a maximum of 32 secondary variables for the complete module.
What is the difference between and AO02?
Both are Symphony Plus HART analog output modules, but AO02 provides 16 outputs while provides eight. ABB describes as having individual channel isolation and a dedicated HART modem for each channel, along with the higher-performance architecture associated with that design.
Can replace AO01?
Not automatically. AO01 is a 16-channel analog output module without the same HART architecture. The correct replacement depends on the installed controller configuration, required channel count, HART requirements, mounting base, and field wiring. ABB lists these as separate SD Series products.
Which mounting bases are compatible with ?
ABB currently identifies HBS01-EPD and VBS01-EPD as compatible mounting bases. The horizontal/vertical installation arrangement and field wiring should be verified before ordering.
What should procurement verify before buying ABB ?
Match the exact designation and verify the installed base, controller configuration, output range, HART requirements, field-loop load, and module condition. For a used spare, request clear photos of the nameplate and connectors and verify the hardware revision where the existing system documentation requires it. The current ABB Hardware Selector lists as ACTIVE.
