Description
Product Overview

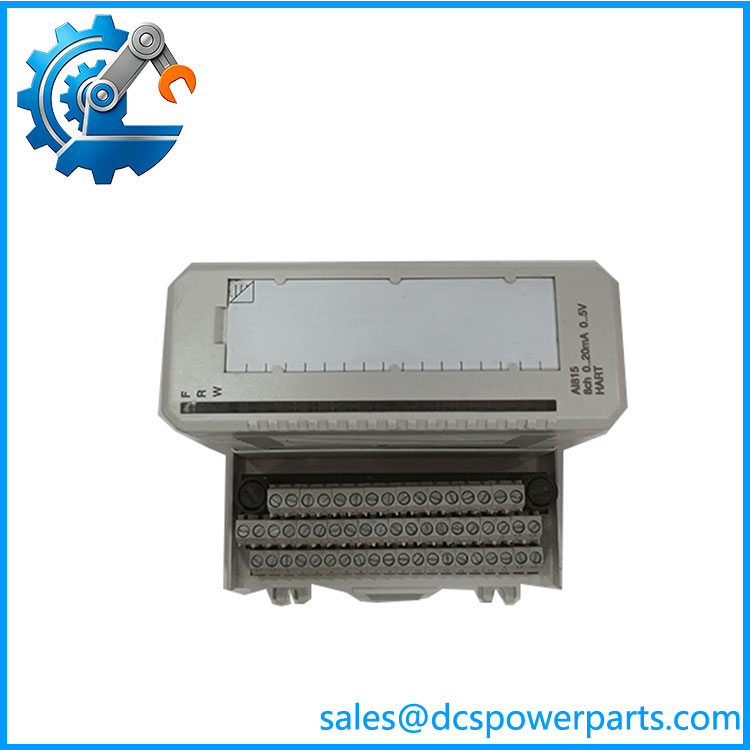

The ABB AI815 3BSE052604R1 is an analog input module designed for ABB S800 I/O systems used with ABB System 800xA and related control platforms. This module provides signal acquisition from industrial field transmitters by converting analog current and voltage signals into digital values for controller processing. The ABB AI815 3BSE052604R1 is part of the S800 I/O family and is commonly installed in process automation applications requiring accurate measurement of variables such as pressure, temperature, flow, and level.
The ABB AI815 3BSE052604R1 supports eight single-ended analog input channels and accepts 0…20mA, 4…20mA, 0…5V, and 1…5V signal ranges. Each channel includes transmitter power distribution with current limitation, allowing direct connection of compatible two-wire or three-wire HART transmitters. The module provides 12-bit resolution, group isolation from ground, and HART pass-through capability for transmitter diagnostics and configuration access.
Within ABB automation architectures, the ABB AI815 3BSE052604R1 connects through compatible S800 Module Termination Units and communicates with higher-level controllers through the ABB ModuleBus structure. Compatible MTU options include TU810, TU812, TU814, TU818, TU830, TU833, TU835, and TU838.
For engineers maintaining ABB DCS installations, this module is often selected for I/O expansion, replacement of failed analog input channels, or lifecycle support of existing control cabinets. To be completely transparent, matching the part number is only one step; the installed controller version, I/O configuration, termination unit type, and field transmitter requirements should be verified before commissioning.
The ABB AI815 3BSE052604R1 provides a practical solution for maintaining established ABB process control systems where reliable analog measurement and transmitter communication remain essential.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | ABB 3BSE052604R1 |
| Manufacturer | ABB |
| Product Type | Analog Input Module |
| Series | S800 I/O |
| Application Platform | ABB System 800xA / S800 I/O |
| Number of Channels | 8 |
| Input Signal Type | Single-ended unipolar analog input |
| Current Input Range | 0…20mA, 4…20mA |
| Voltage Input Range | 0…5V, 1…5V |
| Resolution | 12 bit |
| HART Support | Yes, pass-through communication |
| Input Impedance | 10 MΩ voltage input / 250 Ω current input |
| Accuracy | Maximum error 0.1% |
| Temperature Drift | Maximum 50 ppm/°C |
| Update Cycle Time | 10 ms |
| Input Filter | 290 ms rise time (0-90%) |
| Transmitter Supply | Current-limited transmitter power per channel |
| Isolation | Group isolated from ground |
| Power Dissipation | 3.5 W |
| Operating Temperature | 0°C to +55°C |
| Protection Rating | IP20 |
| Compatible MTU | TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838 |
AI815-3BSE052604R1
Related Products
- ABB AI810 3BSE008516R1 — analog input module without HART support. Suitable for standard current and voltage measurement applications where transmitter communication is not required.
- ABB AI820 3BSE008544R1 — Four-channel differential analog input module. Used where bipolar measurement and differential signal handling are required instead of single-ended inputs.
- ABB AI825 3BSE036456R1 — Galvanically isolated analog input module. Suitable for applications requiring additional channel isolation between field signals.
- ABB TU810V1 — Compact Module Termination Unit used with installations. Provides field wiring termination and module connection functions.
- ABB TU830V1 — Extended Module Termination Unit option for I/O configurations. Used when additional termination flexibility is required.
- ABB CI801 — I/O communication interface module. Provides the communication connection between I/O stations and higher-level ABB control systems.
- ABB PM864A 3BSE018161R1 — AC800M controller module. Acts as a processing unit for ABB control applications using I/O systems.
Frequently Asked Questions (FAQ)
1. What system is the ABB 3BSE052604R1 compatible with?
The ABB 3BSE052604R1 is designed for ABB I/O systems used with System 800xA and related ABB control platforms. It communicates through the ABB ModuleBus architecture and requires a compatible Module Termination Unit.
2. Can I hot-swap the ABB 3BSE052604R1?
Hot replacement depends on the installed ABB I/O configuration and system operating procedures.
Typical replacement steps:
- Confirm the I/O station supports module replacement.
- Save current system configuration.
- Remove the module under approved maintenance conditions.
- Install the replacement unit.
- Verify channel diagnostics and controller communication.
3. Does the ABB support firmware v3.1?
The is an I/O module rather than a standalone controller. Firmware compatibility depends on the I/O firmware level, controller version, and System 800xA release installed in the plant.
4. Will replacing the ABB erase my control logic?
No. The does not store the primary DCS application logic.
After replacement, engineers should verify:
- I/O channel configuration
- Signal scaling
- HART communication settings
- Controller recognition
5. How can I verify a New Surplus ABB 3BSE052604R1?
Recommended checks include:
- Confirm ABB label and ordering number.
- Verify and 3BSE052604R1 markings.
- Inspect terminal connections and housing.
- Confirm storage condition.
- Perform channel testing before field installation.
6. What field devices can connect to the ABB ?
The module supports compatible analog transmitters using:
- 4-20mA current loops
- 0-20mA signals
- 0-5V voltage signals
- 1-5V voltage signals
It can also pass HART communication when used with compatible transmitters.
7. Is the ABB suitable for ABB DCS modernization projects?
The is mainly used for maintaining and expanding existing ABB I/O installations. For modernization work, engineers should review the complete 800xA architecture, controller compatibility, field wiring, and I/O migration requirements before selecting replacement hardware.
