Description
ABB 81EU01H-E GJR2391500R1210 | PROCONTROL P14 Universal Input Module
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 81EU01H-E |
| Ordering Number | GJR2391500R1210 |
| Manufacturer | ABB |
| Product Family | PROCONTROL P14 |
| Product Type | Universal Input Module |
| Functional Units | 16 |
| Binary Signals | Contacts, changeover contacts, NAMUR initiators, electronic transmitters |
| 2-Wire Analog Signals | 4–20 mA, transmitter powered by module |
| 4-Wire Analog Signals | 0–20 mA, 4–20 mA, 0–5 mA with external supply |
| Station Bus | PROCONTROL station bus |
| Signal Processing | Configurable correction, filtering and limit calculations |
| Parameter Storage | EEPROM |
| Transmitter Supply | Short-circuit protected and monitored |
| Supply Voltage | 24 VDC |
| Dimensions | Approx. 198 × 261 × 20 mm |
| Approx. Weight | 0.5 kg |
The 81EU01H-E is described as consisting of 16 function units, with each unit configurable for different input modes. Its supported field signals include binary contacts, NAMUR initiators, electronic transmitters, 2-wire 4–20 mA transmitters, and externally powered 4-wire current transmitters.
Product Introduction
The ABB 81EU01H-E GJR2391500R1210 is a universal input module for the ABB PROCONTROL P14 control system. Its 16 function units allow binary and analog transmitter signals to be assigned according to the application, making the module substantially more flexible than a fixed-channel digital or analog input card.
The ABB 81EU01H-E GJR2391500R1210 also performs signal processing before information is transmitted through the PROCONTROL station bus. Individual analog signals can have limit values, correction functions, and filtering calculations assigned through the system configuration, while transmitter power is monitored and protected.

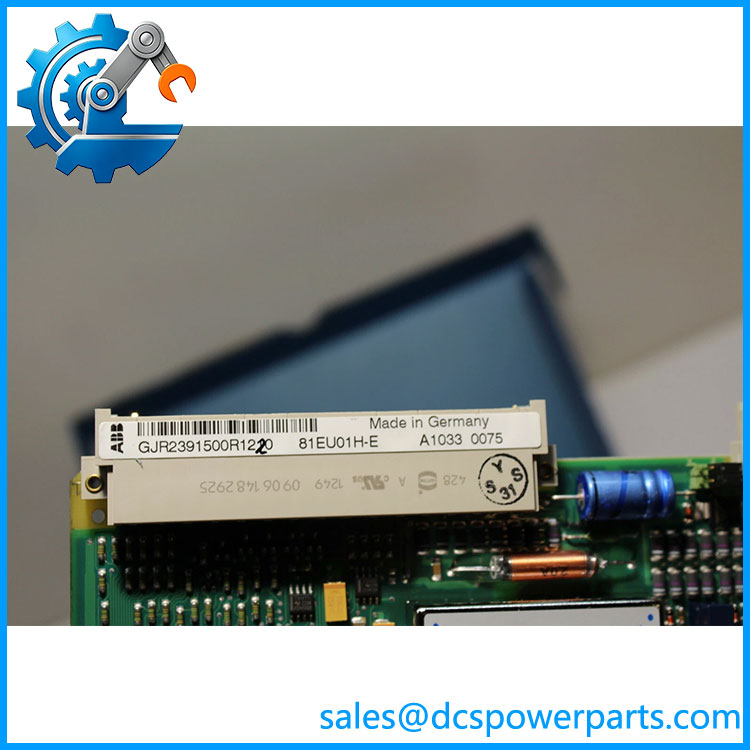

81EU01H-E
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The major procurement risk is misidentifying the 81EU01H-E as a power supply. Some current listings attach completely unrelated power-supply or frequency specifications to this part number, while multiple independent references identify it as a PROCONTROL P14 universal input module.
Typical Applications
- PROCONTROL P14 process control — acquisition of field transmitter and contact signals.
- Boiler and turbine auxiliaries — monitoring analog process values and binary equipment states.
- Industrial instrumentation — interface for 4–20 mA, 0–20 mA and compatible binary transmitters.
- Legacy ABB control-system maintenance — replacement of an installed 81EU01H-E without changing the overall PROCONTROL architecture.
Technical Pitfalls to Avoid
- Do not order it as a power supply.
The 81EU01H-E is an input module. The 24 VDC figure refers to its supply, not a high-power field output. - Check the configured function unit before rewiring.
The module contains 16 configurable function units. The physical module alone does not tell you how each channel is configured in the PROCONTROL application. - Distinguish 2-wire and 4-wire transmitters.
A 2-wire 4–20 mA transmitter can use the module’s transmitter supply, while 4-wire current transmitters require an external power source. The wiring and configuration should therefore be checked against the original engineering documentation. - Preserve the configuration data.
The module supports EEPROM-stored parameter allocation. Before replacement, record the existing configuration and signal assignments rather than assuming a replacement module will reproduce the installed application automatically.
Related Products
- ABB 83SR50C-E GJR2395500R1210 — related PROCONTROL P14 control hardware; different functional role from the 81EU01H-E.
- ABB 83SR51F-E GJR2396200R1210 — related PROCONTROL control module used elsewhere in the system architecture.
- ABB 81AA03C-E GJR2394100R1210 — analog-output-oriented PROCONTROL module; complementary rather than interchangeable.
- ABB 81EU01 family — closely related universal-input hardware; exact suffix and ordering number must be matched.
- ABB PROCONTROL station bus — communication infrastructure used by the 81EU01H-E to transfer processed input information.
- ABB PROCONTROL P14 — host control-system family for the module.
Procurement Note
For replacement, specify the complete identification:
ABB 81EU01H-E — GJR2391500R1210 — PROCONTROL P14 Universal Input Module
Before installation, verify the 16-function-unit configuration, binary versus analog signal assignments, 2-wire/4-wire transmitter wiring, transmitter supply requirements, station-bus configuration, and EEPROM/application parameters.
Most importantly, do not use listings describing 81EU01H-E as a 230 VAC/24 VDC power supply or a 50 kHz power controller. Those descriptions conflict with the available technical identification of GJR2391500R1210 as a PROCONTROL P14 universal input module.
