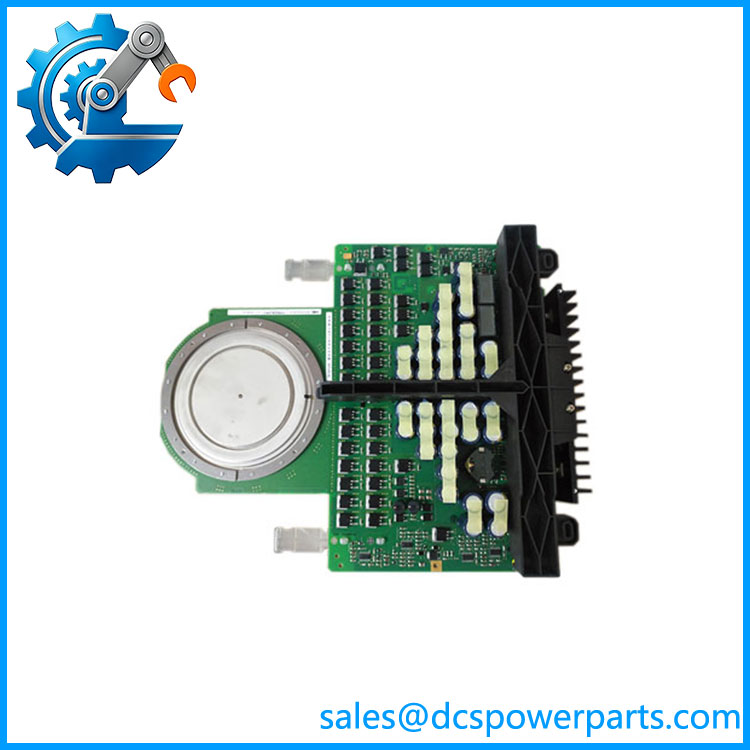

ABB 5SHY4045L0001 3BHB018162R0001 | IGCT Semiconductor Module with Gate Unit

ABB 5SHY4045L0001 3BHB018162R0001 | IGCT Semiconductor Module with Gate Unit

  • Model: 5SHY4045L0001 / 3BHB018162R0001 / 3BHE009681R0101 / GVC750BE101
  • Brand: ABB
  • Series: ABB IGCT Power Semiconductor Platform / GVC Gate Drive System
  • Core Function: High-power IGCT semiconductor module with dedicated gate drive unit for medium-voltage power conversion applications.
  • Product Type: IGCT Power Module + Gate Drive Unit
  • Key Specs:
    • IGCT rated voltage: 4500 V
    • Rated current: 4000 A
    • Gate drive unit: GVC750BE101
    • Application: Medium-voltage converters, industrial drives, power electronics systems
Add To Quote
Category: SKU: ABB 5SHY4045L0001 3BHB018162R0001

Description

Key Technical Specifications

Parameter Value
Product Model ABB 5SHY4045L0001
Material Number 3BHB018162R0001
Gate Drive Unit GVC750BE101
Gate Drive Material Number 3BHE009681R0101
Manufacturer ABB
Product Type Integrated Gate Commutated Thyristor (IGCT) Module
Semiconductor Technology IGCT
Rated Blocking Voltage 4500 V
Rated Current 4000 A
Peak Surge Current Approx. 35 kA
Switching Device Type Asymmetric IGCT
Gate Drive Voltage ±15 V typical
Cooling Method Forced air or liquid cooling depending on converter design
Application Medium-voltage drives, high-power converters, energy systems
Mounting Power converter cabinet assembly
Operating Temperature Verify according to converter platform



Product Introduction



ABB 5SHY4045L0001 3BHB018162R0001 GVC750BE101 Product Introduction

ABB 5SHY4045L0001 3BHB018162R0001 GVC750BE101 is a high-power IGCT semiconductor assembly used in ABB medium-voltage power conversion equipment. The assembly combines the 5SHY4045L0001 IGCT module with the GVC750BE101 gate drive unit, allowing controlled switching of high-voltage and high-current power circuits.

The main value of ABB 5SHY4045L0001 3BHB018162R0001 is maintaining installed converter systems where the power stage depends on matched semiconductor modules and gate electronics. Replacement requires verification of converter type, cooling arrangement, gate drive compatibility, and protection parameters before energizing the equipment.

5SHY4045L0001

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)



Engineering Pain Point

A failed power semiconductor inside a medium-voltage converter can take a complete drive system offline. In large motor applications, the failure is rarely isolated to the IGCT itself. Engineers must check gate drive behavior, snubber components, cooling performance, DC link conditions, and protection records before replacing the module.

Replacing an IGCT is a precision maintenance task. Mechanical installation is only one part of the work.



Typical Applications

  • Steel and Metal Processing – Medium-voltage motor drives for rolling mills, conveyors, and large production machinery.
  • Mining Operations – High-power variable-speed drives for crushers, mills, pumps, and ventilation systems.
  • Power Generation – Converter systems, excitation equipment, and high-power electrical conversion applications.
  • Marine and Industrial Propulsion – Medium-voltage drive systems requiring high-current switching devices.



Technical Pitfalls to Avoid

  1. Do Not Mix Unverified IGCT and Gate Drive Components
    The 5SHY4045L0001 module and GVC750BE101 gate unit are designed as a matched assembly. Confirm the complete part combination before installation.
  2. Inspect Cooling System Performance
    IGCT devices operate at high power levels. Blocked cooling channels, degraded fans, or incorrect thermal interface conditions can cause repeated failures.
  3. Check Converter Parameters Before Startup
    Verify firing signals, gate drive diagnostics, protection thresholds, and converter configuration data before applying full load.
