ABB 5SHY3545L0016 3BHB020720R0002 | ACS6000 Medium Voltage Drive IGCT Module, In Stock

Description

Key Technical Specifications

Product Introduction

ABB 5SHY3545L0016 3BHB020720R0002 Overview

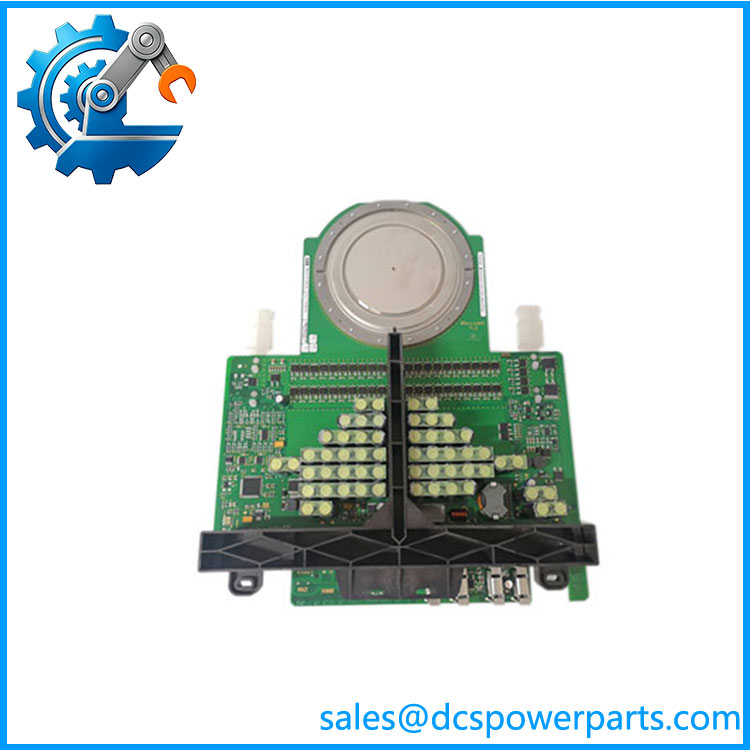

The ABB 5SHY3545L0016 3BHB020720R0002 is a high-power IGCT module assembly used in ABB medium voltage power conversion systems. It combines the press-pack IGCT semiconductor device with the associated gate control electronics required for controlled switching in large inverter and converter applications.

The ABB 5SHY3545L0016 3BHB020720R0002 assembly is typically associated with ACS6000-class medium voltage drives and similar ABB power electronics platforms. The supporting 3BHE019719R0101 and GVC736BE101 assemblies provide the gate interface and isolated control path required for IGCT operation.

5SHY3545L0016 3BHB020720R0002 3BHE019719R0101 GVC736BE101

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A medium voltage drive trips during acceleration or high torque operation. The fault log points toward an inverter phase problem, but replacing the IGCT immediately is not always the correct first step.

IGCT failures are often the final symptom. The actual cause may be cooling degradation, gate driver faults, DC bus imbalance, mechanical pressure issues in the press-pack assembly, or abnormal switching conditions.

The ABB 5SHY3545L0016 is part of the main power conversion path. Treat it as a system component, not an isolated semiconductor.

Typical Applications

• Mining Operations – Large conveyor drives, grinding mills, mine hoists, and high-power motor control systems.
• Steel Manufacturing – Rolling mill drives requiring precise speed and torque control.
• Oil & Gas Facilities – Medium voltage compressor and pump drives.
• Power Infrastructure – Converter systems, reactive power compensation equipment, and high-power electrical conversion systems.

Technical Pitfalls to Avoid

1. Check Gate Driver Compatibility

   The IGCT module and gate electronics are matched components. Verify compatibility between 5SHY3545L0016, GVC736BE101, and 3BHE019719R0101 before installation.

2. Inspect Mechanical Pressure and Cooling

   Press-pack semiconductor devices depend on correct mechanical mounting force and thermal conditions. Incorrect assembly pressure can create uneven current sharing and premature failure.

3. Investigate the Original Failure Cause

   A new IGCT installed into a system with a damaged snubber circuit, cooling issue, or faulty driver may fail again quickly. Review fault history before returning equipment to service.

Related Products

• ABB 5SHY3545L0014 3BHB013085R0001
  Related 4500V IGCT family component used in different ABB medium voltage drive configurations. Verify gate driver and mechanical compatibility before substitution.
• ABB 5SHY4045L0006 3BHB030310R0001
  Higher-current generation IGCT replacement family. Used where the original system design supports the newer semiconductor specification.
• ABB 3BHE019719R0101
  IGCT control interface module associated with the 5SHY3545L0016 assembly. Provides isolated communication between control electronics and the gate driver stage.
• ABB GVC736BE101
  IGCT gate driver unit used with compatible ABB power semiconductor assemblies. Handles gate triggering and protection functions.
• ABB ACS6000 Medium Voltage Drive Power Modules
  Converter building blocks using IGCT technology for large industrial motor applications.
• ABB ACS8000 Drive Components
  Related medium voltage drive hardware family. Compatibility depends on cabinet design and power stage configuration.
• ABB 5SHY4045L0004
  Another IGCT family device used in higher-current converter applications where electrical ratings match the system design.
• ABB PDD405A101
  Related control-side interface component used in ABB power converter architectures.
