Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| IGCT Model | 5SHY3545L0009 |
| ABB Product ID | 3BHB013085R0001 |
| Associated Product ID | 3BHE009681R0101 |
| Gate Unit | GVC750BE101 |
| Product Type | IGCT Module |
| Semiconductor Technology | Integrated Gate-Commutated Thyristor |
| ABB Catalog Description | 5SHY 3545L0009; IGCT MODULE |
| Primary Function | High-power switching |
| Application | ABB power converters / medium-voltage drive systems |
| Product Category | Drive spare / power semiconductor |
| Country of Origin Listed by ABB | Switzerland |
| Customs Tariff Number | 85413000 |
| Minimum Order Quantity | 1 piece |
| Selling Unit | Piece |
| Product Net Weight | 3.4 kg |
ABB’s product record gives the strongest confirmed identification: 3BHB013085R0001 = 5SHY3545L0009 = IGCT MODULE, with a 3.4 kg net weight, Swiss origin, and customs classification 85413000. It also lists this component as being used in several ABB power-electronics kits.
Be careful with published electrical figures. Secondary sources disagree substantially on voltage, current, dimensions, and switching characteristics. For example, one source reports 6.5 kV characteristics, while another publishes 4.5 kV-class values. Those numbers should not be copied into an engineering datasheet without the exact IGCT data sheet for the installed converter configuration.
Application Scenarios & Pain Points
A failed IGCT often leaves a very recognizable maintenance trail: converter faults, phase imbalance, DC-link abnormalities, or repeated power-stage trips. The temptation is to replace the semiconductor immediately. That can be expensive if the gate unit or clamping hardware caused the original failure.
- ABB medium-voltage drives: The 5SHY3545L0009 is used as a high-power switching component in ABB drive power stages. Secondary references specifically associate the device with ACS 6000-class equipment.
- High-power converters: The IGCT is intended for converter architectures where substantial current must be switched with controlled turn-on and turn-off behavior.
- Power-electronics refurbishment: Appropriate when an existing converter stack requires semiconductor replacement while retaining the original cabinet and control architecture.
- Matched gate-unit assemblies: GVC750BE101 is associated in current technical listings with the 5SHY3545L0009 device. The gate-unit interface should be checked together with the semiconductor rather than considered an unrelated board.
Field note: After an IGCT failure, inspect the gate-drive circuit, snubber network, busbar connections, clamping pressure, cooling path, and adjacent semiconductor devices. A shiny replacement IGCT will not survive long if the original overcurrent or commutation fault remains.
5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101
Related Products
- ABB 5SHY3545L0009 / 3BHB013085R0001 — Exact IGCT module requested. This is the power semiconductor itself and should be matched by complete ABB identification before replacement.
- ABB GVC750BE101 / 3BHE009681R0101 — Associated gate-unit/control hardware. It provides the interface and gate-drive function required to control the IGCT; it is not an alternative semiconductor.
- ABB 5SHY3545L0010 / 3BHB013088R0001 — Related IGCT designation in the same general ABB power-semiconductor family. It has a different ABB Product ID and should not be treated as a drop-in replacement without converter-specific verification.
- ABB 5SHY3545L0003 — Another 5SHY3545 family IGCT variant. The suffix is significant; electrical characteristics and application requirements must be checked before substitution.
- ABB 5SHY3545L0005 — Related IGCT variant within the same semiconductor family. Useful for cross-referencing legacy converter BOMs, but not automatically interchangeable with L0009.
- ABB 5SHY3545L0014 — Another member of the 5SHY3545 family. Different suffix and associated Product ID mean that the exact converter application must be checked.
- ABB 5SHY4045L0003 — Larger/different IGCT family used in other ABB converter applications. It can be relevant when comparing power-stage architectures, but it is not a direct substitute for 5SHY3545L0009.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do not substitute an IGCT by physical appearance.
Several 5SHY devices look similar. Their electrical characteristics, gate requirements, and converter application can differ.
How to avoid it: Match the complete 5SHY3545L0009 / 3BHB013085R0001 identification and verify it against the original converter BOM.
⚠️ Do not replace only the semiconductor after a catastrophic power-stage failure.
An IGCT can be the victim rather than the cause. A defective gate driver, snubber, cooling system, bus connection, or commutation circuit may destroy the replacement device.
How to avoid it: Inspect the complete switching cell before energization. Check gate-unit diagnostics, snubber components, mechanical clamping, thermal interface, and adjacent devices.
⚠️ Do not trust generic online electrical specifications.
Current secondary listings publish conflicting voltage/current values for this exact identifier. ABB’s accessible product record confirms the device identity but does not establish all of those detailed operating values.
How to avoid it: Use the exact ABB semiconductor data sheet and the converter-specific engineering documentation for the final electrical specification.
Frequently Asked Questions (FAQ)
What is ABB 5SHY3545L0009 3BHB013085R0001?

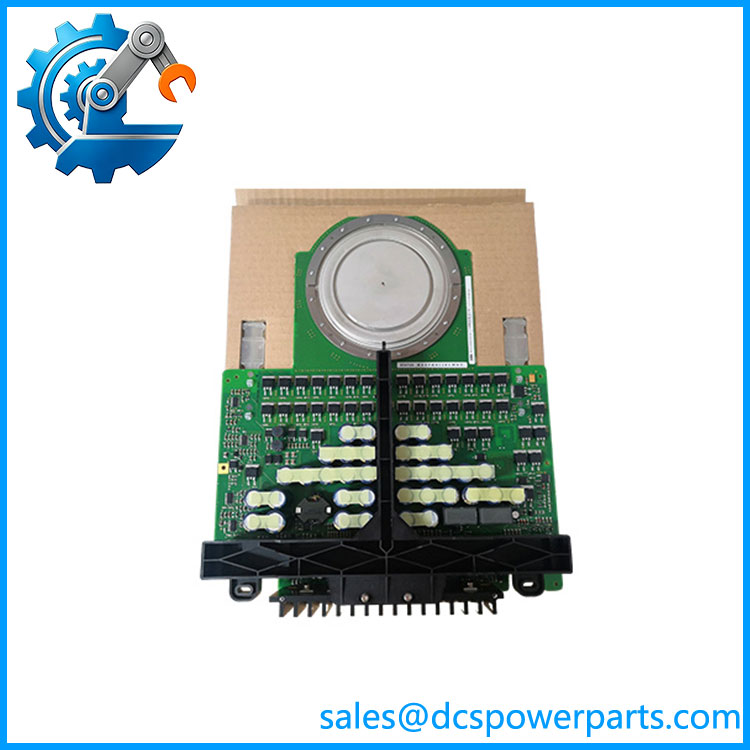

It is an ABB IGCT (Integrated Gate-Commutated Thyristor) module. ABB’s product record explicitly identifies 3BHB013085R0001 as 5SHY 3545L0009; IGCT MODULE.
What is GVC750BE101?
GVC750BE101 is associated with the gate-unit/control hardware used with the 5SHY3545L0009 IGCT assembly. Current technical references identify 3BHE009681R0101 with this GVC750BE101 designation.
Is 3BHE009681R0101 the same thing as 3BHB013085R0001?
No. They should be treated as different identifiers for associated hardware. The ABB-confirmed 3BHB013085R0001 is the IGCT module, while 3BHE009681R0101 is commonly associated with the gate-unit hardware.
Is 5SHY3545L0009 suitable for an ABB ACS 6000?
It is associated in technical references with ABB high-power drive systems, including ACS 6000 applications. However, suitability should be confirmed against the exact converter BOM and power-stack configuration rather than inferred from the drive family alone.
What should I inspect before installing a replacement IGCT?
At minimum:
- Exact IGCT part number and ABB Product ID.
- Gate-unit model and compatibility.
- Gate-driver fiber/interface condition.
- Snubber components.
- Heatsink and thermal interface.
- Mechanical clamping arrangement.
- Busbar and terminal condition.
- Adjacent semiconductor devices.
- Cooling system.
- Previous fault records.
No oxidation, pitting, or carbon tracking should be visible around the power connections. A few minutes spent inspecting the stack can prevent another expensive semiconductor failure.
Can another 5SHY3545 variant replace L0009?
Not automatically. L0003, L0005, L0009, L0010, and L0014 are distinct ordering variants. Their family resemblance is not enough to establish electrical interchangeability.
