Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | SCYC51010 |
| Part Number | 58052515G |
| Product Type | Firing Unit Card |
| Application System | ABB Vector Control / Power Converter Systems |
| Main Function | Thyristor trigger pulse generation |
| Controlled Device | Anti-parallel six-pulse thyristor bridge |
| Synchronization Method | Line voltage synchronized triggering |
| Trigger Output | Pulse signals to thyristor modules |
| Pulse Frequency | Approx. 56 kHz square wave |
| Pulse Duration | Approx. T/3 (about 5.6 ms at 60Hz system) |
| Auxiliary Voltage Monitoring | +15VDC monitoring with low-voltage trigger inhibition |
| Communication Interface | Via SCYC51040 bus adapter |
| Related Boards | SCYC51020 synchronization board, SCYC51100 phase control board |
| Installation | ABB converter control cabinet |
| Application Area | Medium voltage drives, excitation systems, industrial power converters |
Product Introduction

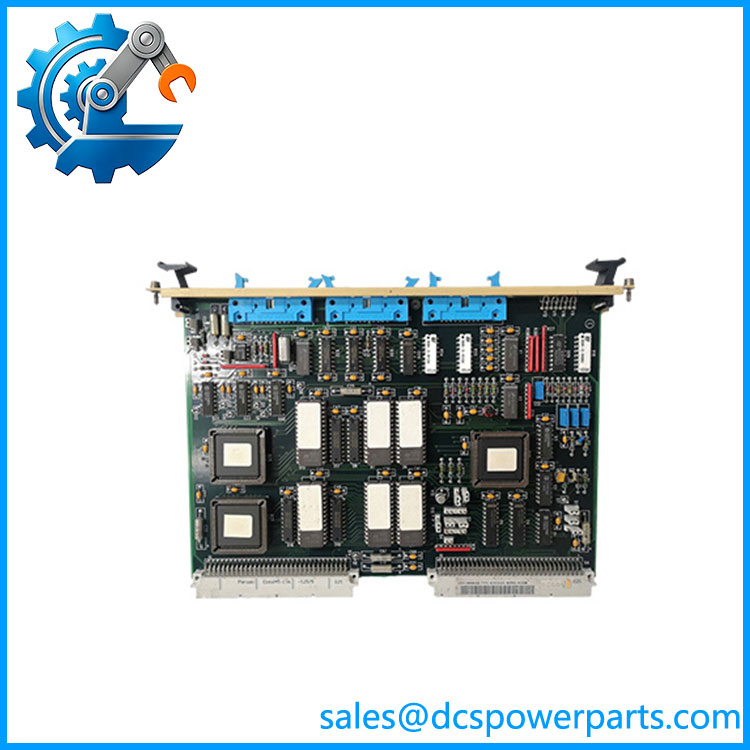

ABB SCYC51010 58052515G Overview
The ABB SCYC51010 58052515G is a firing unit card designed for ABB power converter and vector control systems. Its primary function is generating accurate trigger pulses for thyristor power devices, allowing controlled switching of converter bridges used in high-power motor drives and excitation applications.
The ABB SCYC51010 58052515G operates together with synchronization and interface boards to coordinate thyristor firing according to the incoming line voltage. In a typical configuration, the SCYC51020 provides synchronization information while the SCYC51010 processes firing commands and sends trigger signals through the converter control chain.
Unlike standard PLC I/O modules, the ABB SCYC51010 58052515G belongs to the power electronics control layer. Its performance directly affects converter switching behavior, motor torque response, and drive availability. Replacement requires verification of the complete converter design, board revision, and associated control hardware.
SCYC51010 58052515G
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A large motor drive trips with a converter firing fault. The control system remains online, communication appears normal, but the power section does not receive correct gate trigger commands.
In this situation, engineers often check the main controller first. However, the failure may be inside the firing chain: synchronization board, firing unit card, pulse amplifier, or thyristor gate interface.
The is located directly in this critical path.
Typical Applications
Medium Voltage Motor Drives
Used in ABB converter systems controlling large motors for:
- Mining conveyors and crushers
- Cement grinding equipment
- Large pumps and fans
- Metallurgical production lines
Industrial Excitation Systems
Applied in power conversion systems requiring controlled thyristor firing for generator excitation and high-power electrical regulation.
Process Industry Equipment
Used where precise control of high-power motors is required, including:
- Oil and gas auxiliary drives
- Chemical process machinery
- Utility infrastructure equipment
Technical Pitfalls to Avoid
1. Verify the Complete Converter Configuration
The is not a universal trigger board. Confirm the converter type, thyristor bridge arrangement, and related SCYC boards before replacement.
2. Check Synchronization Signals
A firing fault may originate from the synchronization path rather than the firing card itself. Inspect SCYC51020 operation, voltage sensing, and bus communication.
3. Inspect Auxiliary Supply Conditions
Low auxiliary voltage can inhibit firing pulses. Check +15V supply stability and converter cabinet power quality before replacing the board.
4. Confirm Board Revision
ABB power electronics boards often have hardware revisions tied to specific converter designs. Matching the complete ordering number is important.
Related Products
- ABB SCYC51020 58052582H
Synchronization board used with to provide line voltage timing information for thyristor firing control. - ABB SCYC51040
Bus adapter/interface board connecting firing and synchronization boards with the converter control computer. - ABB SCYC51100
Phase control board used in the firing control chain for thyristor converter applications. - ABB SCYC51111
Module board associated with thyristor trigger pulse distribution to power modules. - ABB GVC736BE101
Gate control unit used in ABB power converter assemblies with IGCT-based designs. - ABB GVC750BE101
Related gate control hardware used in ABB medium voltage converter platforms. - ABB ACS6000 Medium Voltage Drive
Medium voltage drive platform using advanced converter control and power semiconductor switching technology. - ABB ACS5000 Drive System
Medium voltage converter platform where similar firing and converter control concepts are applied.
