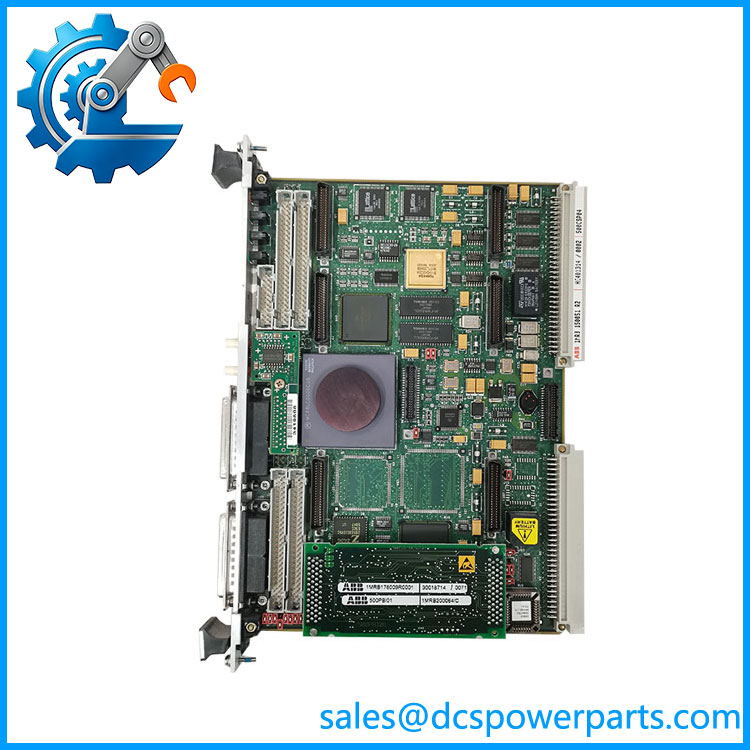

ABB 500CSP04 HE401314/0002 1MRB150051R2 | Communication Motherboard

Description

Technical Specifications

Product Introduction

The ABB 500CSP04 HE401314/0002 1MRB150051R2 is a legacy ABB 500-series system module associated with the internal communication and interconnection architecture of the control system. ABB-related documentation indexes the exact 500CSP04 identification alongside several other 500-series components, confirming its place within this hardware family.

The ABB 500CSP04 is frequently described by secondary sources as a communication motherboard or system communication module. That classification is more defensible than treating it as a conventional standalone PLC CPU or generic power supply. One industrial parts index specifically lists 500CSP04 / 1MRB150051R2 / HE401314/0002 as a communication motherboard.

500PB101

There are also conflicting commercial descriptions that call the same part a power-supply module or a modern communication-synchronization processor. Those descriptions include specifications such as Gigabit Ethernet, IEEE 1588, PROFINET, IEC 61850, ARM processors, and 24 VDC operation, but I could not corroborate those claims against reliable ABB documentation.

For this reason, the 1MRB150051R2 and HE401314/0002 markings should be treated as the primary identification when sourcing the part.

Main Features & Field Considerations

500-series system integration
The 500CSP04 belongs to a legacy ABB hardware family that includes dedicated CPU, communication, interface, and I/O modules. Its function should be evaluated within the complete system rather than as an independent modern PLC module.

Internal communication role
Available parts references classify the 500CSP04 as a communication motherboard. This indicates that its role is primarily associated with internal system interconnection rather than direct field signal acquisition.

Exact revision matters
The identification contains three useful references:

• 500CSP04
• HE401314/0002
• 1MRB150051R2

All three should be retained when purchasing a replacement.

Replacement checks

Before replacing an ABB 500CSP04, verify:

1. Complete part number
2. Hardware revision
3. Installed rack/system
4. Associated CPU
5. Communication modules
6. Backplane/connector arrangement
7. Power connections
8. Existing configuration
9. Firmware compatibility

Troubleshooting Considerations

If a 500CSP04-associated system develops intermittent communication or module-recognition problems, inspect the complete hardware path rather than immediately condemning the motherboard.

Recommended checks include:

• Module seating
• Backplane connections
• Connector condition
• Power-supply stability
• Associated CPU status
• Communication-module status
• System configuration
• Hardware revision compatibility

For intermittent faults, inspect connectors and backplane contacts carefully. Legacy equipment can develop contact resistance or mechanical issues after long periods of service.

Procurement Note

For ABB 500CSP04 HE401314/0002 1MRB150051R2, I recommend listing all three identifiers in the procurement description. The exact combination is supported by ABB-related documentation and multiple industrial parts references.

I would not publish specific claims about Gigabit Ethernet, IEEE 1588/PTP, PROFINET, IEC 61850, CPU speed, RAM, or 24 VDC input for this exact unit without an ABB technical document. Those specifications appear in some commercial listings but are not sufficiently corroborated and may represent fabricated or conflated information.

For a legacy installation, match the 500CSP04 + /0002 + 1MRB150051R2 identification and verify the surrounding system architecture before installation.
