Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB / SattControl |
| Model | OCAHG |
| Part Number | 492838402 |
| Product Type | Analog Output Module |
| I/O Function | Analog signal generation |
| Number of Channels | 4 analog outputs |
| Output Voltage Range | 0–10V |
| Output Current Range | 0–20mA / 4–20mA |
| Resolution | 8 bits |
| Signal Adjustment | Hardware selectable by straps |
| Channel Isolation | Analog circuits isolated from digital control logic |
| Channel-to-Channel Isolation | No galvanic isolation between channels |
| Manual Control Function | Supported through DDC/MAN inputs |
| Output Retention | Maintains output values during CPU failure |
| Mounting | SattControl rack-based I/O installation |
| Application Platform | SattCon / SattLine automation systems |
| Status | Legacy spare module |
Product Introduction

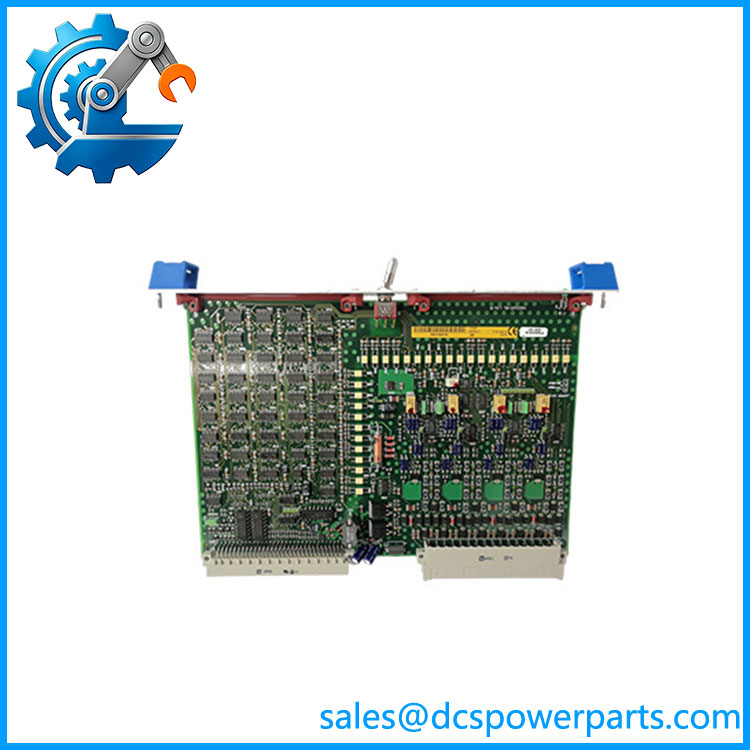

ABB OCAHG 492838402 Overview
The ABB OCAHG 492838402 is a four-channel analog output module designed for ABB SattControl automation systems. It generates continuous control signals for field devices such as control valves, actuators, drives, and process instruments. The module supports selectable 0–10V, 0–20mA, and 4–20mA output ranges.
The ABB OCAHG 492838402 is used in legacy PLC and process control installations where maintaining the original SattControl architecture is often preferred. Its output retention function and isolated analog circuitry make it suitable for applications where stable actuator commands are required during controller disturbances.
OCAHG 492838402
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A production line continues running, but a control valve slowly drifts away from its commanded position. The PLC logic looks correct, the field actuator responds, but the analog output signal is unstable.
Analog output modules are frequently overlooked during troubleshooting. Engineers often replace transmitters or actuators first, while the actual issue may be an aging output channel, incorrect signal range, or damaged wiring between the I/O card and field device.
The OCAHG 492838402 sits directly in the final control path. A small output deviation can affect process stability.
Typical Applications
- Chemical Processing – Continuous valve positioning, flow control loops, and dosing system adjustment.
- Water Treatment – Pump speed references, actuator positioning, and process regulation.
- Power Generation – Auxiliary system controls, damper positioning, and analog command outputs.
- Manufacturing Equipment – Analog references for drives, temperature controllers, and machine actuators.
Technical Pitfalls to Avoid
- Verify Output Signal Configuration
The OCAHG supports multiple output ranges. Confirm the hardware strap setting matches the connected field device before installation.
- Check Channel Loading
The output circuit must be matched with the input impedance of the receiving device. Incorrect loading can cause inaccurate output values.
- Inspect Analog Cable Shielding
Long analog signal runs are sensitive to electrical noise. Poor grounding or shielding can appear as an output module fault.
