Description
Product Overview

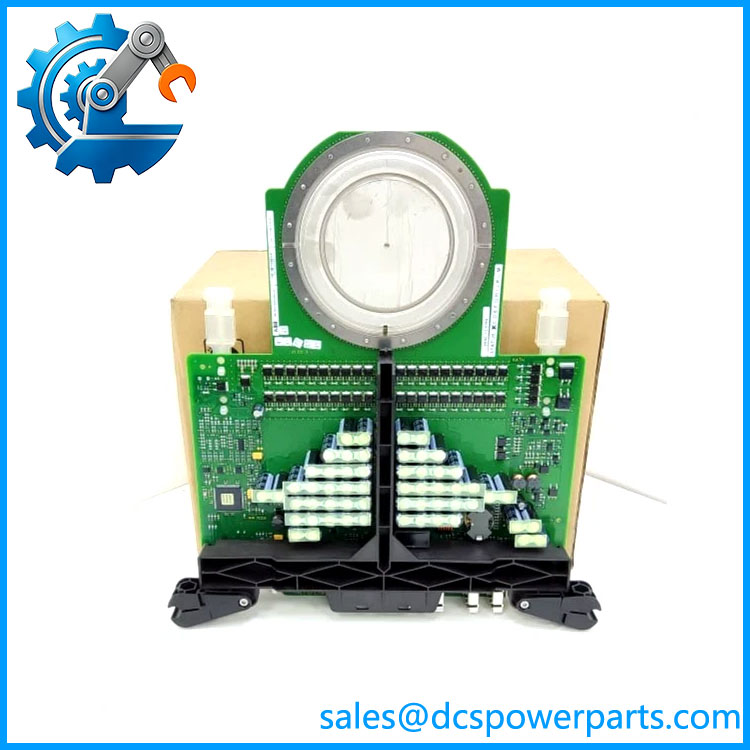

The ABB 3BHE039203R0101 is identified with the GVC736CE101 designation and belongs to the gate-drive electronics used around ABB high-power IGCT converter equipment. This is not a conventional PLC CPU, DCS controller, or general-purpose I/O module. Its function is much closer to the power stage: it provides the control interface required to drive and monitor an associated IGCT semiconductor assembly. Secondary technical references associate the board with ABB PCS6000 and ACS6000 medium-voltage converter systems and with the 5SHY4045L0006 / 3BHB030310R0001 IGCT assembly.
The ABB 3BHE039203R0101 therefore needs to be evaluated as part of a complete converter power unit. A gate-drive board cannot be selected on physical appearance alone. The semiconductor type, gate-drive interface, fiber connections, power supply arrangement, board revision, and converter configuration all have to agree. The available references identify GVC736CE101 as the gate-drive/control component associated with the 5SHY4045L0006 family, while 3BHB030310R0001 is the order code associated with that IGCT power device.
In practical maintenance work, this distinction is important. A failed gate-drive assembly can produce symptoms that initially look like an IGCT or converter fault: missing gate pulses, communication loss, drive inhibition, or a power-unit fault. Conversely, replacing the board without checking the semiconductor and fiber interface can simply move the problem downstream. For an ABB legacy drive repair or power-converter overhaul, the complete hardware chain should be identified before a replacement is released for installation.
Product Introduction (Non-Templated)
A conventional control-board replacement is usually straightforward. A gate-drive replacement is not. The ABB 3BHE039203R0101 / GVC736CE101 sits between converter control electronics and high-power IGCT hardware, where signal isolation, pulse integrity, and correct device matching directly affect converter switching.
For an ACS6000 or PCS6000 legacy replacement, verify the board designation, hardware revision, fiber arrangement, associated IGCT, and complete power-unit configuration before substitution. The commonly associated 5SHY4045L0006 / 3BHB030310R0001 should be treated as a related power semiconductor, not as an interchangeable version of the 3BHE039203R0101 board.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Part Number | 3BHE039203R0101 |
| Functional Designation | GVC736CE101 |
| Product Type | IGCT Gate Drive / Power Interface Board |
| Primary Function | IGCT gate-drive control and power-stage interface |
| Communication / Control Interface | Fiber-optic isolated interface |
| Associated IGCT Family | ABB 5SHY4045L0006 |
| Associated IGCT Order Code | 3BHB030310R0001 |
| Typical System Association | ABB PCS6000 / ACS6000 power-conversion systems |
| Application | Medium-voltage industrial power conversion |
| Installation | Converter power unit / cabinet electronics |
| Control-System Category | Power electronics component, not general PLC/DCS I/O |
The strongest available cross-reference identifies GVC736CE101 / 3BHE039203R0101 as the IGCT gate-drive control assembly and places it in ABB PCS6000/ACS6000 power-conversion applications. Another source identifies 3BHE039203R0101 as an associated interface/sub-module for the 5SHY4045L0006 gate-drive system.
I would not publish specific values for input voltage, output current, isolation voltage, operating temperature, or protection thresholds without the applicable ABB drawing or manual. Several reseller pages give substantially different numbers for these parameters, and some clearly misclassify the part as a general-purpose DCS controller. Those figures should not be copied into a procurement specification without primary documentation.
3BHE039203R0101
Related Products
- ABB 5SHY4045L0006 — High-power IGCT semiconductor associated with the GVC736CE101 gate-drive architecture. It is the power-switching device, not the control board.
- ABB 3BHB030310R0001 — Order code associated with the 5SHY4045L0006 IGCT module. Verify this identifier when checking the semiconductor side of the power unit.
- ABB 5SXE12-0184 — Identifier appearing in secondary references alongside and the 5SHY4045L0006 power-stage assembly. Confirm the exact cabinet documentation before treating it as a direct cross-reference.
- ABB 3BHE036204P201 — Associated interface/distribution hardware referenced with 3BHE039203R0101 in some converter configurations. It performs a different interface role and should not be substituted for the board.
- ABB 3BHE039204P106 — Another associated power/interface component reported in configurations using 3BHE039203R0101. Exact function depends on the converter cabinet revision.
- ABB PCS6000 — High-power converter platform associated with this gate-drive hardware in available technical references.
- ABB ACS6000 — Medium-voltage drive family also associated with the gate-drive architecture.
FAQ
What is ABB 3BHE039203R0101?
It is the ABB part number associated with the gate-drive/control assembly used around high-power IGCT converter hardware. It is a power-electronics component rather than a standard PLC or DCS controller.
Is 3BHE039203R0101 the same as ?
Yes, available cross-reference information identifies 3BHE039203R0101 with the designation. For procurement, both markings should be checked against the physical board because ABB assemblies can carry multiple identification numbers.
Is this the same component as 5SHY4045L0006?
No. The 5SHY4045L0006 is the associated IGCT power semiconductor, while is the gate-drive/control hardware used with the power device. They work together but are different components.
Can I use any board with an ABB PCS6000?
Do not assume that. Check the exact converter model, power-unit revision, board revision, fiber arrangement, associated IGCT, and cabinet drawings. A visually identical board with a different hardware revision may not be an approved replacement for a particular converter.
Can I hot-swap the 3BHE039203R0101?
No assumption of hot swapping should be made. This board is part of a high-power converter gate-drive circuit. The converter must be isolated and made safe according to the applicable ABB maintenance procedure before the board is removed.
Does 3BHE039203R0101 store PLC logic?
It should not be treated as a PLC program-storage module. Its documented role is associated with IGCT gate-drive and power-stage control, not execution of conventional PLC application logic.
What should I verify when buying a New Surplus 3BHE039203R0101?
At minimum, compare the 3BHE039203R0101 number, marking, PCB revision, connector arrangement, fiber-optic interface, and associated power-unit documentation with the installed board. If possible, also verify the associated IGCT identification. For this type of spare, an unopened package is useful, but matching the correct hardware revision is more important than the condition label alone.
