Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | KUC720AE01 |
| Part Number | 3BHB003431R0001 |
| Alternative Part Number | 3BHB000652R0001 |
| Product Type | Power Control Drive Board / Excitation Control Board |
| Application Platform | ABB UNITROL 5000 excitation system |
| Main Function | Generator excitation regulation and power control |
| Control Function | Closed-loop excitation current control |
| Signal Processing | Voltage/current measurement acquisition |
| Protection Functions | Excitation fault monitoring and protective control |
| Input Power Reference | System dependent (excitation cabinet configuration) |
| Installation | ABB excitation control cabinet |
| Application Area | Synchronous generator control |
| Compatible Equipment | ABB excitation and power control systems |
Product Introduction

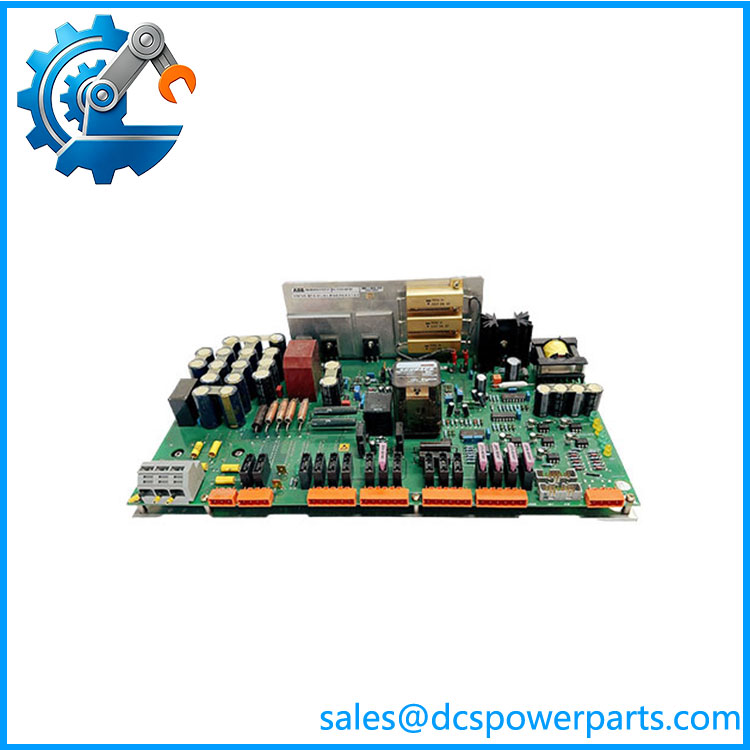

ABB KUC720AE01 3BHB003431R0001 Overview
The ABB KUC720AE01 3BHB003431R0001 is a specialized control board designed for ABB excitation and power control systems. It functions as a key electronic assembly within generator excitation equipment, supporting the regulation and supervision functions required to maintain stable generator voltage and reactive power performance.
The ABB KUC720AE01 is commonly associated with ABB UNITROL 5000 excitation systems, where it works together with power converter assemblies, measurement circuits, and controller modules to regulate excitation current supplied to synchronous generators. The board processes feedback signals and executes control functions required for stable generator operation.
The ABB KUC720AE01 3BHB003431R0001 receives measurement information such as generator voltage, current feedback, and system status signals, then participates in the excitation control loop to maintain the required operating conditions. In power generation applications, accurate excitation control directly affects generator voltage stability, reactive power control, and grid performance.
The ABB 3BHB000652R0001 reference is commonly associated with the same KUC720AE01 hardware family and may represent an internal board identification or earlier ordering reference depending on system documentation. Engineers should verify the complete equipment configuration before substitution.
The is installed in long-service generator control systems where maintaining the existing excitation architecture is often necessary due to commissioning records, control parameters, and plant-specific settings.
When replacing an ABB 3BHB003431R0001, engineers should confirm the UNITROL system type, board revision, firmware compatibility, excitation cabinet design, connected interface boards, and stored control parameters. A replacement board requires correct integration with the complete excitation system.
KUC720AE01
Application Scenarios & Field Considerations
Engineering Pain Point
Typical excitation system problems include:
- Generator voltage instability
- Excitation controller alarms
- Field current regulation errors
- Reactive power control issues
- Generator synchronization problems
The may be involved, but other possible causes include:
- Power semiconductor faults
- Voltage/current measurement errors
- Cooling issues
- Control parameter corruption
- Communication failures
Recommended troubleshooting steps:
- Review excitation controller diagnostics
- Check generator feedback signals
- Verify power converter condition
- Inspect control cabinet wiring
- Confirm parameter settings
- Compare replacement board revision
The provides control functions inside the excitation system, but generator performance depends on the complete excitation chain.
Typical Applications
Power Generation Plants
Used for:
- Synchronous generator voltage regulation
- Reactive power control
- Excitation current management
Hydroelectric Generators
Applied for:
- Generator excitation control
- Grid stability support
- Load response management
Thermal Power Plants
Used for:
- Turbine generator excitation
- Power factor regulation
- Electrical protection coordination
Industrial Power Systems
Applied for:
- Large motor-generator sets
- Captive power generation
- Standalone generator control
Technical Pitfalls to Avoid
1. Confirm UNITROL Compatibility
Before replacement, verify:
- UNITROL model
- Cabinet configuration
- Board revision
- Application software version
2. Check Generator Parameters
Confirm:
- Rated voltage
- Excitation current
- Reactive power settings
- Protection limits
3. Inspect Related Control Hardware
Check:
- Power converter modules
- Measurement boards
- Interface cards
- Cooling system condition
4. Preserve Existing Settings
Before removing the board:
- Backup excitation parameters
- Record hardware configuration
- Document wiring
- Save commissioning data
