ABB 3ASC25H219B DATX133 | Drive Feedback Monitoring Module

Description

Product Overview

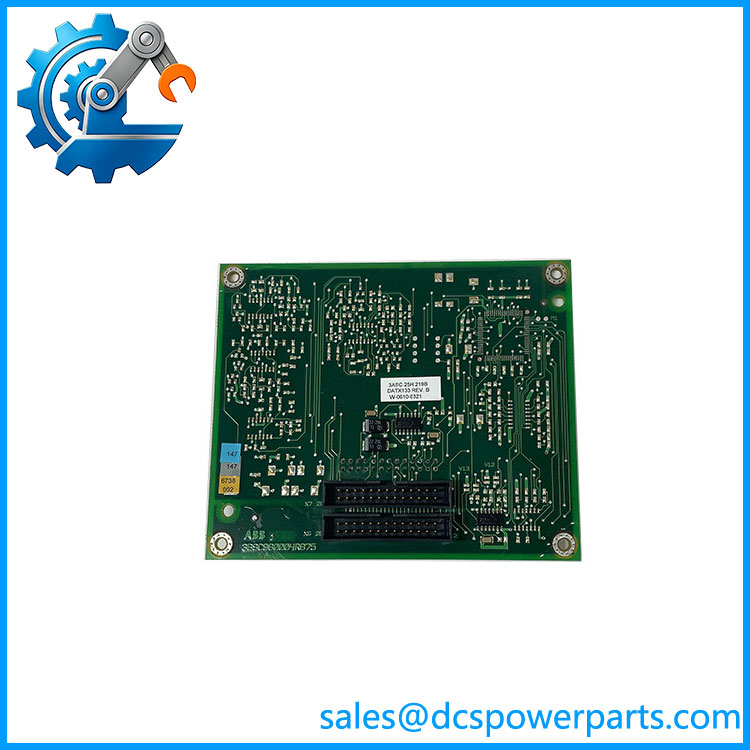

The ABB 3ASC25H219B DATX133 is a dedicated drive control board used within ABB industrial automation and power conversion systems. The module is associated with ABB DATX-series electronics and provides signal processing functions related to drive feedback, torque monitoring, and control regulation. The ABB 3ASC25H219B DATX133 is typically found in ABB drive platforms and industrial control equipment where precise motor operation, feedback evaluation, and drive diagnostics are required.

Within an ABB drive control architecture, the ABB 3ASC25H219B DATX133 works as part of the electronic control chain between measurement circuits, power components, and higher-level automation systems. The board processes feedback signals used by the drive controller to evaluate motor operating conditions and maintain proper control behavior. Depending on the installed drive platform, DATX boards may be integrated with ABB power electronics assemblies, control racks, and related interface boards.

The ABB 3ASC25H219B DATX133 remains important for maintenance teams supporting installed ABB drive equipment where complete system replacement is not practical. Common applications include industrial motor control systems, production machinery, process equipment, and power conversion installations. Before replacement, engineers should confirm the exact drive type, firmware environment, connected control boards, parameter backups, and hardware revision. To be completely transparent, drive control boards are highly application-dependent; installing a visually identical board without checking the complete control configuration can result in incorrect feedback scaling, communication faults, or unstable motor operation.

Product Introduction (Non-Templated)

A drive system can appear electrically healthy while incorrect feedback processing causes speed or torque regulation problems. The ABB 3ASC25H219B DATX133 restores the control board function responsible for monitoring and processing drive-related feedback signals.

Designed for ABB industrial drive architectures, this module supports legacy drive maintenance, control board replacement, and long-service automation equipment repair projects where original system compatibility is required.

Key Technical Specifications

Related Products

• ABB DATX110 3ASC25H209 — Related DATX control board used in ABB drive electronics. Suitable for applications requiring different feedback or interface functions.
• ABB DATX131 3ASC25H215E — Similar DATX-series board variant. Used in ABB drive control systems with different hardware configurations.
• ABB DAPU100 3ASC25H204 — Digital output/control interface board used with ABB industrial automation systems.
• ABB DCP10 — Controller module used in ABB Freelance and related control platforms. Provides higher-level control functions compared with DATX drive boards.
• ABB GVC736BE101 — ABB power electronics control component used in drive-related applications.
• ABB 3BHB Series Drive Boards — Power and control assemblies used in ABB medium-voltage and industrial drive platforms.
• ABB ACS600 Series Control Boards — Related ABB drive control hardware used in earlier-generation motor control systems.
• ABB ACS800 Series Control Boards — Drive control components used for industrial motor regulation and replacement applications.
