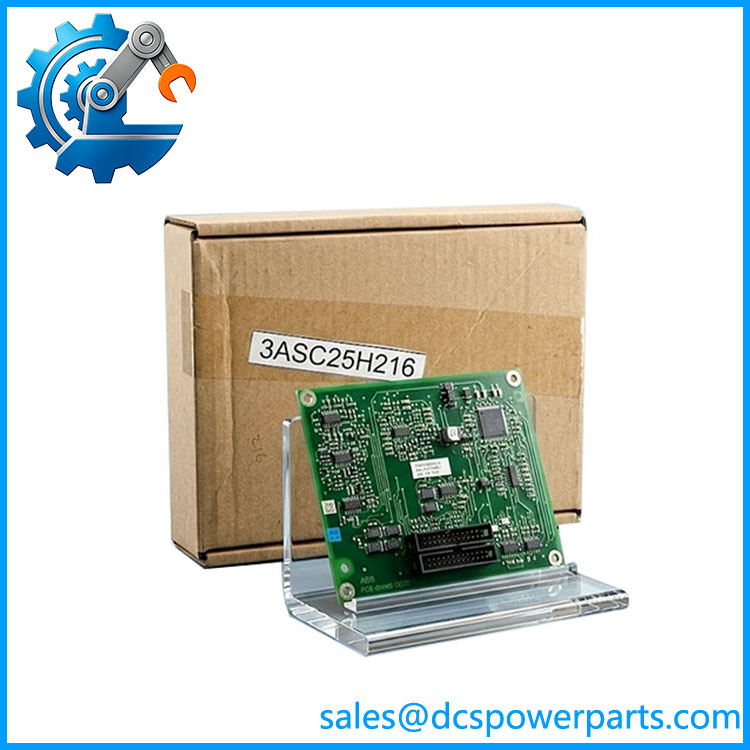

ABB DATX132 3ASC25H216A is a dedicated torque observer board used in ABB industrial drive systems where motor torque estimation and supervision are required. The board belongs to the ABB DATX family of specialized drive interface and measurement boards, working together with controller electronics to provide additional monitoring functions for converter and motor-control applications.
The ABB 3ASC25H216A DATX132 is not a standalone PLC I/O module or general-purpose controller. Its purpose is within the drive control loop, where it processes torque-related information and provides observation data to the main control electronics. In advanced motor applications, torque feedback and estimation are important for maintaining stable operation, protecting mechanical systems, and improving diagnostic capability.
The DATX132 3ASC25H216A is part of the same ABB DATX board family as other specialized boards, including the DATX130 rotor feedback board and DATX133 pulse repeater board. Although these boards share a similar industrial control heritage, their functions are different and they should not be substituted without confirming the exact drive configuration.
From a maintenance perspective, a faulty ABB DATX132 may appear as torque supervision alarms, drive regulation issues, or abnormal motor behavior. However, engineers should verify the complete control system before replacing the board. Problems may also originate from motor feedback devices, current measurement circuits, parameter settings, or the main controller.
When replacing 3ASC25H216A DATX132, confirm the installed drive platform, board revision, connector configuration, software parameters, and commissioning data. Board-level compatibility is only one part of successful restoration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | DATX132 |
| Part Number | 3ASC25H216A |
| Product Type | Torque Observer Board |
| Board Family | ABB DATX Series |
| Primary Function | Torque monitoring and observation |
| Application | ABB industrial drives and converter systems |
| Control Role | Drive measurement / supervision interface |
| Installation | Internal drive control assembly |
| Communication Interface | System-dependent internal ABB interface |
| Mounting Type | PCB board installation |
| Weight | Approx. 0.06 kg |
| Compatible Systems | ABB drive platforms using DATX-series boards |
ABB product information lists the catalog description as DATX 132; Torque observer board and identifies the product number as 3ASC25H216.
Main Features and Advantages
DATX132
Torque Observation Function
The primary role of the ABB 3ASC25H216A is providing torque observation capability within ABB drive systems.
Torque monitoring can support:
- Motor load supervision
- Drive performance analysis
- Mechanical load evaluation
- Protection functions
- System diagnostics
The board works together with existing drive control electronics rather than replacing the main controller.
Integration With ABB Drive Control Architecture
The is designed as a specialized component inside ABB converter and motor-control systems.
Typical architecture:
Drive Controller → Torque Observer Board → Motor/Feedback Measurement → Control Regulation
The board supports the information flow required for advanced drive monitoring functions.
Supports Industrial Motor Applications
Torque observation is useful in applications where load changes must be detected or controlled.
Typical equipment includes:
- Large production machinery
- Rolling equipment
- Pumps and compressors
- Hoisting systems
- Process drives
DATX Series Board Compatibility
The ABB DATX family contains multiple specialized boards with different purposes:
| Model | Function |
|---|---|
| DATX100 3ASC25H208 | Pulse transformer board |
| DATX120 3ASC25H210 | Remote I/O board |
| DATX130 3ASC25H214 | Rotor feedback board |
| 3ASC25H216A | Torque observer board |
| DATX133 3ASC25H219B | Pulse repeater board |
Matching the exact board number is essential because similar-looking DATX boards perform different functions.
Legacy ABB Drive Maintenance
Many ABB drive installations remain in operation for extended service periods. Keeping a tested spare 3ASC25H216A can help reduce downtime caused by aging electronic components.
Common failure symptoms may include:
- Torque monitoring faults
- Drive regulation instability
- Diagnostic alarms
- Incorrect load feedback
Application Scenarios
Industrial Drive Systems
Used in ABB motor control applications requiring torque monitoring.
Heavy Machinery
Typical applications:
- Steel processing equipment
- Mining machinery
- Material handling systems
- Large rotating equipment
Process Industry Drives
Used in:
- Pumps
- Fans
- Compressors
- Continuous production systems
