ABB 216VC62A HESG324442R112/F | REG 216 Processing Unit | Generator Protection Spare
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 216VC62A |
| Order Code | /F |
| Product Type | Processing Unit |
| Protection Platform | ABB RE.216 / REG 216 |
| Computing Capacity | 425% |
| Primary Function | Protection logic processing and configuration storage |
| Interbay Bus Role | Processor and IBB interface |
| Communication Protocols | SPA Bus, LON Bus, MCB Interbay Bus, MVB Process Bus |
| Configuration | User settings and protection assignments stored in processing unit |
| System Architecture | Modular RE.216 protection system |
Product Introduction
The is the processing unit used in the ABB REG 216 digital generator protection platform. ABB documentation identifies the 216VC62A as the unit in which the available protection and logic functions are stored, together with the plant-specific settings and the assignment of input and output channels to those functions. This makes the board a central processing element rather than a conventional I/O or relay-output module.
The unit also performs an interbay bus interface role in substation monitoring and substation automation applications. ABB documentation identifies SPA Bus, LON Bus, MCB Interbay Bus, and MVB Process Bus within this architecture. The suffix is therefore important during replacement because the correct processor must match the installed RE.216 hardware, configuration, and software environment.

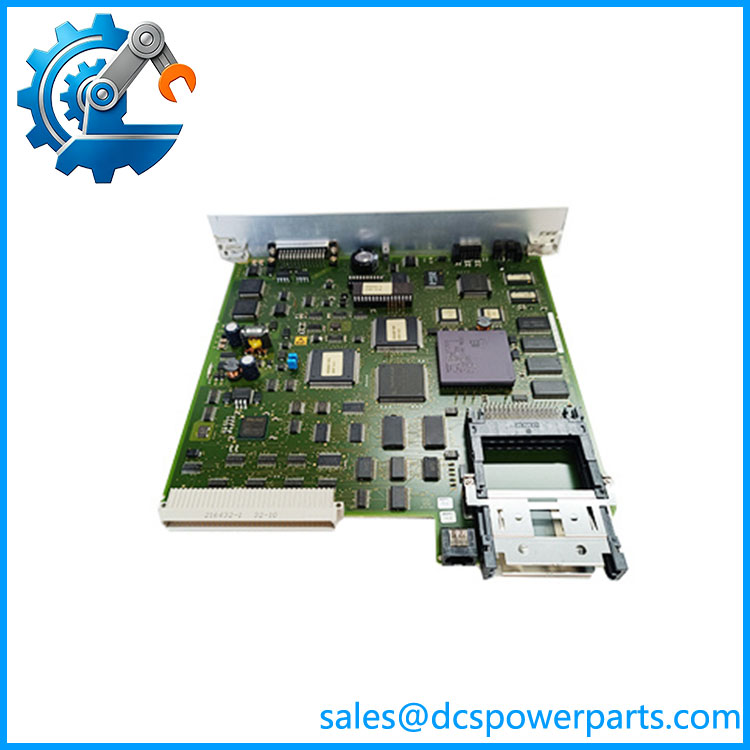

216VC62A HESG324442R112/F
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
When a legacy generator protection system develops a processor fault, replacing the board with something that merely looks electrically similar is not enough. The 216VC62A contains the protection application and configuration data used by the RE.216 system. A replacement therefore has to be treated as part of a protection-system configuration, not simply as a plug-in PLC CPU.
Typical Applications
- Generator protection: Central processing for REG 216 protection functions.
- Power station protection systems: Execution of configured protection and logic functions.
- Substation monitoring: Processor and interbay bus interface within applicable RE.216 architectures.
- Legacy protection-system maintenance: Replacement of failed or degraded 216VC62A processing units.
Technical Pitfalls
1. Do not confuse the board with a generic PLC processor.
The 216VC62A belongs to the RE.216 protection architecture. Its firmware, protection-function library, configuration, and rack connections are system-specific.
2. Configuration is part of the replacement risk.
ABB documentation states that user settings and protection I/O assignments are stored in the processing unit. Before replacing a failed unit, engineers should establish whether the existing configuration can be recovered and whether the replacement requires restoration through the applicable operator/configuration software.
3. Communication capability depends on the actual system configuration.
The RE.216 documentation identifies SPA Bus, LON Bus, MCB Interbay Bus, and MVB Process Bus. It should not be assumed that every communication option is physically populated or enabled on every installation.
4. Verify the complete order code.
For procurement, should be matched against the installed board marking and project documentation. Listings using only “216VC62A” may not provide enough information to establish an exact replacement.
5. Check the surrounding RE.216 hardware.
The processor operates within a modular equipment rack and parallel-bus architecture. ABB documentation notes that the rack and standard cable connections must correspond to the electronic units actually installed. A processor fault should therefore be diagnosed together with rack wiring, neighboring electronic units, auxiliary power, and configuration data.
Related Products
- ABB 216AB61 — RE.216 electronic unit used alongside the processing architecture.
- ABB 216DB61 — Related RE.216 electronic hardware.
- ABB 216MB66 — Equipment rack and parallel-bus assembly used by the RE.216 system.
- ABB 216NG61A — Auxiliary DC power supply unit associated with RE.216 equipment racks.
- ABB 216NG62 — Alternative auxiliary DC supply configuration within the RE.216 architecture.
- ABB 216VC62A HESG324442R13/B — Another documented 216VC62A ordering variant; verify the installed revision before substitution.
- ABB REG 216 — Digital generator protection platform using the 216VC62A processing unit.
- ABB REC 216 — Related digital control unit platform within the RE.216 family.
Procurement Note
For a replacement , prioritize the exact ABB order code, board revision, installed RE.216 rack configuration, and available protection configuration data. For a plant-critical protection application, a used or refurbished processor should not be accepted solely on visual condition; functional testing, configuration compatibility, and revision matching are more important than cosmetic appearance.
