Description
Product Overview

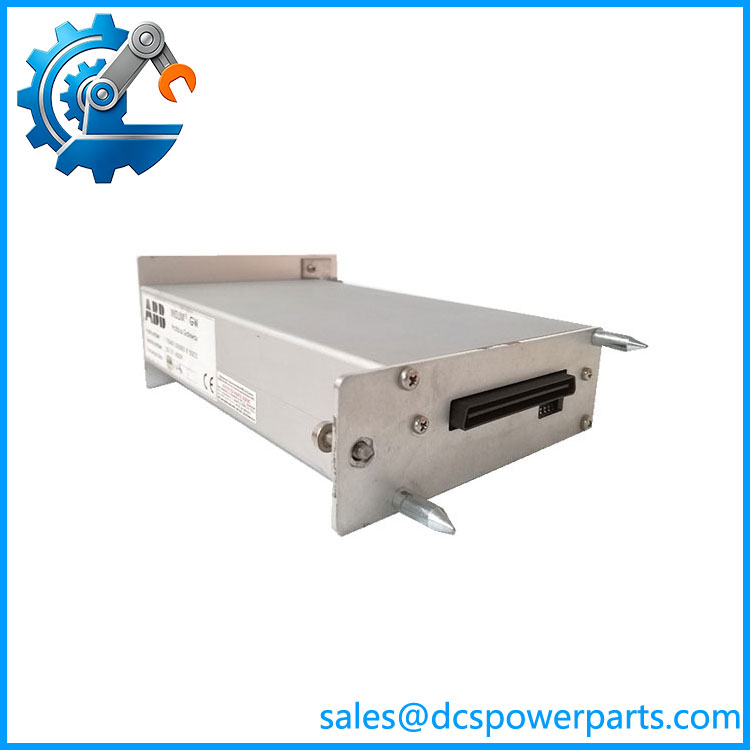

The ABB 1TGB302003R0003 is identified in available product references as a PROFIBUS gateway module used for industrial communication and system integration. Its primary role is to provide a communication path between compatible ABB equipment and a PROFIBUS network, allowing process data and control information to move between the field/device level and the supervisory or controller layer. One technical listing specifically identifies the part as an ABB PROFIBUS Gateway Module rather than a conventional analog or digital I/O card.
For ABB 1TGB302003R0003, however, the public technical record is inconsistent. Some current listings describe it as a general-purpose multi-protocol gateway, while another source identifies the same exact part number as a motor-control-unit component and reproduces material from an ABB MCU user guide. That conflict is important for procurement. I would not assign unsupported Ethernet ports, Modbus, PROFINET, EtherNet/IP, HART, power consumption, or DIN-rail specifications to this exact part number without the original ABB documentation.
The more defensible identification is ABB 1TGB302003R0003 as a PROFIBUS gateway/communication interface module. A product index also explicitly categorizes the same part number as a “Profibus Gateway Mod,” supporting this interpretation. In a legacy automation installation, the complete part number should be matched, followed by verification of the connected controller, PROFIBUS network configuration, station address, firmware, and physical interface. A visually similar communication module is not a safe substitute simply because it supports PROFIBUS.
Product Introduction
A failed gateway can leave field equipment healthy while making an entire section of the control network appear unavailable. ABB 1TGB302003R0003 is associated with PROFIBUS gateway functionality, providing the communication bridge required for compatible ABB installations.
For a legacy PROFIBUS network replacement, the network address, master configuration, device identity, firmware, and exact electrical interface should be checked together. The same part number is described inconsistently across public sources, so catalog-level assumptions are not sufficient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | 1TGB302003R0003 |
| Product Type | PROFIBUS Gateway / Communication Interface |
| Primary Function | Industrial communication and protocol interfacing |
| Network | PROFIBUS |
| Application | Industrial automation system integration |
| System Compatibility | ABB equipment; exact platform must be verified |
| Configuration | Application/system dependent |
| Firmware | Revision dependent; verify before replacement |
| Installation | System-dependent |
| Condition | New Surplus, subject to inspection and testing |
Technical caution: I would not publish specific values for supply voltage, current consumption, Ethernet speed, connector type, operating temperature, IP rating, or supported protocol list for this exact part number without a confirmed ABB datasheet. Several secondary sources assign conflicting specifications to 1TGB302003R0003.
Related Products
- ABB 1TGE120010R1300 — ABB control-unit hardware listed within the same broader product ecosystem. It performs a controller function rather than acting as a direct PROFIBUS gateway replacement.
- ABB 1TGE120011R2511 — Related ABB control-unit part number. Useful when checking the larger system architecture, but not a direct substitute for the 1TGB302003R0003.
- ABB AC800M — ABB controller platform frequently associated with industrial communication integration. The exact compatibility of the 1TGB part must be confirmed rather than assumed.
- ABB S800 I/O — ABB distributed I/O family that can form part of a larger control architecture. Its I/O modules are functionally different from a gateway.
- ABB CI854A — PROFIBUS-DP interface used with compatible ABB AC 800M systems. It provides a controller-side PROFIBUS interface and should not automatically be considered equivalent to the 1TGB302003R0003.
- ABB CI854B — Later PROFIBUS interface option within ABB’s AC 800M communication architecture. Application and controller revision determine whether it can serve as an upgrade path.
- ABB TB820V2 — S800 I/O backplane/modulebus component. It belongs to the I/O infrastructure rather than the gateway function.
- ABB TB826 — S800 I/O termination/interconnection hardware. It supports I/O installation but does not replace a PROFIBUS gateway.
1TGB302003R0003
Frequently Asked Questions
What is ABB 1TGB302003R0003 used for?
Available product references identify 1TGB302003R0003 as an ABB PROFIBUS gateway module. Its purpose is to provide communication between compatible industrial equipment and PROFIBUS-based control networks.
I would verify the actual installed system before assigning a more specific application because public descriptions of this exact part number conflict.
Is 1TGB302003R0003 a standard ABB S800 I/O module?
I would not classify it as a conventional S800 I/O module.
The stronger available identification describes it as a PROFIBUS gateway. Some other listings call it a gateway, while still others describe entirely different functions.
For procurement, use the exact part number and original system documentation.
Does 1TGB302003R0003 support PROFIBUS DP?
Available product information specifically identifies the unit as a PROFIBUS Gateway Module, so PROFIBUS functionality is the most defensible specification currently available.
The exact PROFIBUS mode, baud-rate range, station addressing, and device-profile support should be confirmed from the applicable ABB documentation.
Can I replace it with another ABB PROFIBUS interface?
Not automatically.
A replacement decision should consider:
- Host controller.
- PROFIBUS master configuration.
- Device address.
- GSD/device configuration.
- Firmware.
- Physical connector and wiring.
- Required gateway function.
- Existing application software.
A newer ABB PROFIBUS interface may communicate successfully but still fail to reproduce the original gateway behavior.
Can I hot-swap the 1TGB302003R0003?
Do not assume hot-swap capability.
The public sources do not provide sufficiently reliable installation information for this exact part number to establish live replacement as a supported procedure.
For a field replacement, isolate the relevant control equipment, document the network configuration, replace the module, then verify PROFIBUS communication and process data before returning the system to service.
Does replacing 1TGB302003R0003 affect PLC or DCS logic?
The gateway itself is not normally the location of the complete PLC/DCS application program. The more immediate risk is communication configuration.
After replacement, verify:
- PROFIBUS station address
- Master configuration
- Device identification
- Data mapping
- Diagnostic status
- Firmware compatibility
- Communication quality
- Controller-side status
A gateway can pass its basic power-up test and still be incorrectly configured for the existing network.
How should I verify a New Surplus 1TGB302003R0003?
For this part, I would be particularly strict because public specifications are contradictory.
Incoming inspection should include:
- Exact 1TGB302003R0003 marking
- ABB identification label
- PCB and hardware revision
- Connector inspection
- Evidence of corrosion or overheating
- Firmware/revision information
- PROFIBUS interface test
- Network communication test
- Device recognition by the intended master
- Data-exchange verification
- Diagnostic-status verification
- Written functional-test results
One final procurement warning: the exact same part number is currently described online as a PROFIBUS gateway, a generic multi-protocol gateway, and even a component associated with an ABB motor-control-unit manual. I would therefore not publish the more detailed electrical specifications circulating online as confirmed facts until the physical nameplate and ABB documentation for the customer’s installed system are checked.
