Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | 07AC91H |
| Order Number | GJR5252300R3101 |
| Product Type | Analog I/O Module |
| Automation Platform | ABB Advant Controller 31 (AC31) |
| Module Function | Analog Input / Analog Output Expansion Unit |
| Communication Interface | CS31 Bus |
| Power Supply | 24 VDC |
| Analog Channels | 16 configurable channels |
| Operating Mode 1 | 8 Analog Inputs + 8 Analog Outputs |
| Operating Mode 2 | 16 Analog Channels configurable in pairs |
| Resolution | Up to 12-bit (configuration dependent) |
| Input Signal Range | ±10 V / 0–20 mA |
| Output Signal Range | ±10 V / 0–20 mA |
| Mounting | DIN rail installation |
| Configuration | Hardware switches / AC31 configuration |
| Operating Temperature | 0°C to +55°C |
| Application | Industrial PLC control, distributed I/O, process automation |
Product Introduction

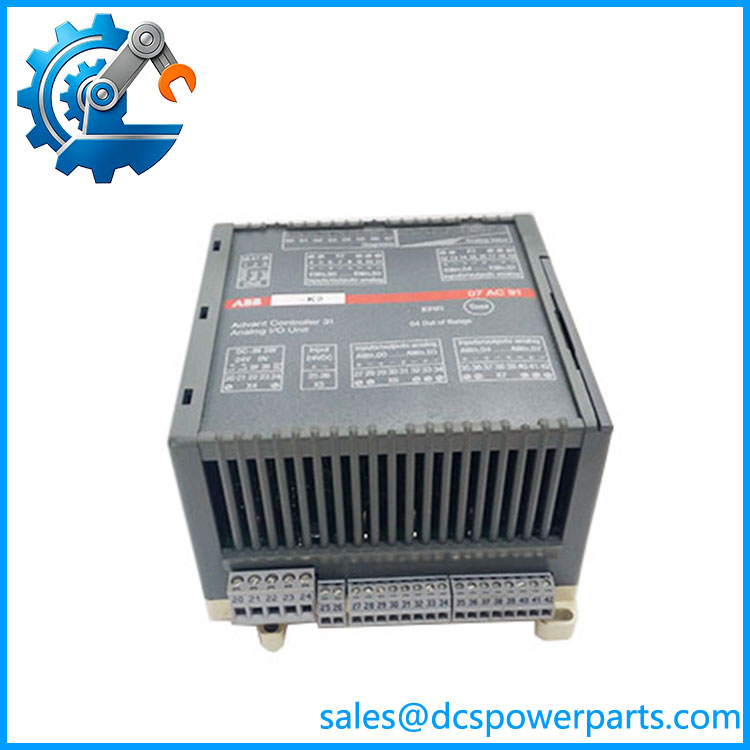

ABB 07AC91H GJR5252300R3101 Overview
The ABB 07AC91H GJR5252300R3101 is an analog I/O expansion module designed for the ABB Advant Controller 31 (AC31) automation platform. It provides additional analog signal processing capability for systems requiring measurement and control of continuous process variables. The module connects to the AC31 controller through the CS31 bus, allowing distributed field signal acquisition without requiring all I/O hardware to be installed directly beside the CPU.
The ABB 07AC91H GJR5252300R3101 supports analog input and output functions commonly used in industrial control systems. It can process signals from field instruments such as pressure transmitters, temperature devices, flow sensors, and other analog measurement equipment, while also providing analog outputs for control elements such as valves, drives, and actuators.
The ABB 07AC91H is commonly found in long-service automation installations where AC31 controllers remain in operation. Typical applications include manufacturing equipment, process skids, packaging systems, and distributed machine control solutions. During replacement, engineers should verify CS31 bus addressing, analog channel configuration, signal range settings, and the existing AC31 application program before returning the system to service.
GJR5252300R3101-07AC91H
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
An system shows incorrect analog readings, unstable control outputs, or communication faults from a remote I/O station.
The troubleshooting process should include:
- Field transmitter output verification
- Analog loop wiring inspection
- CS31 bus communication status
- Module address settings
- Channel configuration
- Controller application parameters
The ABB 07AC91H GJR5252300R3101 is only one part of the complete analog signal chain. Problems can originate from field instruments, wiring, configuration, or controller logic.
Typical Applications
Process Automation
Used for:
- Pressure monitoring
- Flow measurement
- Temperature acquisition
- Valve control signals
Machine Automation
Applied in:
- Production machinery
- Packaging equipment
- Material handling systems
Utility Systems
Used for:
- Pump control
- HVAC automation
- Water treatment equipment
OEM Control Panels
Applied in:
- Customized automation cabinets
- Distributed machine control systems
Technical Pitfalls to Avoid
1. Verify Analog Signal Configuration
Before replacement, confirm:
- Voltage or current input type
- Signal scaling
- Channel assignment
- Engineering units
A module with incorrect channel settings can produce incorrect process values.
2. Check CS31 Bus Addressing
Common causes of communication faults:
- Incorrect module address
- Missing termination resistor
- Bus wiring problems
- Excessive cable length
3. Preserve Existing Parameters
Record:
- I/O mapping
- Channel configuration
- Controller program settings
- Calibration values
The replacement module does not automatically inherit the original configuration.
4. Inspect Field Wiring
Analog problems frequently originate from:
- Shield grounding issues
- Broken signal cables
- Incorrect polarity
- Electrical interference
Related Products
- ABB 07KT94
Advant Controller 31 CPU module used with I/O expansion modules. - ABB 07DC91
Digital I/O expansion module for Advant Controller 31 systems. - ABB 07KP95
Basic communication/controller module for automation systems. - ABB 07AC91 GJR5252300R0101
Related 07AC91 analog I/O version with different labeling configuration. - ABB Advant Controller 31 ()
PLC automation platform supporting distributed I/O architectures. - ABB CS31 Bus I/O Modules
Remote expansion modules used for distributed industrial control systems.
