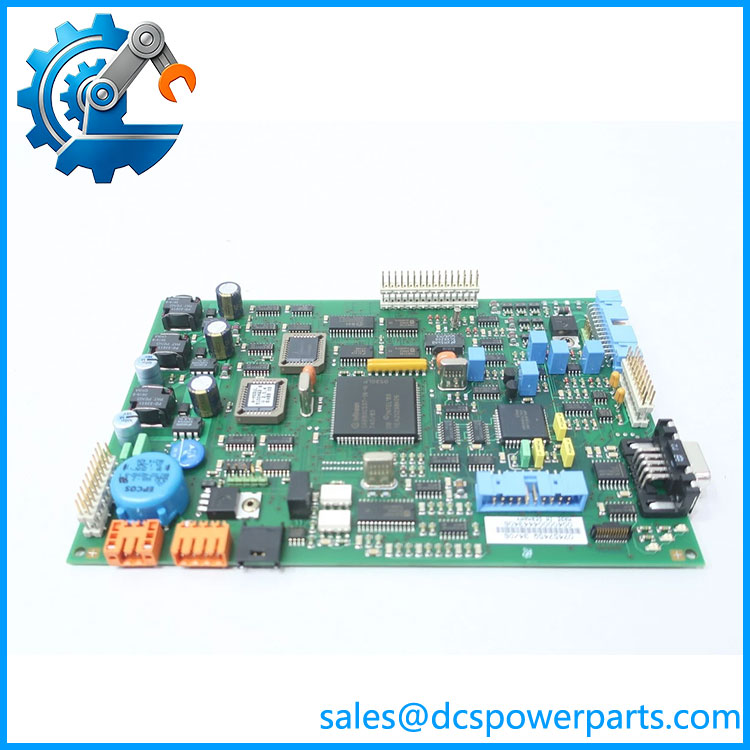

ABB 0745745Q IR Module Control Board
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 0745745Q |
| Product Number | 0745745Q |
| Product Type | IR Module Control Board / Power Supply Board |
| Hardware Form | Printed Circuit Board |
| System Role | Control / power-related circuit interface |
| Application | ABB industrial automation equipment |
| Installation | Installed within the associated ABB system or assembly |
| Dimensions | Approx. 200 × 140 × 30 mm according to one parts database |
| Weight | Approx. 2.0 kg according to one parts database |
| Electrical Ratings | Verify from OEM documentation |
| Input / Output Configuration | Verify against original assembly |
| Communication Interface | Not reliably documented |
| Operating Temperature | Verify against original system documentation |
The dimensional and weight figures come from a commercial parts database rather than ABB engineering documentation, so they should be regarded as identification aids rather than guaranteed installation specifications.
Product Introduction
The ABB 0745745Q is a legacy ABB circuit board identified in available industrial automation records as an IR module control board and, in some records, a power supply board module. It is a board-level component rather than a conventional PLC CPU, digital I/O module, or modern fieldbus interface. The exact function depends on the ABB equipment and assembly in which the board was originally installed.
For maintenance work, the ABB 0745745Q should be matched by the complete part number and physical board identification. Publicly available listings provide conflicting descriptions, and I could not verify a reliable OEM specification sheet covering its electrical ratings. That makes the cabinet documentation, board markings, connector arrangement, revision level, and original equipment part list particularly important when selecting a replacement.
0745745Q
Application Scenarios & Field Pitfalls — Engineer’s Perspective
The 0745745Q is most relevant to maintenance of legacy ABB control equipment where the original PCB remains part of the installed system. It may be encountered as an internal control or power-related board within an ABB assembly rather than as a field-mounted module. This distinction matters because a PCB can have a highly specific electrical and mechanical relationship with its parent assembly.
Engineering considerations
- Do not classify it as a generic power supply. Several listings use different descriptions for the same number. Confirm the actual board function from the cabinet BOM and original equipment documentation.
- Match the exact suffix. “0745745Q” should be checked against the board label and assembly documentation. Similar-looking ABB PCBs are not automatically interchangeable.
- Inspect connectors and mounting geometry. Board-level replacements must match connector position, pin assignment, mounting points, and mating assemblies.
- Check revision markings. A replacement PCB with the same base number may have hardware or component revisions that affect compatibility.
- Do not rely on unverified electrical specifications. Available public records do not establish dependable voltage, current, signal, or communication specifications for this exact board.
- Test before return to service. After replacement, verify power rails, connected I/O or control signals, diagnostics, and the operation of the parent ABB system.
For procurement, I would request a clear photo of the board nameplate and connector side if there is any uncertainty between 0745745Q and another ABB PCB number.
