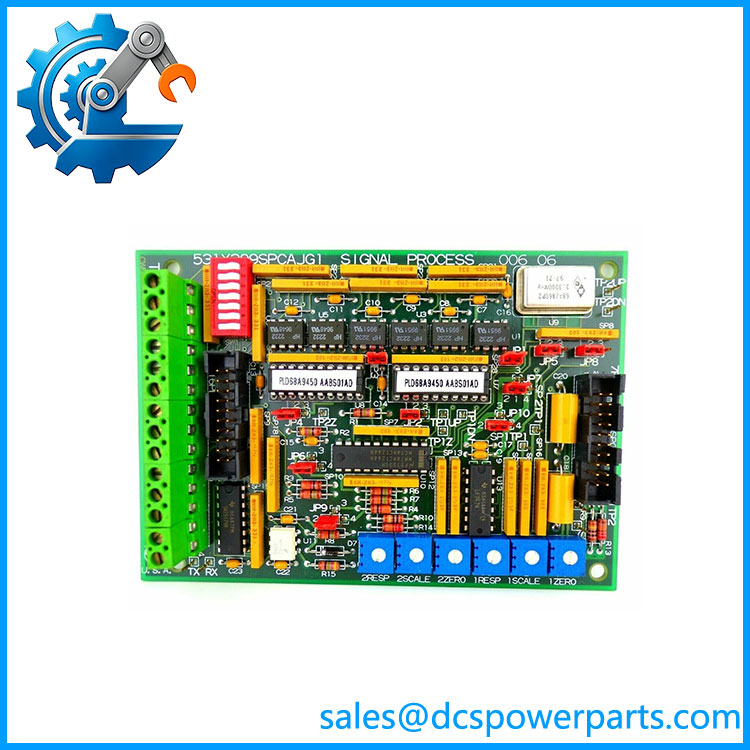

GE 531X309SPCAJG1 Digital Signal Process Board Product Description
Product Overview
GE 531X309SPCAJG1 is a Digital Signal Process Board designed for GE 531X series industrial drive control systems. As a specialized signal processing and interface board, GE 531X309SPCAJG1 provides high-speed signal conditioning, feedback processing, and communication interface functions for GE DC2000, AC2000, and related adjustable speed drive platforms. The board is mainly used to process drive feedback signals, interface with motor control processors, and support accurate speed and current regulation in industrial motor drive applications.
The GE 531X309SPCAJG1 belongs to the GE 531X replacement board family and is typically installed as a signal processor module associated with GE SDCC Drive Control Cards. Within the drive control architecture, GE 531X309SPCAJG1 functions as an intermediate processing unit between external sensors, encoder/tachometer feedback devices, and the main drive controller. It processes RS-422 serial signals, handles drive control I/O operations, and converts current reference and voltage-level signals into control reference signals required by the motor control processor.
Designed for demanding industrial automation environments, GE 531X309SPCAJG1 combines configurable hardware functions, reliable signal conversion capability, and flexible integration features. Through onboard switches, jumpers, and potentiometers, engineers can adjust filtering parameters, signal gains, and interface characteristics according to specific drive requirements. By improving signal accuracy and communication reliability, GE 531X309SPCAJG1 helps maintain stable motor control performance, reduce system downtime, and extend the operational life of legacy GE drive installations.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 531X309SPCAJG1 |
| Manufacturer | GE (General Electric) |
| Product Type | Digital Signal Process Board |
| Product Series | GE 531X Series |
| Application Platform | GE DC2000 / AC2000 Digital Adjustable Speed Drives |
| Compatible Controller | GE SDCC Drive Control Card |
| Main Function | Signal processing, feedback conversion, and drive interface |
| Signal Input | Encoder, tachometer, analog reference signals |
| Signal Output | Processed control reference signals |
| Communication Interface | RS-422 serial communication |
| Processing Function | LAN control processing and drive I/O processing |
| Configuration Components | Jumpers, switches, potentiometers |
| Board Revision | Revision J |
| Mounting Method | Drive cabinet PCB mounting |
| Operating Environment | Industrial control cabinet environment |
| Typical Application | Motor speed control and drive regulation |
531X309SPCAJG1
Application Areas
Industrial Motor Drive Systems:
GE 531X309SPCAJG1 is widely used in industrial adjustable speed drive systems requiring precise motor control. It supports applications involving speed feedback, current regulation, and closed-loop motor control.
Manufacturing Production Lines:
Automated manufacturing equipment relies on stable motor operation for conveyors, rollers, pumps, and processing machinery. GE 531X309SPCAJG1 provides accurate feedback processing to maintain consistent production performance.
Power Generation Auxiliary Systems:
Power plants use adjustable speed drives for pumps, fans, and auxiliary rotating equipment. GE 531X309SPCAJG1 helps maintain reliable motor control and feedback communication within these systems.
Steel and Metal Processing:
Steel mills require precise motor control for rolling equipment and heavy machinery. GE 531X309SPCAJG1 supports high-performance drive applications where speed accuracy and dynamic response are critical.
Paper and Printing Industries:
Continuous production equipment requires stable speed regulation and accurate feedback processing. GE 531X309SPCAJG1 helps maintain consistent operation of drive-controlled machinery.
Industrial Retrofit Projects:
For facilities operating GE 531X series and DC2000 drive platforms, GE 531X309SPCAJG1 is commonly used as a replacement signal processing board during repair, refurbishment, and lifecycle extension projects.
