GE 531X307LTBAKG1 LAN I/O Terminal Board Product Description
Product Overview

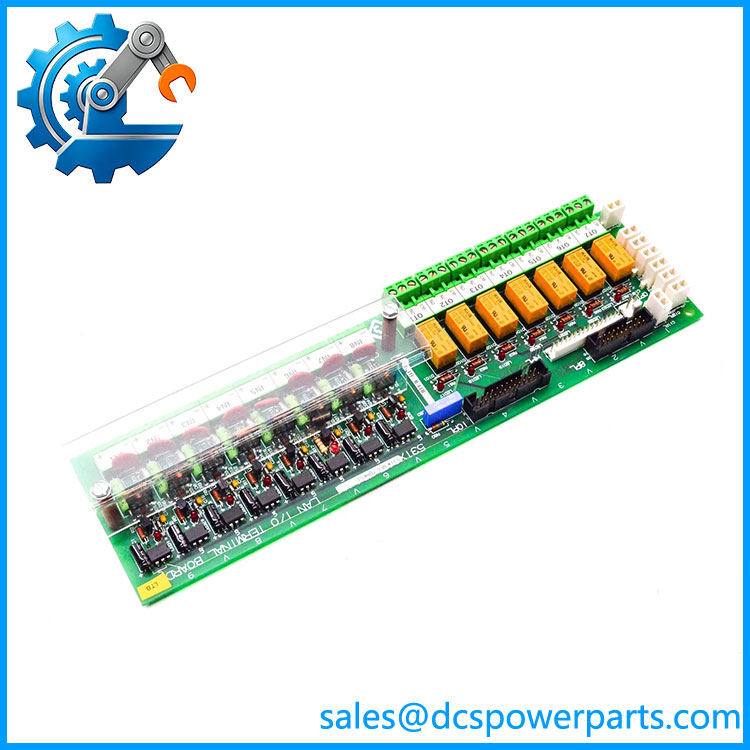

GE 531X307LTBAKG1 is a LAN I/O Terminal Board (LTB) designed for GE 531X series industrial drive and excitation control systems. As a field interface and signal distribution board, GE 531X307LTBAKG1 provides communication and electrical interfacing between GE drive/exciter controllers and external devices such as contactors, interlocks, pushbuttons, indicator lamps, and auxiliary control equipment.
The GE 531X307LTBAKG1 is part of the GE 531X replacement board family and is commonly used in DC2000 and EX2000 drive/excitation platforms. The board functions as an interface module that receives field-level AC/DC control signals, converts them into standardized 24 VDC logic signals, and distributes processed signals through the LAN terminal interface, drive control board, and NTB terminal connections.
Designed for industrial automation environments, GE 531X307LTBAKG1 combines configurable digital inputs, relay outputs, LED indication, and LAN communication functions. It provides a flexible solution for integrating external control devices with GE drive and excitation systems while improving system reliability, maintenance efficiency, and signal management.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | 531X307LTBAKG1 |
| Manufacturer | General Electric (GE) |
| Product Series | GE 531X Series |
| Product Type | LAN I/O Terminal Board |
| Functional Acronym | LTB |
| Application | GE DC2000 / EX2000 Drives and Exciters |
| Main Function | Field I/O interface and signal conversion |
| Input Channels | 8 configurable control inputs |
| Input Voltage Range | 2–240 VAC/DC |
| Logic Conversion Output | 24 VDC logic signals |
| Relay Outputs | 7 Form C relay outputs |
| Relay Function | Low-voltage / low-current switching |
| Communication Interface | LAN terminal interface |
| External Interfaces | Drive control board and NTB terminal |
| Indicators | LED status indication |
| Mounting Method | Internal drive cabinet installation |
| Board Type | Printed Circuit Board Assembly |
| Operating Environment | Industrial control cabinet environment |
Main Features and Advantages
LAN Communication Interface
The primary function of GE 531X307LTBAKG1 is to provide a LAN-based interface between GE drive controllers and external field equipment. The board allows control signals to be exchanged efficiently between the drive system and connected devices, improving overall system integration.
Wide Voltage Input Compatibility
GE 531X307LTBAKG1 supports a wide range of field input voltages from 2 to 240 VAC/DC, allowing connection to various industrial devices without requiring additional signal conditioning hardware. Incoming field signals are converted into 24 VDC logic signals suitable for GE control electronics.
Eight Configurable Control Inputs
The board provides eight configurable input channels that can be used for monitoring external switches, interlocks, protection signals, and control commands. This flexibility allows engineers to adapt the board to different drive and exciter applications.
531X307LTBAKG1
Relay Output Capability
GE 531X307LTBAKG1 includes seven Form C relay outputs for controlling external devices such as:
- Contactors
- Alarm circuits
- Status indicators
- Auxiliary control equipment
These relay interfaces provide electrical isolation between the controller and external loads.
LED Diagnostic Indication
The integrated LED indicators provide quick visual feedback of input/output status. This feature assists maintenance engineers in troubleshooting field wiring problems, signal failures, and control system issues.
Reliable Signal Distribution
The board distributes processed signals between the LAN terminal, drive control board, and NTB terminal. This architecture simplifies system wiring and improves communication reliability within GE drive cabinets.
Industrial-Grade Construction
Built for GE industrial drive and excitation applications, 531X307LTBAKG1 is designed to operate in environments with electrical noise, temperature variation, and continuous industrial operation.
Easy Replacement and Maintenance
The modular design allows technicians to replace the terminal board without replacing the entire drive control system, reducing maintenance time and minimizing production interruptions.
Legacy GE System Support
Many GE 531X-based drive and excitation systems remain operational worldwide. GE 531X307LTBAKG1 provides an effective replacement solution for extending the service life of existing automation equipment.
Application Areas
GE DC2000 Drive Systems
GE 531X307LTBAKG1 is commonly installed in GE DC2000 adjustable speed drive systems to provide external control signal interfaces and field device connections.
GE EX2000 Excitation Systems
In generator excitation applications, the board supports communication between excitation controllers and external monitoring or control devices.
Power Generation Facilities
Power plants use GE drive and excitation systems for turbine auxiliaries, pumps, fans, and rotating equipment. 531X307LTBAKG1 provides reliable field signal integration for these applications.
Industrial Motor Control
Large industrial motors require accurate control signals, protection interlocks, and status feedback. The board supports these functions in manufacturing and process industries.
Steel and Metal Processing
Rolling mills and heavy machinery require dependable drive control interfaces. GE 531X307LTBAKG1 helps maintain stable operation of GE drive systems used in these environments.
Oil and Gas Applications
Compressors, pumps, and rotating equipment often rely on GE excitation and drive systems. The terminal board provides reliable field connectivity for critical process equipment.
Retrofit and Maintenance Projects
For facilities operating legacy GE 531X systems, 531X307LTBAKG1 is widely used as a replacement component during repair, refurbishment, and system lifecycle extension projects.
