ABB 216MB66 HESG324510M1 Product Description
Product Overview

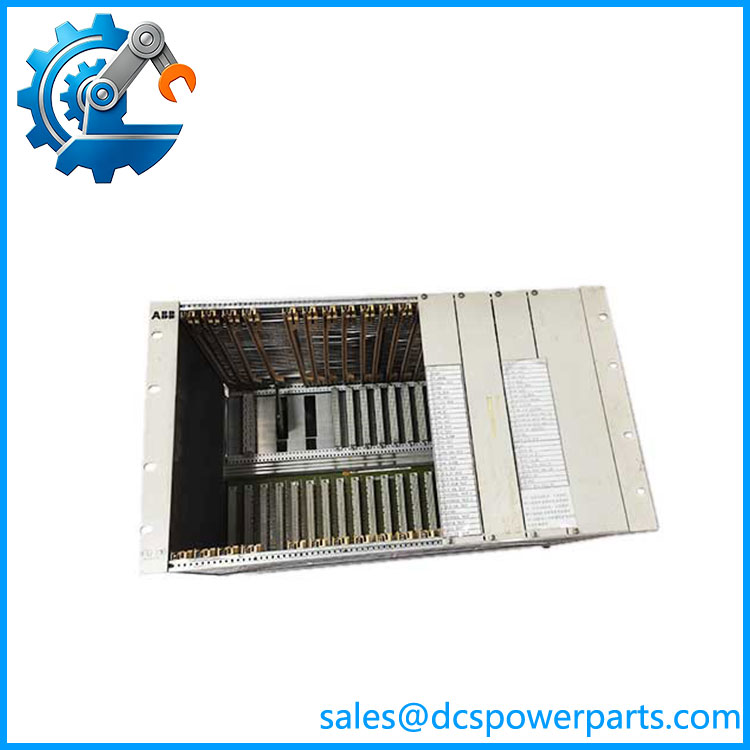

ABB 216MB66 HESG324510M1 is a modular equipment rack designed for ABB’s REG 216 digital generator protection and REC 216 digital control systems. Unlike an individual protection I/O board, the 216MB66 provides the mechanical and electrical infrastructure required to install and interconnect the electronic units that make up the protection system. ABB documentation identifies the rack as part of the REG/REC 216 architecture and associates it with the B448C parallel bus.
The ABB 216MB66 HESG324510M1 distributes the internal 24 V auxiliary supply and provides the high-speed parallel-bus connections between installed electronic modules. The rack can accommodate one or two redundant auxiliary DC power-supply units, such as the 216NG61, 216NG62 or 216NG63. This architecture allows generator protection, measurement, I/O and communication modules to operate as an integrated protection system.
For maintenance of legacy ABB generator protection installations, 216MB66 HESG324510M1 is a critical infrastructure component. A properly matched rack can support existing 216-series electronic modules while preserving the original system architecture, making it useful for long-term service, repair and lifecycle support of REG 216 equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 216MB66 HESG324510M1 |
| Manufacturer | ABB |
| Product Family | REG 216 / REC 216 |
| Product Type | Modular Equipment Rack |
| Rack Function | Electronic Module Housing & Internal Interconnection |
| Internal Bus | B448C Parallel Bus |
| Bus Architecture | 16-bit address/data time multiplexing |
| Data Transfer | Asynchronous transmission with handshake |
| Bus Integrity | Data-exchange integrity checking |
| Auxiliary Supply | 24 VDC internal distribution |
| Power Supply Configuration | One or two redundant 216NG61/216NG62/216NG63 units |
| Installation | ABB 216-series Protection Rack |
| Typical Application | Generator Protection and Digital Control |
| Hardware Reference | HESG324510M1 |
| Core Model | 216MB66 |
The B448C bus supports up to 32 master units with equal bus access status, while the rack distributes a common internal 24 V auxiliary supply to the installed electronic units. Redundant 24 V supplies can be connected to the same or separate station batteries.
Note: Online listings provide different physical dimensions for HESG324510M1/216MB66. Therefore, cabinet dimensions should be verified against the original ABB documentation and installed rack before replacement.
Main Features and Advantages
Modular Equipment Rack
The primary function of ABB 216MB66 is to provide a common mounting and interconnection platform for compatible REG/REC 216 electronic modules. This modular construction makes it possible to combine protection, control, I/O and communication functions within a single rack.
B448C Parallel Bus
The rack incorporates the B448C parallel bus, which uses 16-bit time-multiplexed address and data transmission. Asynchronous communication with handshake and integrity checking helps establish reliable internal communication between the electronic units installed in the rack.
216MB66 HESG324510M1
Redundant 24 VDC Architecture
The HESG324510M1 rack can accommodate one or two redundant auxiliary DC power-supply units. ABB documentation identifies the compatible 216NG61, 216NG62 and 216NG63 DC/DC converters, which reduce station-battery voltage to 24 V and provide electrical isolation between input and output.
High System Availability
Redundant power-supply capability is particularly valuable in generator protection systems. A dual-supply configuration can improve availability by providing an additional DC supply path for the rack and its electronic modules.
Centralized Internal Power Distribution
The rack distributes the internal 24 V auxiliary supply to the installed electronic units through the B448C bus. This reduces the need for separate power wiring to every module and provides a structured electrical architecture inside the protection cabinet.
Easy Module-Level Maintenance
Because the 216MB66 is designed to house individual protection and control modules, technicians can troubleshoot and replace specific electronic units rather than replacing the entire protection system. This is particularly useful for long-life generator installations where the original REG 216 equipment remains operational.
Legacy System Compatibility
The ABB 216MB66 HESG324510M1 remains relevant for plants maintaining older REG 216/REC 216 systems. Correct rack identification is important because similar ABB 216-series racks and modules may have different internal bus configurations or mounting arrangements.
Application Fields
ABB 216MB66 HESG324510M1 is primarily used in generator protection and digital control systems installed in power-generation facilities. In thermal power plants, the rack can house electronic modules responsible for generator measurements, protection logic, binary I/O, tripping and communication.
In hydroelectric generating stations, the 216MB66 ABB can serve as the central equipment rack for a REG 216 generator protection installation. The rack’s modular structure allows protection functions and associated I/O hardware to be organized within a common cabinet architecture.
Industrial cogeneration plants, captive power stations and utility generating facilities can also use the rack where legacy ABB REG/REC 216 equipment remains in service. The B448C bus provides the internal communication infrastructure required for the installed protection electronics, while the rack distributes auxiliary power to the modules.
For maintenance departments, HESG324510M1 is particularly important when repairing an existing protection cabinet. The rack should be checked for the correct bus architecture, power-supply arrangement, module compatibility and physical mounting configuration before replacement or expansion.
Related Products
- 216NG61 — ABB auxiliary DC/DC power-supply unit used to provide isolated 24 VDC power to the 216MB66 rack.
- 216NG62 — Related auxiliary DC/DC converter that can be installed in compatible 216-series racks.
- 216NG63 — Related 24 VDC auxiliary power-supply unit supporting redundant rack-power configurations.
- 216DB61 HESG324063R100/H — Binary input/output and monitored tripping unit used with the REG 216 architecture.
- 216AB61 HESG324013R101 — Related ABB digital output/protection module for the 216-series rack.
- 216EA61B HESG448230R1/G — Related electronic protection module used within the modular 216-series architecture.
- 216VC62A HESG324442R112 — Related ABB electronic module used in legacy REG/REC 216 protection and control systems.
- 216NG63A HESG441635R1 — Related electronic assembly associated with ABB generator-protection equipment.
- B448C Parallel Bus — Internal 16-bit parallel communication and power-distribution bus used by the 216MB66 rack.
- REG 216 / REC 216 — ABB digital generator protection and control platforms for which the 216MB66 rack was developed.
