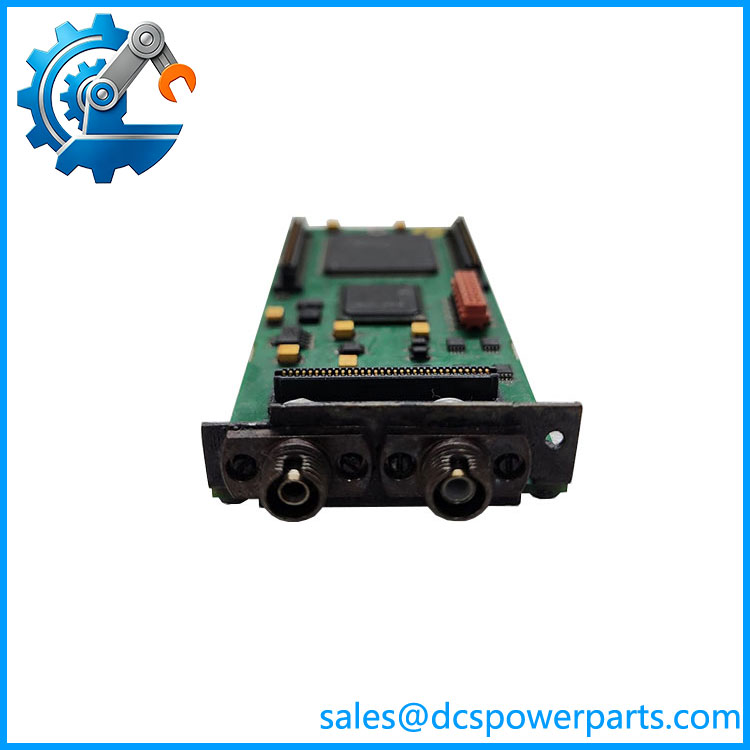

ABB 1MRK002311-AAR11 is an Optical Long Range Line Data Communication Module (LR LDCM) designed for ABB Relion® protection and control systems. It is a specialized fiber-optic communication interface used to provide high-speed, long-distance and highly reliable data exchange between intelligent electronic devices (IEDs), particularly in line differential protection applications. The 1MRK002311-AAR11 belongs to ABB’s LDCM communication module family and is engineered for power transmission networks where secure protection communication and minimal transmission delay are essential.
ABB 1MRK002311-AAR11 uses single-mode optical fiber technology with 1550 nm wavelength transmission, providing excellent signal stability over extended distances while maintaining strong resistance against electromagnetic interference. In ABB protection platforms such as RED670, REL670 and related Relion® 670 series devices, the 1MRK002311-AAR11 enables reliable exchange of differential protection information between remote substations, supporting fast fault detection and selective tripping functions.
ABB 1MRK002311-AAR11 is an important communication component for modern digital substations, high-voltage transmission systems, and industrial power networks. By using optical communication instead of conventional electrical connections, 1MRK002311-AAR11 improves system immunity against electrical disturbances, enhances protection availability, and supports the stable operation of critical power infrastructure. It is widely applied in utility substations, renewable energy grid connections, and industrial electrical automation systems requiring dependable long-range protection communication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 1MRK002311-AAR11 |
| Manufacturer | ABB |
| Product Type | Optical Long Range Line Data Communication Module (LR LDCM) |
| Product Family | ABB Relion® Protection and Control Systems |
| Main Application | Line differential protection communication |
| Communication Medium | Single-mode optical fiber |
| Optical Wavelength | 1550 nm |
| Transmission Distance | Long-range optical communication (up to approximately 20 km depending on fiber conditions) |
| Optical Interface | Fiber optic TX/RX interface |
| Communication Function | Protection data exchange between relay terminals |
| Compatible Devices | ABB RED670, REL670, RET670 and related IED platforms |
| Installation Type | Internal relay module mounting |
| Power Supply | Supplied by host ABB protection device |
| Power Consumption | Low-power module design |
| Operating Temperature | Industrial protection environment |
| EMC Performance | High immunity against electromagnetic interference |
| Application Environment | High-voltage substations and industrial power systems |
1MRK002311-AAR11
Main Features and Advantages
ABB 1MRK002311-AAR11 provides a professional-grade communication solution for power system protection applications where communication reliability directly affects grid safety and operational continuity. Designed specifically for ABB protection platforms, 1MRK002311-AAR11 delivers deterministic optical communication performance required for advanced protection functions.
Long-distance optical transmission is one of the most important advantages of ABB 1MRK002311-AAR11. The module uses single-mode fiber technology and 1550 nm optical transmission, allowing stable communication over extended distances with low attenuation. This makes 1MRK002311-AAR11 suitable for applications where protection relays are installed in geographically separated substations.
The optical communication architecture of ABB 1MRK002311-AAR11 provides excellent electrical isolation between connected protection devices. High-voltage substations are exposed to switching surges, electromagnetic fields, and grounding potential differences. Fiber-optic transmission eliminates many interference problems associated with copper communication systems, improving overall protection system reliability.
ABB 1MRK002311-AAR11 plays a critical role in line differential protection schemes. In these systems, protection relays located at different ends of a transmission line must exchange synchronized measurement data continuously. Reliable communication through 1MRK002311-AAR11 allows protection devices to quickly identify internal faults and issue accurate trip commands.
The modular design of ABB 1MRK002311-AAR11 simplifies integration into ABB Relion® protection equipment. Engineers can install the communication module within compatible relay configurations, reducing engineering complexity and improving maintenance efficiency.
ABB 1MRK002311-AAR11 is also designed for demanding industrial environments. Its robust optical interface ensures stable operation under conditions involving temperature variation, electrical noise, and continuous equipment operation.
For power system modernization projects, 1MRK002311-AAR11 provides a practical upgrade solution by improving communication performance while maintaining compatibility with existing ABB protection architectures. It helps extend the service life of installed protection systems and enhances overall network performance.
With high-speed optical communication, long-distance capability, excellent interference immunity, and ABB Relion® compatibility, 1MRK002311-AAR11 is a reliable choice for critical power protection applications.
Applications
ABB 1MRK002311-AAR11 is mainly used in power protection systems requiring secure and high-speed communication between remote protection devices. Its primary application is in line differential protection systems installed in transmission and distribution networks.
In high-voltage substations, ABB 1MRK002311-AAR11 provides the communication link between protection relays located at opposite ends of transmission lines. The module enables accurate exchange of differential protection information, helping reduce fault clearing time and improve grid stability.
Power utilities use 1MRK002311-AAR11 in transmission networks where reliable protection communication is essential. The module supports applications involving overhead transmission lines, underground cables, and critical power corridors.
Renewable energy facilities, including large wind farms and solar power plants, can use ABB 1MRK002311-AAR11 in grid connection protection systems. Reliable optical communication helps ensure safe integration of distributed generation into the electrical grid.
Industrial facilities with large electrical distribution networks also benefit from 1MRK002311-AAR11. Petrochemical plants, mining operations, steel mills, and manufacturing facilities often require advanced protection systems capable of operating reliably under harsh electrical conditions.
ABB 1MRK002311-AAR11 is also suitable for retrofit projects where existing ABB protection systems require replacement or expansion of long-range communication functions.
Typical application areas include:
- High-voltage transmission substations
- Line differential protection systems
- ABB RED670 protection applications
- ABB REL670 protection systems
- Renewable energy grid protection
- Industrial electrical networks
- Smart grid infrastructure
- Substation automation systems
- Critical power distribution networks
