Allen-Bradley 1756-LSC8XIB8I Product Description
Product Overview
Allen-Bradley 1756-LSC8XIB8I is a high-speed counter input module developed by Rockwell Automation for the ControlLogix programmable automation controller platform. As part of the Allen-Bradley ControlLogix 1756 I/O family, Allen-Bradley 1756-LSC8XIB8I is designed to provide high-speed pulse counting, position feedback acquisition, and precise event monitoring functions for demanding industrial automation applications. The module integrates eight individually isolated counter inputs, supporting 10…30 VDC signal levels and high-frequency counting up to 40 kHz, making it suitable for applications requiring fast and accurate signal processing.
The Allen-Bradley 1756-LSC8XIB8I combines standard digital input capability with advanced counter functionality, allowing each channel to operate as an independent counter input or general-purpose discrete input. With its individually isolated channels, the module provides improved signal reliability and protection against electrical interference commonly found in industrial environments. The module communicates directly through the ControlLogix backplane, enabling seamless integration with Logix controllers, distributed I/O architectures, and high-performance automation systems.
Designed for applications requiring accurate measurement and rapid response, Allen-Bradley 1756-LSC8XIB8I is widely used in packaging machines, motion control systems, production lines, material handling equipment, and process automation installations. Its high-speed counting capability, configurable input functions, and robust industrial design make it an ideal solution for monitoring encoders, flow meters, proximity sensors, and other pulse-based field devices.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 1756-LSC8XIB8I |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | ControlLogix 1756 I/O Series |
| Product Type | High-Speed Counter Input Module |
| Input Type | 8 individually isolated counter inputs |
| Input Voltage | 10…30 VDC |
| Nominal Input Voltage | 24 VDC |
| Counting Frequency | Maximum 40 kHz |
| Counter Quantity | 8 independent counters |
| Counter Range | 0…2,147,483,648 (31-bit counter) |
| Input Configuration | Standard input / counter-control selectable |
| Input Isolation | 250 VAC continuous isolation |
| Backplane Current | 275 mA @ 5.1 VDC |
| 24 VDC Current Draw | 3 mA |
| Power Dissipation | 3.8 W @ 60°C |
| Cyclic Update Time | 0.2 ms |
| Mounting Type | ControlLogix chassis installation |
| Terminal Connection | Screw-type removable terminal block |
| Operating Temperature | 0…60°C |
| Humidity Range | 5…95% RH non-condensing |
| Slot Width | 1 ControlLogix slot |
Main Features and Advantages
High-speed counting performance:
Allen-Bradley 1756-LSC8XIB8I is specifically designed for applications requiring rapid pulse acquisition and accurate counting operations. With a maximum counting frequency of 40 kHz, the module can process high-speed signals from encoders, sensors, and measurement devices, ensuring reliable data acquisition even in fast-moving production environments.
Flexible input configuration:
A major advantage of Allen-Bradley 1756-LSC8XIB8I is its ability to support both standard digital input operation and high-speed counter functionality. Each of the eight input channels can be independently configured according to application requirements, allowing engineers to optimize system design without adding additional hardware modules.

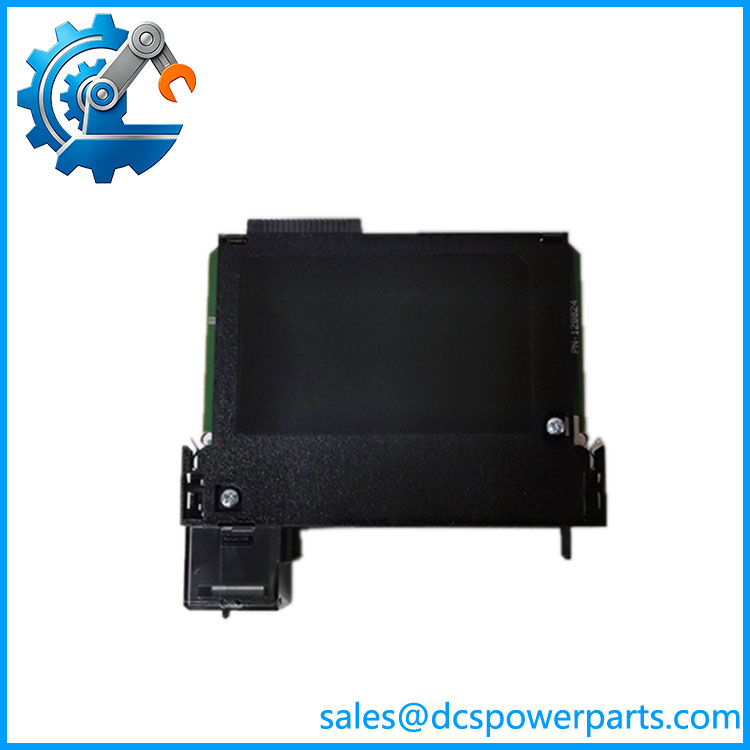

1756-LSC8XIB8I
Individual channel isolation design:
The eight isolated inputs of Allen-Bradley 1756-LSC8XIB8I improve system reliability by reducing the influence of electrical noise, ground potential differences, and signal interference. This makes the module especially suitable for industrial environments containing motors, drives, and other sources of electromagnetic disturbance.
Fast response and precise measurement:
With a fast cyclic update time and configurable input filtering, Allen-Bradley 1756-LSC8XIB8I provides accurate detection of signal transitions. This capability is valuable in applications requiring precise timing, speed measurement, length calculation, and position monitoring.
Seamless ControlLogix integration:
The module is designed for direct installation in ControlLogix chassis systems and works efficiently with Logix controllers. Allen-Bradley 1756-LSC8XIB8I simplifies system architecture by providing native integration with RSLogix 5000 / Studio 5000 programming environments and ControlLogix communication structures.
Reliable industrial operation:
Built according to Rockwell Automation industrial standards, Allen-Bradley 1756-LSC8XIB8I provides dependable performance in continuous production environments. Its rugged design helps reduce maintenance requirements and improves overall automation system availability.
Application Areas
Allen-Bradley 1756-LSC8XIB8I is widely used in industrial automation systems where high-speed signal acquisition and accurate counting functions are required. It is commonly integrated into ControlLogix-based machine control systems for production monitoring, motion coordination, and process measurement applications.
In packaging and converting industries, Allen-Bradley 1756-LSC8XIB8I is used for encoder feedback, product counting, synchronization control, and position detection. The module helps ensure accurate machine timing and improves production efficiency in high-speed packaging equipment.
In manufacturing and assembly applications, Allen-Bradley 1756-LSC8XIB8I provides reliable monitoring of proximity sensors, rotary encoders, indexing mechanisms, and automated inspection systems. Its high-speed response enables precise control of moving components and improves machine repeatability.
In material handling systems, conveyors, and logistics automation, Allen-Bradley 1756-LSC8XIB8I supports speed measurement and product tracking functions. It can capture pulse signals from sensors and measurement devices, allowing PLC systems to make accurate control decisions.
The module is also suitable for process industries, including energy, chemical, and manufacturing facilities where pulse-based instruments such as flow meters and rotational monitoring devices are used. For existing ControlLogix installations, Allen-Bradley 1756-LSC8XIB8I provides a reliable solution for expanding high-speed input capabilities without changing the existing control architecture.
