Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | BUM60-VC-OE-0001 |
| Associated Model | BUM60-06/12-54-B-001 |
| Manufacturer | Woodward / Baumüller |
| Product Type | Servo Drive Controller |
| Series | BUM60 |
| Application Platform | EM-80 / EM-300 Electric Actuator System |
| Input Voltage | 3-phase 400–480 VAC |
| Output Current | 6 A continuous / 12 A peak |
| Control Method | Closed-loop servo control |
| Feedback Interface | Encoder feedback support |
| Mounting | Panel / cabinet mounting |
| Communication | Application dependent fieldbus interface options |
| Protection | Overcurrent, overvoltage, thermal monitoring |
| Typical Applications | Turbines, engines, generator control systems |
Application Scenarios & Pain Points
A servo drive fault in a turbine package can stop the entire startup sequence. The difficult part is that the alarm often appears at the actuator level while the root cause may be power quality, feedback wiring, or drive electronics.
Typical applications:
- Gas Turbine Fuel Valve Control: Provides closed-loop actuator control for fuel regulation systems where accurate valve positioning affects acceleration and load response.
- Industrial Generator Packages: Used in engine-driven generator systems requiring precise actuator movement during frequency and load changes.
- Compressor Stations: Supports electric actuator operation in gas compression equipment where repeated starts and load transitions stress servo components.
- Marine Engine Systems: Applied in propulsion and auxiliary engine control cabinets where vibration and electrical noise require careful installation practices.
Field note: A power generation site reported intermittent actuator position alarms during load changes. The governor controller passed diagnostics, but the BUM60 drive showed inconsistent feedback behavior. After replacing the servo drive and checking encoder wiring, the actuator response returned to normal.

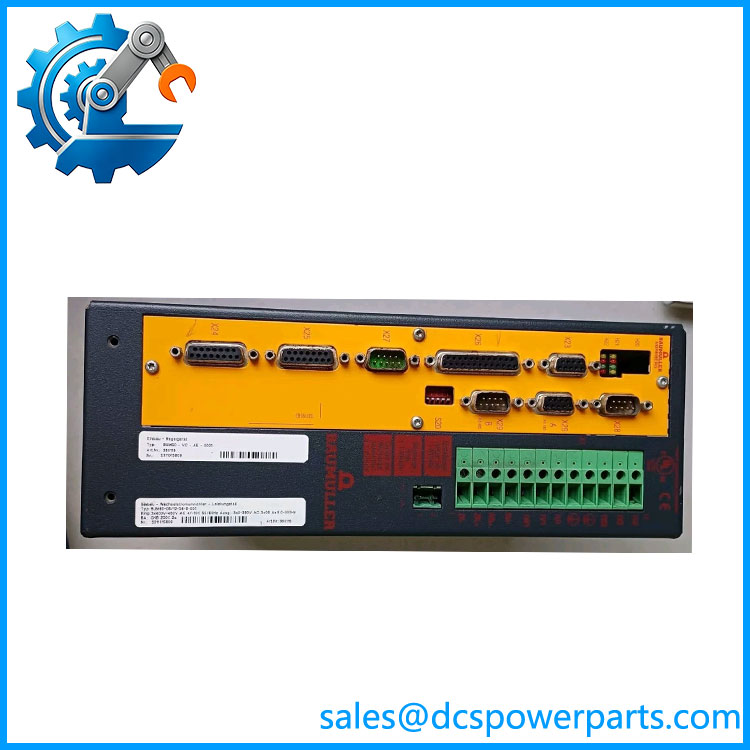

BUM60-VC-OE-0001
Related Products
- Woodward BUM60-12/24-54-B-001 — Related BUM60 actuator system component used for Woodward EM actuator applications. It is part of the same ecosystem but has a different hardware role.
- Woodward EM-80 Actuator — Brushless electric actuator designed for fuel valve and prime mover control applications. The drive provides the electronic control interface.
- Woodward EM-300 Actuator — Larger electric actuator platform for higher torque applications requiring compatible control hardware.
- Woodward 723PLUS Controller — Engine governor platform often paired with electric actuator systems. It provides speed/load control rather than direct motor power conversion.
- Woodward 505XT Controller — Digital turbine controller used with actuator systems for turbine sequencing and control.
- Woodward MicroNet Plus — Modular turbine control platform for complex prime mover applications.
- Baumüller -08/16-54-B-001 — Related servo drive variant with different current ratings. Replacement requires motor and load verification.
- Baumüller -03/06-54-B-001 — Lower current drive version for smaller actuator or motion applications.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Mixing Similar Models Without Checking Current Ratings
units can share the same mechanical format while having different electrical ratings.
How to avoid: Confirm continuous current, peak current, motor requirements, and original parameter files before replacement.
⚠️ Forgetting Encoder and Feedback Verification
A servo drive may power up normally but fail positioning if feedback wiring or encoder settings do not match.
How to avoid: Record encoder type, cable routing, connector pin assignments, and feedback parameters before removing the original unit.
⚠️ Ignoring Mechanical Actuator Load Conditions
A drive replacement may not correct faults caused by a sticking valve or excessive mechanical resistance.
How to avoid: Check actuator movement manually, inspect linkage condition, and verify current demand during operation.
Frequently Asked Questions (FAQ)
What is the Woodward -VC-OE-0001 used for?
The Woodward -VC-OE-0001 is a servo drive module used in the platform to control electric actuators in turbine and engine control systems. It regulates motor operation using closed-loop position and speed control.
Is the -06/12-54-B-001 a servo drive or a power buffer?
The designation -06/12-54-B-001 is associated with the servo drive family. The 06/12 marking refers to the current class, with approximately 6 A continuous and 12 A peak capability.
Can I replace a drive without changing parameters?
Usually not. The hardware replacement may require verification of:
- Motor parameters
- Encoder settings
- Control configuration
- Communication settings
- Actuator calibration values
What systems use Woodward drives?
Typical applications include:
- Gas turbines
- Steam turbines
- Generator packages
- Compressor systems
- Industrial engine controls
What are common failure symptoms?
Common field symptoms include:
- Actuator position errors
- Overcurrent alarms
- Servo following errors
- Communication faults
- Unexpected actuator movement
How should a replacement be tested before installation?
Recommended checks:
- Verify part number and revision
- Inspect connectors and terminals
- Test power stage operation
- Confirm encoder compatibility
- Compare configuration parameters
Is a refurbished Woodward -VC-OE-0001 suitable for service?
A tested refurbished unit can be suitable when the power stage, control electronics, feedback interface, and compatibility with the installed actuator system are verified before returning the equipment to operation.
