TEAM BCC-1 | PLC Bus Coupling Controller Module

Description

Key Technical Specifications

Product Introduction

TEAM BCC-1 Product Introduction

TEAM BCC-1 is an industrial communication interface module designed to support data exchange within TEAM automation control systems. The module functions as part of the control communication architecture, providing a connection point between system components such as controllers, I/O assemblies, and external automation devices.

The main value of TEAM BCC-1 is maintaining existing automation installations where the original communication structure must remain unchanged. For legacy systems, correct identification of firmware version, interface type, and connected modules is essential before replacement.

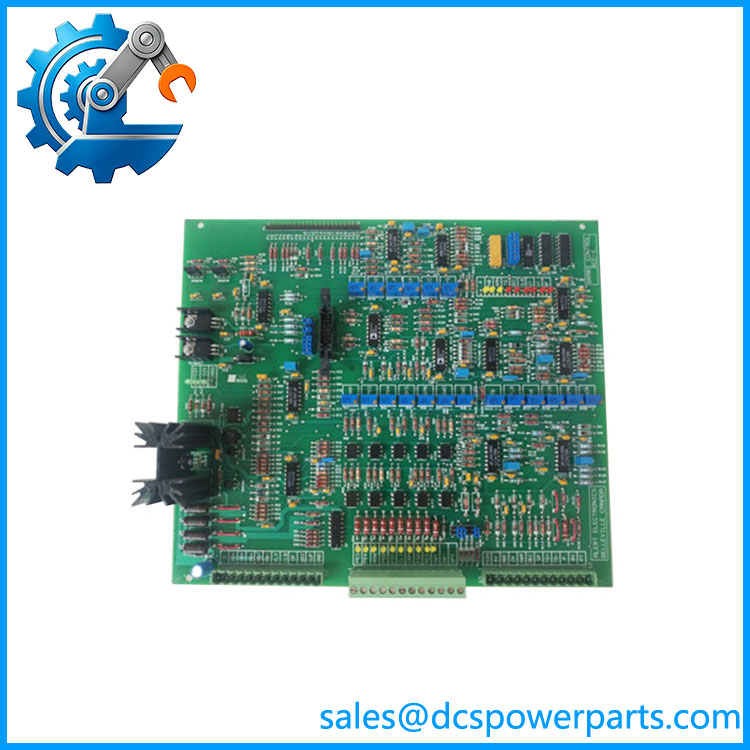

TEAM BCC-1

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A communication module failure can stop an otherwise healthy control system. The PLC, field devices, and power hardware may all be operating correctly, but the loss of the communication path prevents commands, diagnostics, and process data from reaching the right location. Older automation systems are especially sensitive because documentation and spare availability may be limited after years of operation.

Typical Applications

• Manufacturing Automation – Communication links between PLC controllers, remote I/O stations, and machine control assemblies.
• Process Equipment – Data exchange between control units, monitoring systems, and distributed field components.
• Power and Utility Systems – Legacy automation cabinets requiring replacement communication hardware.
• Industrial Machinery – Machine controller networks where original interface modules must be maintained.

Technical Pitfalls to Avoid

1. Verify Communication Compatibility
   Do not assume a similar-looking interface module is interchangeable. Confirm protocol, addressing, and controller compatibility before installation.
2. Check Existing Configuration Data
   Communication modules often depend on stored parameters such as node addresses, baud rates, or network settings. Record existing values before replacement.
3. Inspect Cabling and Connectors
   Many communication failures are caused by damaged cables, poor shielding, or connector issues rather than the module itself.

Related Products

• TEAM BL0308 PC0014 / PC0014-P
  Mixed I/O control module used for signal acquisition and output control. It works at the field interface level, while BCC-1 focuses on communication functions.
• TEAM BL0170 PC0010-P
  Industrial controller module used for logic processing and automation control tasks. It may operate together with communication interface modules in a complete system.
• TEAM BG0090 PC0006
  Control module used in industrial automation applications. Application role differs from BCC-1 communication functions.
• TEAM CM3141-02-03 CX3149-05
  Interface/protection-related module used in industrial control assemblies. Selection depends on the installed TEAM architecture.
• TEAM CM3142-01-03 CX3147-04
  Signal interface module used for control system connections and equipment integration.
• Industrial Bus Coupler Modules
  Similar class of hardware used to connect PLC systems with distributed field devices and remote I/O networks.
• Industrial Communication Gateway Modules
  Used for protocol conversion and integration between different automation networks.
• PLC Remote Communication Interfaces
  Supporting modules used for expanding controller communication capability in distributed control systems.
