Description
GE Multilin SR745-W2-P1-G1-HI-A-L-R Product Description
Product Overview
GE Multilin SR745-W2-P1-G1-HI-A-L-R is a high-speed, microprocessor-based Transformer Management Relay from the GE Multilin 745 series. It is designed for comprehensive protection, monitoring, metering and control of two-winding power transformers, autotransformers and reactors. The relay combines transformer differential, overcurrent, thermal, overexcitation and restricted ground-fault functions within a single protection platform.
The SR745-W2-P1-G1-HI-A-L-R configuration is specifically built for two-winding applications, with 1 A phase-current inputs, 1 A ground-current inputs, high-range auxiliary power, analog I/O, transformer life monitoring and restricted ground-fault protection. Its programmable logic and communication capabilities allow it to operate as an intelligent protection layer between electrical equipment and plant DCS/SCADA systems.
For power-system maintenance, GE SR745-W2-P1-G1-HI-A-L-R provides an integrated replacement solution for legacy transformer protection schemes. Its event recording, metering, programmable logic and diagnostic functions help reduce troubleshooting time while allowing existing transformer protection philosophies to remain largely intact.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SR745-W2-P1-G1-HI-A-L-R |
| Manufacturer | GE Multilin |
| Product Series | Multilin 745 Transformer Management Relay |
| Product Type | Transformer Protection & Management Relay |
| Transformer Configuration | W2 – Two Windings |
| Phase CT Rating | P1 – 1 A for all windings |
| Ground CT Rating | G1 – 1 A configuration |
| Control Power | HI – 90–300 VDC / 70–265 VAC, 48–62 Hz |
| Analog I/O | A – Analog Inputs/Outputs |
| Transformer Life Monitoring | L – Included |
| Restricted Ground Fault | R – Included |
| Logic Inputs | 16 |
| Protection Functions | Differential, overcurrent, thermal, overexcitation, REF and others |
| Communication | RS232, RS485/RS422, Ethernet depending on configuration |
| Protocols | Modbus, DNP 3.0 |
| Mounting | Draw-out case / flush panel or 19-inch rack |
| Operating Temperature | -40 to +60 °C |
| Local Display | Enhanced 40-character display |
| Series Application | Transformer, Autotransformer and Reactor Protection |
| Part Number | SR745-W2-P1-G1-HI-A-L-R |
GE’s official 745 selection information confirms W2 as two-winding protection, P1 as 1 A phase-current inputs, G1 as the corresponding 1 A ground-current configuration, HI as 90–300 VDC / 70–265 VAC auxiliary power, and A/L as analog I/O and transformer-life-monitoring options.
Main Features and Advantages
Comprehensive Transformer Protection
The GE SR745-W2-P1-G1-HI-A-L-R combines multiple protection functions in one numerical relay. Differential protection provides the principal protection against internal transformer faults, while phase and ground overcurrent elements provide additional protection and backup coverage. Thermal and overexcitation functions address abnormal operating conditions that can accelerate transformer deterioration.
Two-Winding 1 A CT Configuration
The W2-P1-G1 configuration is intended for transformers with two protected windings and 1 A nominal CT inputs. Correct CT matching is essential when replacing an installed relay because the 745 family includes numerous P/G combinations for different current-transformer arrangements.
Restricted Ground-Fault Protection
The R option adds restricted ground-fault protection, allowing sensitive detection of earth faults within a defined transformer protection zone. This complements conventional differential and overcurrent protection and can improve fault-clearing performance for grounded transformer windings.

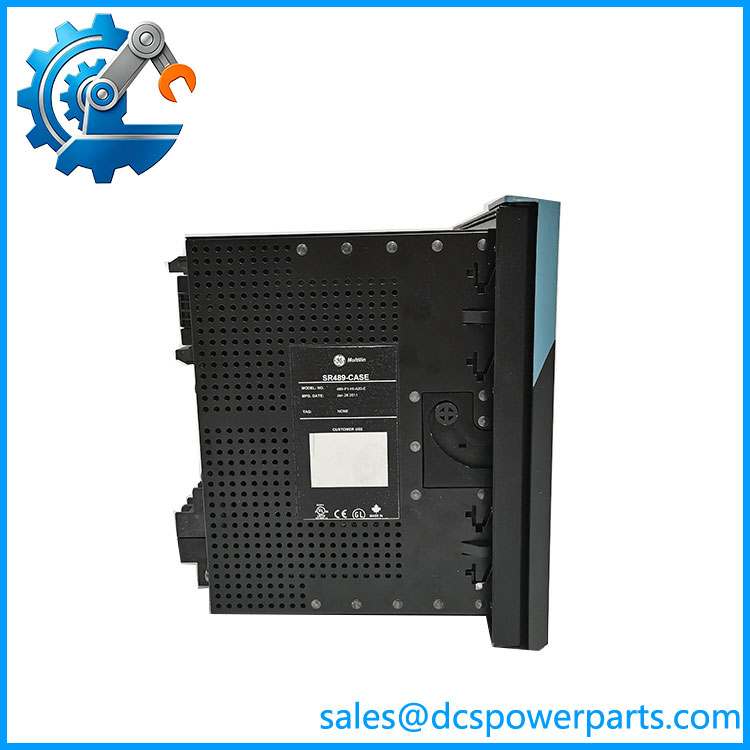

SR745-W2-P1-G1-HI-A-L-R
Analog Monitoring and Transformer Life Management
The A option provides analog input/output capability, while L adds transformer life monitoring. The relay can monitor and trend important operating variables such as temperature, voltage, power, energy and frequency, supporting condition-based maintenance and transformer asset management.
FlexLogic™ Programmable Logic
The 745 platform incorporates GE Multilin FlexLogic™ technology, allowing protection elements, digital inputs, timers and control conditions to be combined into customized logic. This is useful for transformer trip schemes, breaker interlocking, alarm handling and coordination with external plant control systems.
Event Recording and Diagnostics
The relay records operating events and provides diagnostic information that can assist engineers in analyzing protection operations. Its monitoring functions help distinguish genuine transformer faults from abnormal operating conditions or control-system issues.
DCS and SCADA Integration
The SR745-W2-P1-G1-HI-A-L-R can communicate with higher-level control systems through serial interfaces and supported protocols such as Modbus and DNP 3.0. This allows transformer measurements, alarms, relay status and protection information to be incorporated into substation automation, SCADA or industrial DCS environments.
Application Fields
GE Multilin SR745-W2-P1-G1-HI-A-L-R is primarily applied to two-winding power transformers in electrical generation, transmission, distribution and industrial power systems. Its multifunctional architecture allows one relay to handle both primary protection and extensive transformer monitoring requirements.
In thermal, hydroelectric, gas-turbine and renewable-energy power plants, the SR745-W2-P1-G1-HI-A-L-R can protect generator step-up transformers, auxiliary transformers and station-service transformers. Differential and restricted ground-fault protection provide rapid fault detection, while thermal and life-monitoring functions help operators manage transformer loading and aging.
In utility and industrial substations, the relay can protect step-down and interconnecting transformers against internal faults, external fault conditions and abnormal excitation. Its analog I/O and communications capabilities also make it suitable for integration with substation SCADA and plant DCS systems.
For oil & gas, petrochemical, metallurgy and large manufacturing facilities, the GE SR745 can provide transformer protection alongside intelligent monitoring. The programmable logic can coordinate transformer trips, breaker control, alarms and interlocks, reducing the need for extensive external relay logic. Its wide-range HI control-power option is also suitable for common industrial and substation auxiliary power systems.
Related Products
- 745-W2-P1-G1-HI — Base two-winding 1 A/1 A transformer protection configuration without the additional A/L/R options.
- 745-W2-P1-G1-HI-A-L-R-E — Closely related configuration with an additional E option; useful when matching an installed relay revision/options package.
- 745-W2-P1-G1-HI-T-H — Alternative two-winding configuration with different option selections, suitable for applications requiring different environmental or interface features.
- 745-W2-P1-G1-LO-E — Two-winding 745 relay using the LO auxiliary-power option rather than the HI configuration.
- 745-W2-P15-G1-LO-A-R — Related 745 transformer relay with a different phase-current CT configuration and LO control power.
- 745-W2-P5-G5-HI — Two-winding version configured for 5 A phase and ground current inputs.
