Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | RM3141-01-02 / CM3141-01-02 |
| Manufacturer | SAT |
| Product Type | Servo Control Terminal Board |
| Application | Servo control system signal interface |
| Input Voltage Range | 0–55 VDC |
| Frequency Range | 14–60 kHz |
| Long-Term Drift | <0.3% |
| Operating Temperature | -35°C to +180°C |
| Function | Signal termination, interface connection, control system support |
| Installation | System rack / equipment-level mounting |
| Compatibility | SAT servo control equipment platform |
| Condition | Legacy industrial automation spare part |
Product Introduction
SAT RM3141-01-02 CM3141-01-02 Product Introduction

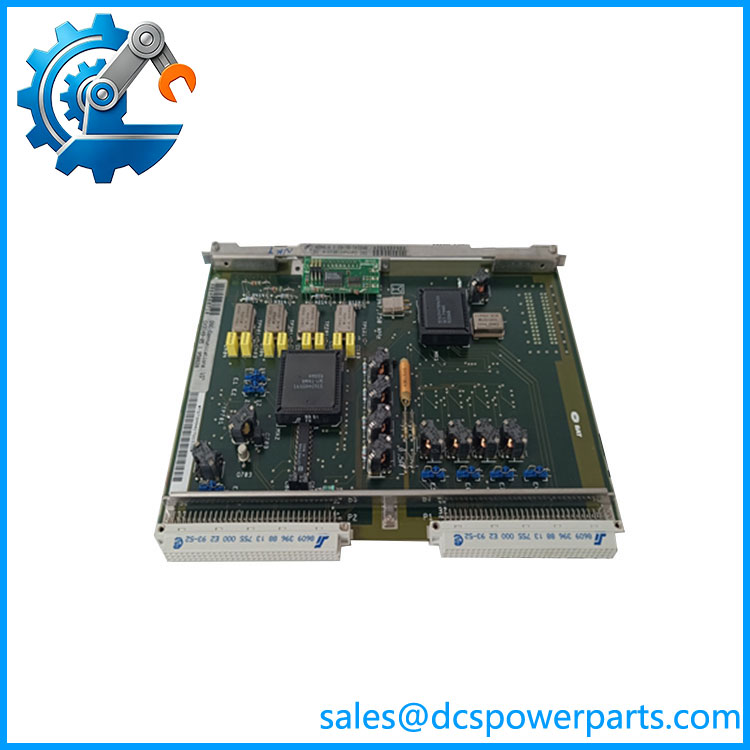

SAT RM3141-01-02 CM3141-01-02 is a servo control terminal board assembly designed for SAT motion control equipment. It provides electrical signal termination and interface support between field devices and the servo control system, helping maintain reliable communication between control electronics and connected components.
The main value of SAT RM3141-01-02 CM3141-01-02 is maintaining existing servo automation installations without unnecessary system replacement. For plants operating legacy motion platforms, having a correct spare board can reduce equipment downtime. Verify the exact system configuration and board revision before installation.
RM3141-01-02 CM3141-01-02
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A production machine can stop because of a small interface board failure. This is common in older automated equipment where servo systems have been running for many years. The controller, amplifier, and mechanical components may still be serviceable, but a damaged terminal board can interrupt encoder signals, control wiring, or machine communication.
Typical Applications
- Semiconductor Equipment – Servo axis control systems used for precision positioning mechanisms.
- Packaging Machinery – Motion control applications involving indexing tables, feeders, and automated handling systems.
- Manufacturing Automation – Replacement of terminal interface assemblies inside legacy servo-driven machines.
- Specialized Industrial Equipment – Maintenance of older motion platforms requiring original electronic assemblies.
Technical Pitfalls to Avoid
- Confirm Board Revision Before Replacement
Servo system boards may look identical while having different wiring layouts or electrical configurations. Check the complete part number and revision marking. - Inspect Signal Wiring Carefully
Incorrect terminal connections can create encoder faults, unstable servo operation, or unexpected machine behavior after replacement. - Protect Against ESD Damage
Interface boards contain sensitive electronic components. Use proper grounding procedures during handling and installation.
Related Products
- SAT CM3141-02-03
Related SAT control module variant used in similar automation applications. Verify system compatibility before substitution. - SAT CM3142-01-03
Another SAT control platform module associated with industrial control applications. Functional differences depend on the installed equipment architecture. - SAT CX3149-05
Related SAT electronic module used for interface and control functions in compatible systems. - SAT Servo Control System Assemblies
Supporting boards and interface components used within SAT motion control platforms. - Servo Amplifier Modules
Power-stage components used together with servo controllers to drive motors and motion axes. - Encoder Interface Boards
Supporting modules used for position feedback signal processing in servo applications. - Motion Controller Modules
Higher-level control units responsible for coordinating multiple servo axes. - Industrial Terminal Interface Boards
General supporting assemblies used for field wiring and equipment-level signal distribution.
