Description
Reliance Electric 604.42.01
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 604.42.01 |
| Manufacturer | Reliance Electric |
| Product Family | FlexPak 3000 |
| Product Type | Operator Interface Module / OIM keypad |
| Primary Function | Local drive operation, setup, parameter adjustment, diagnostics |
| Display Type | Graphical text display |
| Operator Input | Integrated keypad |
| Diagnostic Function | Drive status, diagnostic messages and help text |
| Parameter Access | FlexPak 3000 drive parameters |
| Local Control | Supported |
| Remote Control | Drive can be configured through terminal strip |
| Remote OIM Installation | Up to 5 m |
| Language Selection | Five languages |
| Drive Application | Regenerative and non-regenerative FlexPak 3000 drives |
| Related FlexPak Component | DCM 604.42.10 |
| Configuration Software | CS3000 may also be used for FlexPak 3000 setup |
| Communication | Dedicated FlexPak 3000 OIM connection; not a generic Ethernet HMI |
| Exact Supply Voltage | Verify from the applicable FlexPak 3000 documentation |
| Environmental Rating | Verify from the installed OIM/drive documentation |
Reliance Electric documentation identifies 604.42.01 specifically as the OIM in FlexPak 3000 wiring diagrams. The manual shows it as part of the drive control arrangement alongside the power interface, regulator, power supply, and DCM components.
Product Introduction

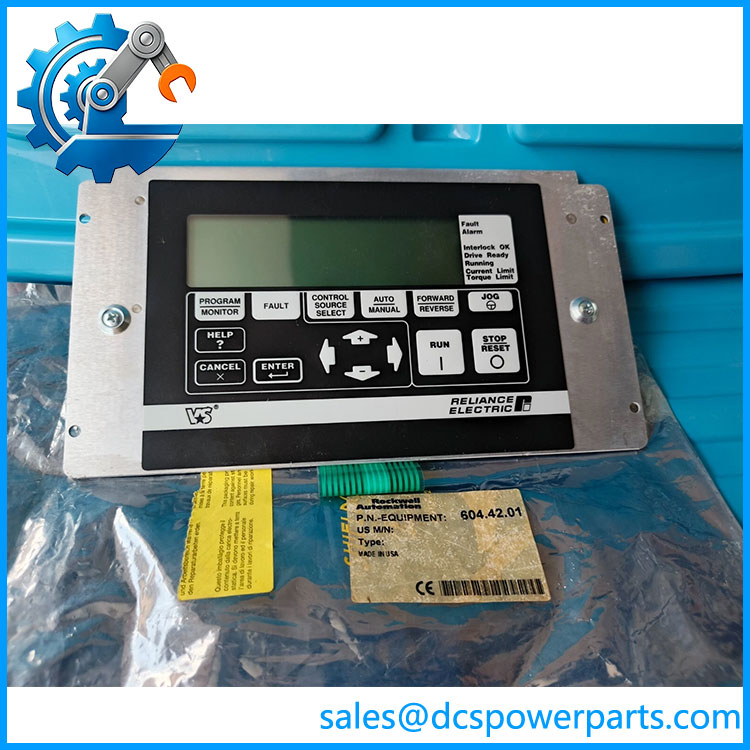

The Reliance Electric 604.42.01 is the Operator Interface Module (OIM) used with FlexPak 3000 DC drives. It provides the operator with a local graphical display and keypad for drive setup, parameter adjustment, operating status, and diagnostic information. The FlexPak 3000 architecture supports either local keypad control or remote control through the drive’s terminal strip.
The OIM is not the FlexPak 3000 regulator board or power-conversion section. It is the operator-facing interface to the drive’s control system. This distinction is important when troubleshooting: a blank or malfunctioning OIM does not automatically indicate a failed drive regulator or power section. Conversely, replacing the OIM will not correct a regulator, feedback, or power-stage fault.
604.42.01
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
The main maintenance issue with the 604.42.01 is confusing the operator interface with the drive’s control hardware. The OIM provides access to parameters and diagnostics, but the actual motor-control functions remain in the FlexPak 3000 drive electronics. The manual’s wiring diagrams show the OIM as a distinct component within the larger drive architecture.
Typical Applications
- FlexPak 3000 DC drive commissioning — Used to access setup parameters and drive operating functions.
- Local drive operation — Provides the keypad interface when local control is selected.
- Drive diagnostics — Displays status, diagnostic messages, and help information.
- Maintenance and troubleshooting — Allows technicians to inspect and modify drive parameters without connecting external programming equipment.
- Remote operator station — The OIM can be installed remotely from the drive within the documented distance limit.
Technical Pitfalls to Avoid
- Do not confuse 604.42.01 with DCM 604.42.10.
The FlexPak 3000 manual identifies these as separate components. The OIM is the operator interface; the DCM performs a different control function. - Verify the exact OIM revision before replacement.
Similar FlexPak 3000 operator-interface assemblies exist. Physical similarity alone is not enough to establish compatibility. - Preserve the existing drive parameters.
Replacing the operator panel does not mean the replacement should be configured arbitrarily. Record motor data, feedback settings, current limits, speed-loop parameters, field settings, and application-specific configuration before removing the original unit. - Check the OIM cable and connectors before condemning the keypad.
A communication or connection problem between the OIM and drive can produce symptoms that resemble a failed operator panel. - Do not use the OIM as evidence that the power stage is healthy.
A functioning display only confirms that the operator interface and at least part of the control-power path are operating. It does not prove that SCRs, regulator electronics, feedback circuits, or motor-field circuitry are healthy. - Check remote-mounting distance.
Reliance documentation specifies remote OIM installation up to approximately 5 m. Cable routing and installation should remain within the applicable FlexPak requirements.
Related Products
- Reliance Electric DCM 604.42.10 — FlexPak 3000 control module shown alongside the 604.42.01 OIM; it is a drive-control component rather than an operator keypad.
- Reliance Electric 604.42.00 — Related FlexPak 3000 OIM designation appearing in technical documentation; verify revision and application before substitution.
- Reliance Electric 0-58772-310 — Another FlexPak 3000 Operator Interface Module designation; compatibility should be checked against the exact drive generation and hardware revision.
- Reliance Electric 802273-13T — Related FlexPak 3000 operator-interface panel designation; not automatically interchangeable with 604.42.01.
- Reliance Electric 810.89.00 — FlexPak 3000 power-supply board; it performs a power-supply function rather than operator-interface functions.
- Reliance Electric 58770-310 — FlexPak 3000 regulator board; this is part of the drive control electronics, not the operator interface.
- Reliance Electric 0-58719-32 — FlexPak 3000 field-supply/current-regulator board used for the motor-field circuit; it has a substantially different function from the 604.42.01 OIM.
- Reliance Electric 0-58774 — FlexPak 3000 network communication board; intended for communication functions rather than local operator control.
Procurement and Replacement Note
For Reliance Electric 604.42.01, verify the complete OIM identification, FlexPak 3000 drive model, hardware revision, OIM cable/connector arrangement, and existing parameter configuration before approving a replacement.
The most important point is functional: 604.42.01 is the FlexPak 3000 Operator Interface Module, not the drive regulator or power board. The available FlexPak documentation confirms its role in local operation, diagnostics, and parameter adjustment, including remote mounting up to approximately 5 m.
For a field replacement, I would record the existing OIM’s displayed configuration and the drive’s critical parameters before disconnecting it. That prevents a common commissioning problem where the replacement keypad works electrically but the drive has lost or received incorrect application settings.
