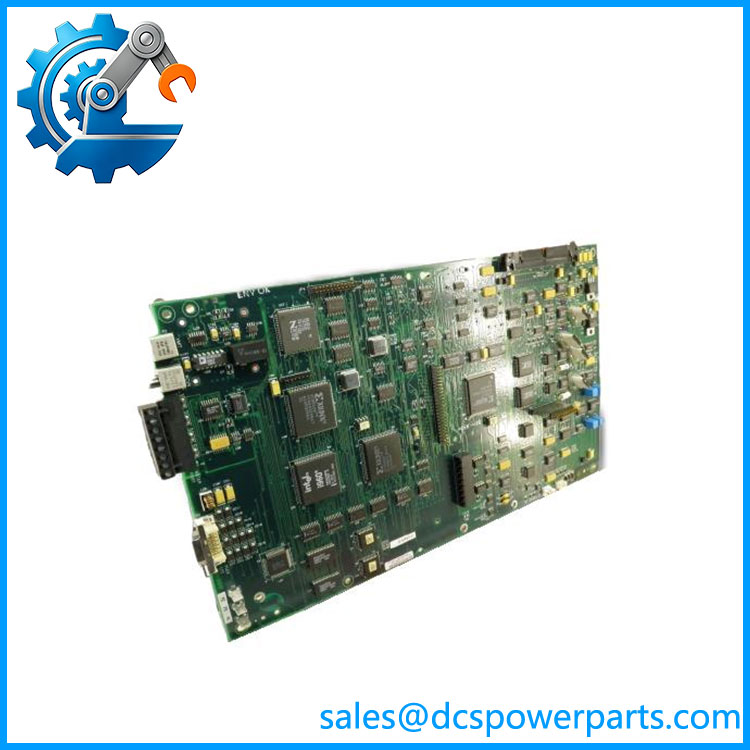

  • Model: 0-60063-1
  • Brand: Reliance Electric / ABB Reliance
  • Series: AutoMax PMI / SA3100 AC Power Module
  • Core Function: Controls and regulates SA3100 AC drive power modules by executing motor control algorithms and communicating with AutoMax control components.
  • Product Type: Drive Regulator Board / PMI Control PCB
  • Key Specs:
    • Designed for SA3100 AC Power Modules
    • Dual fiber optic communication ports
    • AutoMax UDC interface support
Add To Quote
Category: SKU: Reliance 0-60063-1

Description

Key Technical Specifications

Parameter Value
Manufacturer Reliance Electric / ABB Reliance
Model 0-60063-1
Product Type AutoMax PMI Regulator Board
Series SA3100 AC Power Module
System Platform AutoMax Distributed Power System (DPS)
Main Function AC drive regulation and motor control processing
Control Function Motor control algorithms and drive monitoring
Communication Interface Fiber optic communication
Fiber Ports 2
Controller Link AutoMax UDC module interface
I/O Interface Flex I/O connector
Feedback Interface Resolver and drive I/O connections
Analog Interface Meter port terminal connection
Wire Specification 14–22 AWG twisted pair for meter connections
Mounting SA3100 power module assembly
Weight Approx. 1.69 lb
Application Variable frequency AC motor drive control



Product Introduction



Reliance Electric 0-60063-1 Overview

The Reliance Electric 0-60063-1 is a PMI Regulator Board designed for the SA3100 AC Power Module family used in AutoMax Distributed Power Systems. The board manages drive regulation functions, executes motor control algorithms, monitors drive operation, and exchanges data with AutoMax UDC controllers through fiber optic communication.

The Reliance Electric 0-60063-1 remains relevant in legacy drive installations where replacing the complete power system is not practical. Maintaining the original regulator board allows plants to preserve existing motor control configurations. Verify SA3100 power module compatibility, board revision, firmware requirements, and fiber communication settings before installation.

0-60063-1

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)



Engineering Pain Point

A production line motor suddenly loses speed regulation. The motor itself tests correctly. The power section appears normal. The failure is traced back to the regulator board controlling the inverter section.

This is a common situation with older variable frequency drive systems. The Reliance 0-60063-1 is part of the control layer that determines how the SA3100 power module responds to speed commands, feedback signals, and protection conditions.



Typical Applications

  • Steel Processing Lines – Variable speed motor control for rollers, conveyors, and process equipment.
  • Paper Manufacturing Systems – Drive regulation for web handling, winding, and tension control applications.
  • Material Handling Equipment – Motor speed regulation for large conveyor and lifting systems.
  • Industrial Manufacturing Machinery – AC motor control applications requiring AutoMax SA3100 drive platforms.



Technical Pitfalls to Avoid

  1. Compatibility Verification

    The 0-60063-1 is not a universal drive control board. Confirm the exact AC Power Module model before replacement.

  2. Fiber Optic Communication Checks

    The board communicates with AutoMax components through fiber links. Inspect fiber condition, connector cleanliness, and correct channel assignment before assuming board failure.

  3. Parameter and Drive Configuration Backup

    Hardware replacement does not restore drive parameters. Save motor data, tuning parameters, and AutoMax configuration before removing the existing board.

Field note: Before replacing a PMI regulator board, record LED states, fiber connections, drive parameters, board revision, and connected I/O wiring. Older drive systems often depend on site-specific adjustments that are not documented in standard manuals.



Related Products

  • Reliance Electric 0-60063-1-A
    Revised version of the PMI regulator board. Functionally related to the 0-60063-1 but requires revision compatibility confirmation before substitution.
  • Reliance Electric 0-60063-2
    Related AutoMax PMI regulator board variant used in drive systems. Application depends on the specific power module configuration.
  • Reliance Electric 0-60021-2
    AutoMax PMI processor module used for control processing functions within the drive architecture.
  • Reliance Electric 0-60029-1
    AutoMax PMI AC parallel interface board used for drive communication and interface functions.
  • Reliance Electric 0-60031-4
    AutoMax PMI I/O resolver drive module used for feedback and drive interface applications.
  • Reliance Electric AC Power Module
    Drive power platform directly associated with the 0-60063-1 regulator board.
  • Reliance Electric AutoMax UDC Module
    Controller module communicating with PMI boards through the AutoMax architecture.
  • ABB Reliance AutoMax DPS System
    Distributed drive control platform where PMI boards provide regulation, feedback processing, and motor control functions.
  • Reliance GV3000 Drive Family
    Related Reliance variable frequency drive platform used in industrial motor applications.
