Description
Product Overview

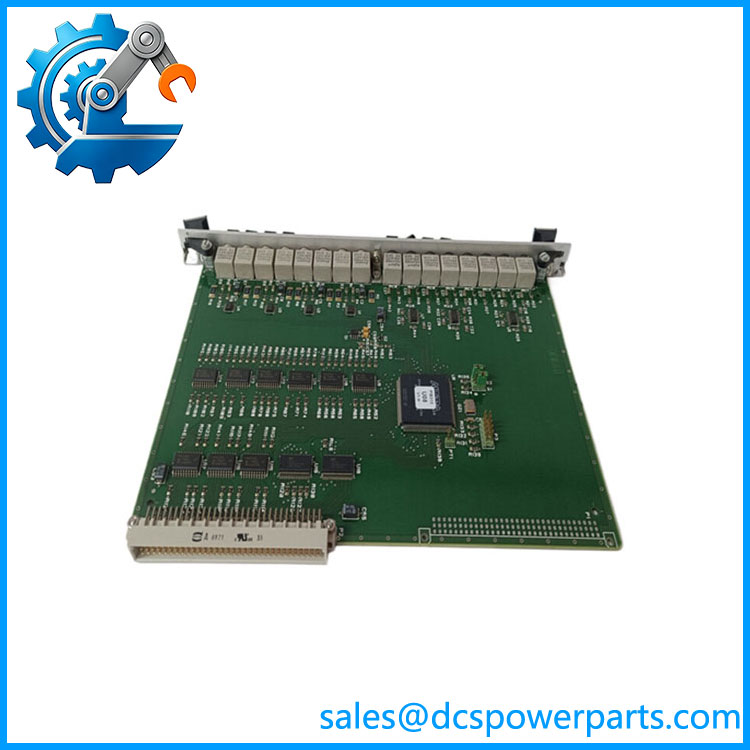

ALSTOM PIB310 3BHB0190 is an industrial interface PCB designed for use in complex power conversion and automation equipment. As part of the PIB family, the module provides signal routing, interface adaptation, and communication functions between different layers of a control system.
The ALSTOM PIB310 3BHB0190 is typically installed inside drive control cabinets where low-level control electronics must exchange information with power converter assemblies. The board supports the connection between processing units, I/O assemblies, and power control circuits, helping maintain accurate command and feedback transmission throughout the system.
Typical architecture:
Control Processor / DCS Controller → PIB310 3BHB0190 → Power Interface Section → Converter / Motor System
The PIB310 3BHB0190 is associated with ALSTOM/Converteam industrial systems used in applications requiring coordinated control of large electrical loads. These include medium-voltage motor drives, industrial process equipment, marine propulsion systems, and power conversion installations.
Unlike a standard PLC I/O module, the PIB310 is a dedicated system interface board. Its operation depends on the host platform, rack configuration, firmware environment, and connected modules. Replacement requires confirmation of the exact PCB revision, connector layout, and system compatibility.
For maintenance teams supporting legacy ALSTOM drive systems, keeping a tested spare PIB310 can reduce recovery time after unexpected interface faults. However, before installation, engineers should verify the original board marking, hardware revision, and associated cabinet documentation. Similar PIB-series boards may not be interchangeable even when they share the same general function.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ALSTOM / Converteam |
| Model | |
| Part Number | 3BHB0190 |
| Product Type | Power Interface Board / Adapter Module |
| Application | Industrial power conversion and automation systems |
| Series | PIB Interface Board Family |
| Function | Signal interface, control communication, system adaptation |
| Input/Output Interface | Digital and analog signal handling (system dependent) |
| Communication | Backplane/system communication (configuration dependent) |
| Supply Voltage | 24 VDC logic supply (typical) |
| Mounting | Rack-mounted PCB assembly |
| Operating Temperature | Approx. -20°C to +70°C |
| Protection Level | Industrial cabinet environment |
| Typical Use | MV drives, converter systems, industrial controllers |
Specifications are based on available ALSTOM / 3BHB0190 references.
Main Features and Advantages
Control and Power Interface Function
The primary role of the ALSTOM 3BHB0190 is providing an interface layer between control electronics and power conversion equipment.
Typical functions include:
- Signal transfer between modules
- Interface adaptation
- Control feedback routing
- System communication handling
This allows different sections of the drive architecture to exchange operating information correctly.
PIB310 3BHB0190
Designed for Power Conversion Applications
The is commonly associated with industrial systems where accurate control of high-power electrical equipment is required.
Typical applications include:
- Medium-voltage drives
- Large motor control systems
- Converter cabinets
- Industrial electrical systems
These systems require stable communication between control processors and power electronics.
Industrial Rack-Based Design
The modular PCB construction allows installation within existing ALSTOM control cabinets.
Maintenance advantages:
- Field replacement capability
- Modular troubleshooting
- Reduced system downtime
Before replacement, the board position and connector arrangement should always be documented.
Legacy ALSTOM System Support
Many ALSTOM/Converteam drive platforms remain in operation due to long equipment service lifecycles.
The supports continued operation of installed systems where complete control platform replacement is not practical.
Common fault symptoms may include:
- Interface communication alarms
- Drive startup failures
- Missing feedback signals
- Control cabinet diagnostic faults
Engineering Replacement Considerations
Before replacing a board, verify:
- Complete part number
- PCB revision
- Rack position
- Connected modules
- Power supply condition
- Control software configuration
A replacement PCB should be tested within the complete drive system rather than evaluated only as an individual board.
Application Scenarios
Medium Voltage Drive Systems
Used for:
- Large industrial motors
- Pumps and compressors
- Process equipment
Marine Propulsion
Applications:
- Electric propulsion drives
- Ship power conversion systems
Industrial Automation
Used in:
- Manufacturing plants
- Process control systems
- Heavy industry equipment
Energy Conversion Systems
Applications:
- Power converters
- Industrial electrical control cabinets
Related Components
| Model | Function |
|---|---|
| PIB1201A 3BEC0067 | Power interface board from related ALSTOM PIB family |
| PIB102A 3BEB0180 | Communication/interface PCB module |
| PIB100G 3BEE0226 | Related PIB-series interface board |
| MV7000 Series | ALSTOM/Converteam medium-voltage drive platform |
| ALSPA Control Systems | Industrial automation and drive control platform |
Engineer’s Guide: Field Pitfalls
⚠️ Do Not Substitute PIB Boards Without Verification
PIB-series boards may look similar but have different:
- Connector assignments
- Firmware
- Backplane functions
- System roles
, PIB100G, and PIB102A should not be treated as direct replacements without compatibility verification.
⚠️ Check Power Supply Quality
Interface boards can fail due to:
- DC supply instability
- Electrical noise
- Grounding problems
- Converter-side faults
Always verify the cabinet power supply before installing a replacement.
⚠️ Inspect Connected Hardware
A failure may be secondary to:
- Power module faults
- Communication wiring issues
- Backplane problems
- Damaged field interfaces
⚠️ Preserve System Configuration
Before replacement record:
- Board position
- Parameter settings
- Controller configuration
- Alarm history
⚠️ Refurbished Board Testing Requirements
A proper evaluation should include:
- PCB visual inspection
- Power rail verification
- Connector inspection
- Signal interface testing
- Backplane communication test
- System startup verification
- Extended operation test
A board that powers on does not confirm correct system operation.
Frequently Asked Questions
What is ALSTOM 3BHB0190?
It is a Power Interface Board / Adapter Module used in ALSTOM and Converteam industrial drive and automation systems.
Is a PLC CPU module?
No. It is a dedicated interface PCB used inside power conversion and control architectures.
What systems use ?
It is commonly associated with ALSTOM/Converteam drive and automation platforms, including MV drive-related systems.
Can replace PIB102A or PIB100G?
Not directly. These boards belong to related families but have different hardware functions and compatibility requirements.
What should be checked before replacement?
Verify:
- Model:
- Part number: 3BHB0190
- PCB revision
- Rack position
- Backplane compatibility
- Power supply condition
- System configuration
