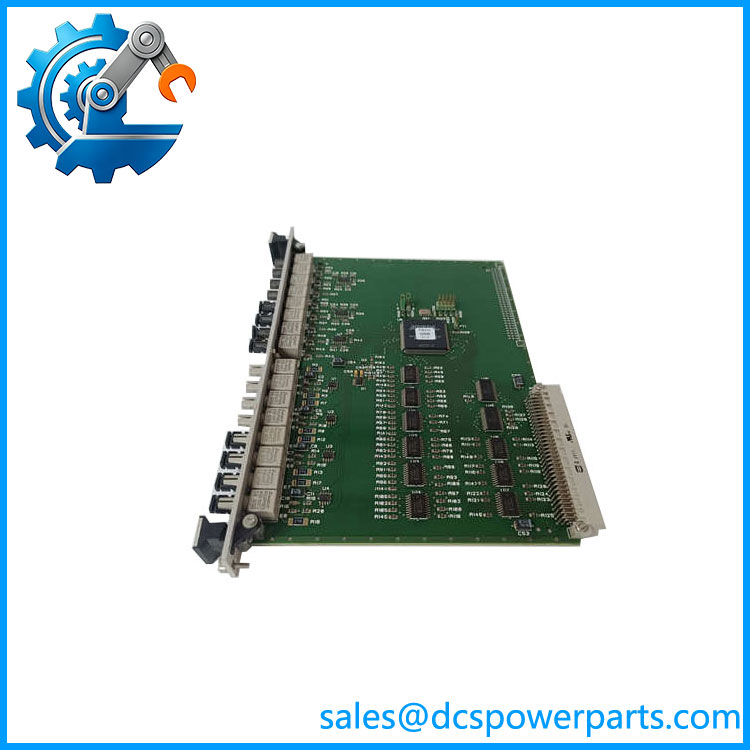

ALSTOM PIB1201A 3BEC0067 is a Power Interface Board designed for industrial power conversion and drive control applications. As part of the PIB1200 family, the module provides the electrical interface layer required between processor/control assemblies and power-stage components. It handles signal conditioning, interface adaptation, and power-related communication functions within complex converter architectures.
The ALSTOM PIB1201A 3BEC0067 is typically installed in systems where precise coordination between digital control electronics and high-power electrical equipment is required. The board receives control and feedback signals from the automation controller, conditions these signals, and transfers the information to the appropriate power electronics sections.
Typical system architecture:
Control CPU / Drive Controller → PIB1201A 3BEC0067 → Power Converter / Inverter Section → Motor or Electrical Load
The PIB1201A plays an important role in maintaining reliable communication between the control layer and power layer. In medium-voltage drives and industrial converter systems, this separation helps protect sensitive control circuits from electrical disturbances generated by high-energy switching components.
Typical applications include:
- Medium-voltage motor drives
- Industrial frequency converters
- Power conversion systems
- Marine propulsion drives
- Energy conversion equipment
For replacement projects, engineers should confirm the exact hardware revision, rack location, firmware compatibility, and associated controller configuration. The PIB1201A is part of a larger control architecture, and replacing the board without verifying connected modules may result in communication faults or incorrect drive operation.
A failed interface board may also be affected by external conditions such as power supply instability, excessive electrical noise, damaged field wiring, or faults in connected power modules. Proper system-level troubleshooting is recommended before replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ALSTOM / Converteam |
| Model | PIB1201A |
| Part Number | 3BEC0067 |
| Product Type | Power Interface Board |
| Series | PIB1200 Series |
| Function | Power interface and signal processing |
| Application | Industrial power conversion systems |
| Signal Interface | Analog and digital signal processing |
| Communication Interface | System-dependent |
| Mounting Type | Rack-mounted PCB |
| Operating Voltage | System dependent |
| Operating Temperature | Approx. -20°C to +70°C |
| PCB Type | Industrial control circuit board |
| Typical Use | MV drives, converters, propulsion systems |
Specifications are based on available / 3BEC0067 references.
Main Features and Advantages
PIB1201A
Power and Control Interface Function
The primary role of the ALSTOM 3BEC0067 is managing the connection between the control electronics and power electronics sections.
The board supports:
- Control signal transmission
- Feedback signal handling
- Electrical isolation functions
- Interface coordination
This allows the drive controller and power stage to operate as a coordinated system.
Designed for Industrial Power Conversion Systems
The is used in applications where power electronics require accurate control and signal management.
Typical equipment includes:
- Medium-voltage drives
- Converter systems
- Motor control platforms
- Industrial electrical systems
These environments require reliable communication between low-voltage control circuits and high-energy switching equipment.
Signal Conditioning Capability
The board processes signals exchanged between different parts of the control architecture.
Common functions include:
- Signal adaptation
- Input/output management
- Electrical interface conversion
- Protection-related signal handling
This reduces the risk of direct electrical interaction between sensitive control electronics and power circuits.
Support for Legacy ALSTOM Drive Systems
Many ALSTOM/Converteam power conversion systems remain installed in industrial facilities.
Maintaining spare boards helps support:
- Existing drive systems
- Long-service equipment
- Critical production assets
Replacement and Maintenance Considerations
Before installing a replacement , verify:
- Exact part number
- PCB revision
- Rack position
- Connected modules
- Drive firmware
- Parameter backup
A physically compatible board may still require configuration verification before returning the system to operation.
Application Scenarios
Medium Voltage Drive Systems
Used for:
- Large motor control
- Pump and compressor drives
- Industrial process equipment
Marine Propulsion Systems
Applications:
- Electric propulsion converters
- Shipboard power systems
Industrial Power Conversion
Used in:
- Inverters
- Converter cabinets
- Energy systems
Heavy Industry
Typical industries:
- Steel production
- Mining
- Petrochemical
- Power generation
Related Components
| Model | Function |
|---|---|
| PIB201A 3BEC0067 | Related PIB interface board variant |
| PIB102A 3BEB0180 | Communication/interface PCB |
| PIB310 3BHB0190 | Adapter/interface module |
| ALSPA MV7000 Drive System | Medium-voltage drive platform |
| Converteam Power Conversion Systems | Industrial converter platforms |
Engineer’s Guide: Field Pitfalls
⚠️ Confirm Exact Board Revision
PIB boards may have similar appearance but different functions.
Check:
- Part number
- Hardware revision
- Connector layout
- Firmware compatibility
⚠️ Inspect Power Supply Quality
Interface boards can fail due to:
- Voltage spikes
- DC supply instability
- Grounding problems
- Electrical noise
Always verify incoming power before installing a replacement.
⚠️ Check Connected Power Modules
A PIB failure may be caused by faults in connected equipment:
- Gate drive circuits
- Converter modules
- Feedback sensors
- Communication wiring
⚠️ Preserve Existing Parameters
Before replacement record:
- Controller settings
- Drive configuration
- Communication parameters
- Alarm history
⚠️ Refurbished Board Testing Requirements
A proper evaluation should include:
- PCB visual inspection
- Power rail verification
- Connector inspection
- Signal interface testing
- Communication verification
- System integration test
- Extended operation test
A board that powers up does not confirm correct drive operation.
Frequently Asked Questions
What is ALSTOM 3BEC0067?
It is a Power Interface Board used in ALSTOM/Converteam industrial power conversion and drive systems.
Is a PLC module?
No. It is a dedicated power electronics interface board.
Where is used?
It is commonly associated with industrial drive and converter platforms, including ALSPA-related power systems.
What should be checked before replacement?
Verify:
- Model number:
- Part number: 3BEC0067
- Hardware revision
- Rack position
- Connected modules
- Firmware compatibility
- Power supply condition
