NI cFP-CB-1 Terminal Base | Compact FieldPoint I/O Connection

Product Introduction

The National Instruments cFP-CB-1 is a Compact FieldPoint terminal base used to provide the physical wiring interface for compatible Compact FieldPoint I/O modules. Unlike modules such as the cFP-AI-100, cFP-AO-210, cFP-DI-304, or cFP-DO-403, the cFP-CB-1 is not itself an analog or digital signal-processing module. Its purpose is to provide the connection point between field wiring and the installed FieldPoint I/O hardware.

The cFP-CB-1 is therefore an important part of the Compact FieldPoint installation architecture. Field devices are wired to the terminal base, while the associated I/O module provides the actual signal conditioning and conversion. This arrangement allows the I/O electronics to be replaced without necessarily rewiring the complete field circuit, provided the replacement hardware uses the same compatible terminal-base arrangement.

For maintenance work, the distinction between the terminal base and I/O module is important. A cFP-CB-1 should not be purchased as a replacement for a failed analog or digital I/O module. Conversely, installing the correct I/O module on an incompatible terminal base can prevent proper operation or create wiring/configuration problems.

Technical Specifications

Main Features and Engineering Considerations

Field Wiring Interface

The primary role of the cFP-CB-1 is to provide the wiring interface between field devices and a compatible Compact FieldPoint I/O module. The terminal base is therefore part of the physical I/O infrastructure rather than a programmable or signal-processing device.

Modular FieldPoint Architecture

Compact FieldPoint separates the I/O electronics from the field-wiring interface. This is useful during maintenance because an I/O module can potentially be replaced while the field wiring remains terminated at the base.

The actual signal characteristics—such as 24 VDC digital input, relay output, ±10 V analog input, or 0–10 V analog output—are determined by the I/O module installed on the terminal base.

Mechanical Compatibility

A terminal base should be matched to the exact Compact FieldPoint module and system configuration. Physical similarity alone is not sufficient evidence of compatibility.

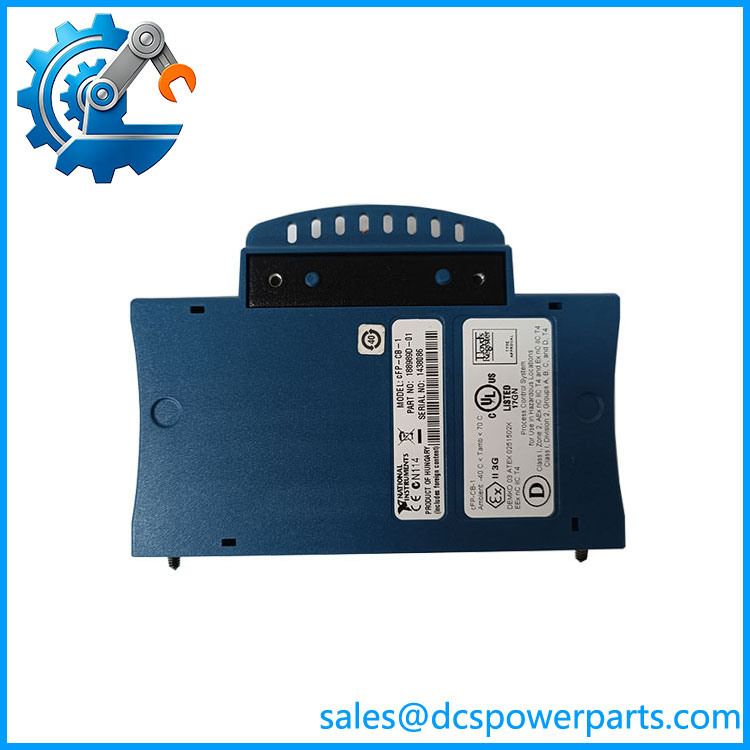

CFP-CB-1

Application Scenarios

The NI cFP-CB-1 may be encountered in:

• Compact FieldPoint distributed I/O systems
• Industrial automation cabinets
• Machine-control systems
• Process monitoring
• Test and measurement systems
• Laboratory automation
• Legacy NI control installations
• Remote I/O panels

Engineer’s Guide: Field Pitfalls

⚠️ cFP-CB-1 is not an I/O module.
It does not perform analog conversion, digital input processing, or output switching.

⚠️ Match it to the I/O module.
The terminal base must be compatible with the particular Compact FieldPoint I/O hardware being installed.

⚠️ Inspect terminals carefully.
On older equipment, loose terminals, oxidation, damaged screw terminals, and cracked plastic can cause intermittent I/O faults that may initially appear to be module failures.

⚠️ Do not infer signal ratings from the terminal base.
The voltage, current, isolation, and signal type come from the attached I/O module.

⚠️ Check the complete assembly.
When replacing legacy FieldPoint hardware, verify the terminal base, I/O module, controller/network interface, and overall FieldPoint configuration together.

Frequently Asked Questions

What is NI cFP-CB-1?
It is a Compact FieldPoint terminal base used to provide field wiring and the physical interface for compatible Compact FieldPoint I/O modules.

Is cFP-CB-1 an analog input or output module?
No. It is a terminal base, not a signal-processing I/O module.

Does cFP-CB-1 perform analog-to-digital conversion?
No. The associated I/O module performs the signal conversion.

What determines the field signal type?
The installed Compact FieldPoint I/O module determines whether the system handles analog voltage, analog current, digital input, relay output, or another signal type.

What should be checked before purchasing?

1. cFP-CB-1 model
2. Exact Compact FieldPoint I/O module
3. Mechanical compatibility
4. Terminal arrangement
5. Field wiring condition
6. Terminal condition
7. Controller/network architecture
8. Existing FieldPoint configuration
9. Mounting arrangement
10. Complete system functional test

Procurement note: If you are replacing a cFP-CB-1, verify the exact I/O module that was installed on it. For this component, terminal compatibility and physical condition are more important than conventional electrical specifications, because the cFP-CB-1 itself is primarily a field-wiring interface.
